8281SRi10.00

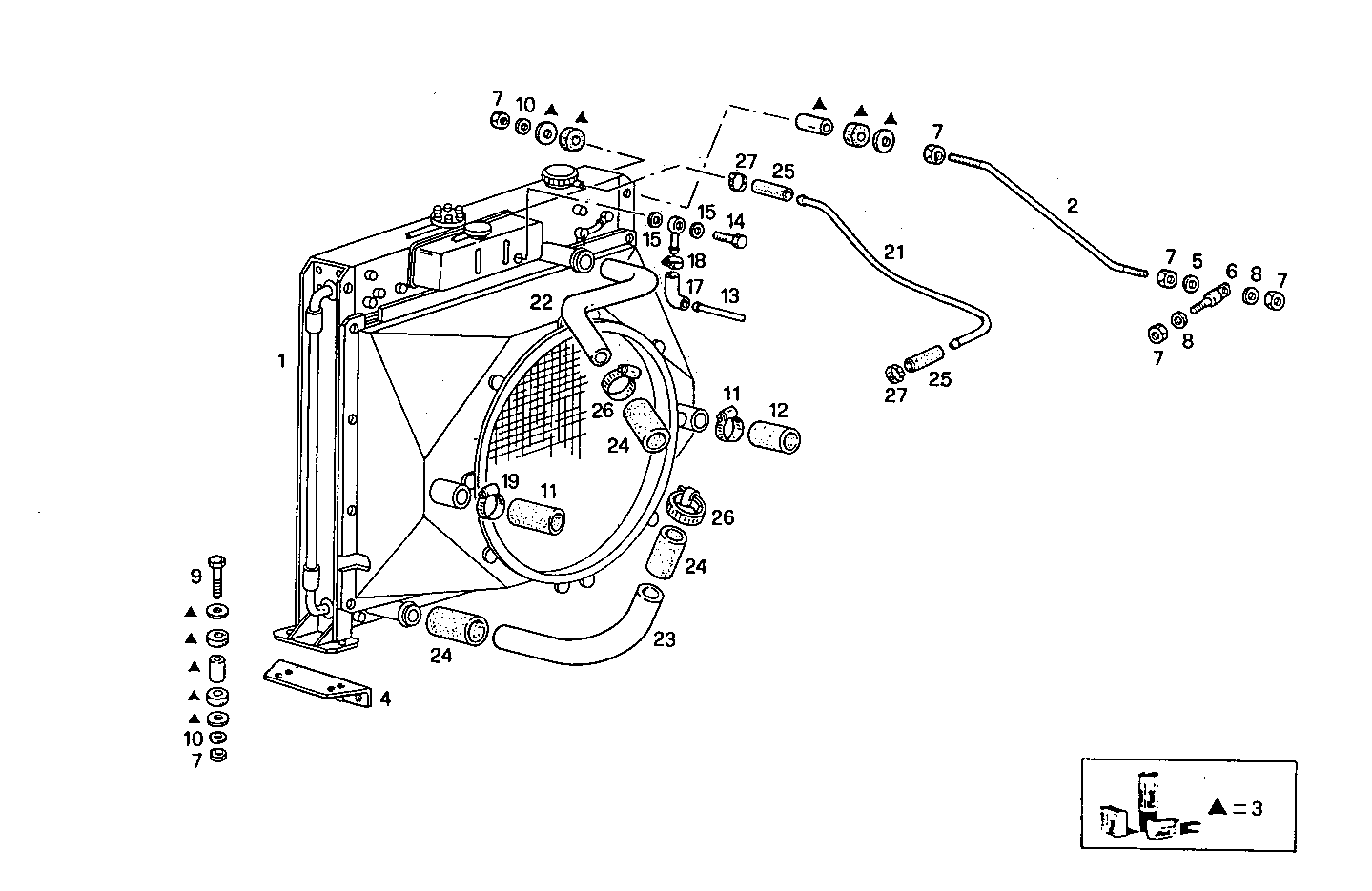

A22480001 RADIATOR 2 CIRCUITS AIR/WATER - loose

Iveco/FPT RADIATOR 2 CIRCUITS AIR/WATER

Item Part number Description
1 8009970 WATER RADIATOR ASSY
2 8108930 TIE ROD
3 8090977 KIT-RADIATOR A.S. COMPLETE
4 8112940 SUPPORT
5 14496701 WASHER Ø13X24 MM
6 8108056 PIN
7 16101511 HEXAGON NUT M12X1,25
8 11190771 WASHER Ø12X24X2,8 MM
9 15541321 HEXAGON BOLT M12X1,25X75 MM
10 11190879 SPRING WASHER Ø12X30X3,0 MM
11 4717847 RUBBER SLEEVE
12 10138787 RUBBER SLEEVE
13 8109991 WATER PIPE
14 4864082 BANJO BOLT M12X1,5X25 MM
15 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
16 8109997 PIPE SOCKET
17 19061487 RUBBER SLEEVE
18 12178990 CLIP
19 12174190 CLIP Ø40-60 MM
20 4551493 THREADED UNION
21 8108913 WATER PIPE
22 8108088 WATER PIPE
23 8107755 WATER PIPE
24 8107383 RUBBER SLEEVE Ø60 MM
25 4927825 WATER HOSE
26 12174890 CLIP Ø62-82 MM
27 12173690 CLIP Ø14-22 MM
