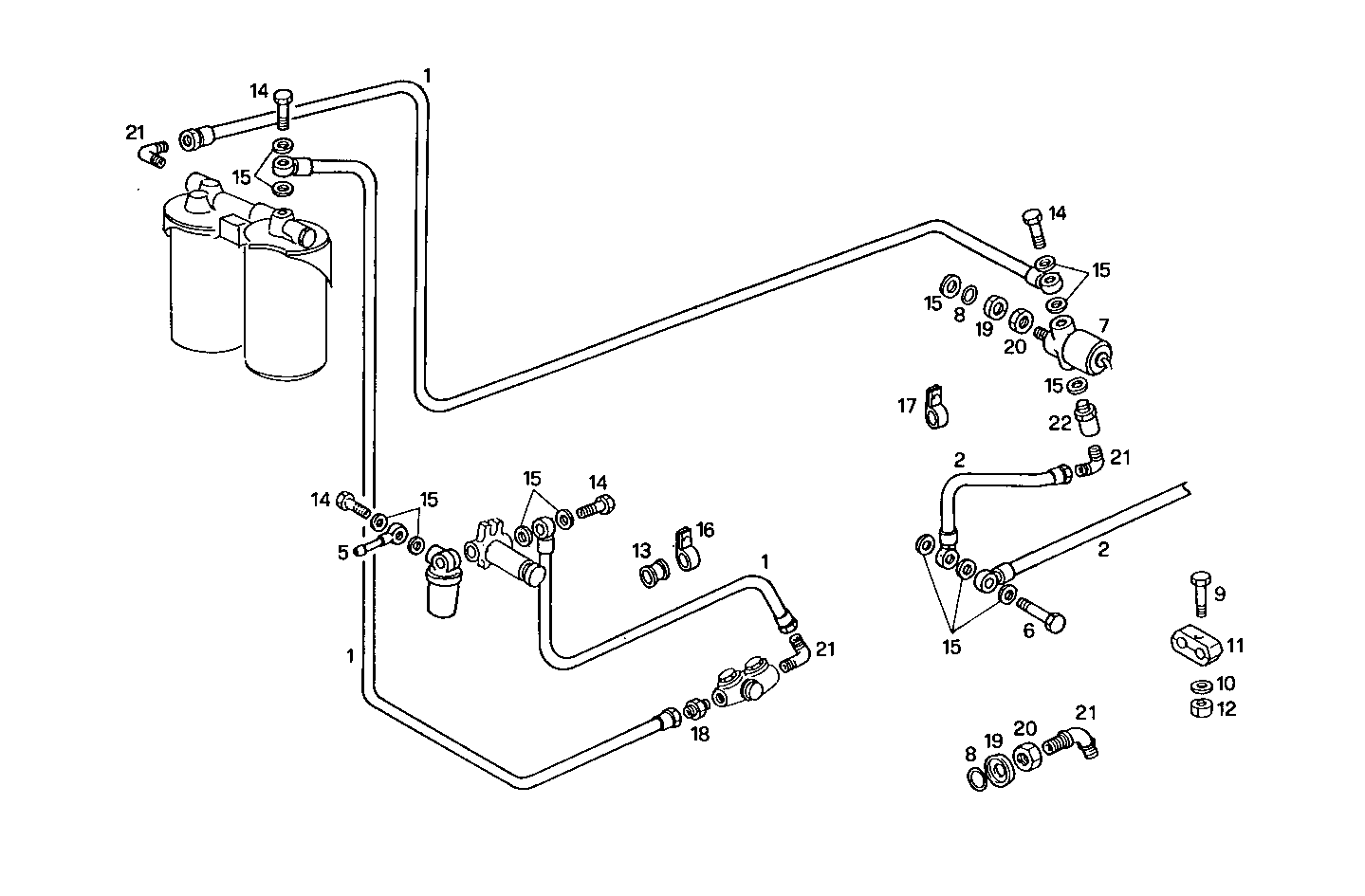

| Item |
Part number |
Description |
|
1 |
8019053 |
FLEXIBLE FUEL PIPE L=900 MM |
|
2 |
8019054 |
HOSE L=300 MM |
|
5 |
98404882 |
PIPE SOCKET Ø8 MM |
|
6 |
61608319 |
SCREW CONNECTOR |
|
7 |
8017500 |
ELECTROVALVE [from 04-94] |
|
8 |
17281581 |
O-RING Ø12,37X2,62 MM |
|
9 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
10 |
17094914 |
WASHER 8x16 |
|
11 |
8010505 |
CLAMP Ø16 MM |
|
12 |
17037931 |
HEXAGON NUT M8X1,25 |
|
13 |
4757122 |
RUBBER PAD |
|
14 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
15 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
16 |
8019420 |
CLIP |
|
17 |
4763804 |
FASTENING BRACKET |
|
18 |
16500214 |
THREADED UNION M14X1,5/M16X1,5 |
|
19 |
8006339 |
CAP |
|
20 |
16508711 |
NUT M14X1,5 [from 05-92] |
|
21 |
8006222 |
PIPE SOCKET [from 05-92] |
|
22 |
8102465 |
VALVE |
