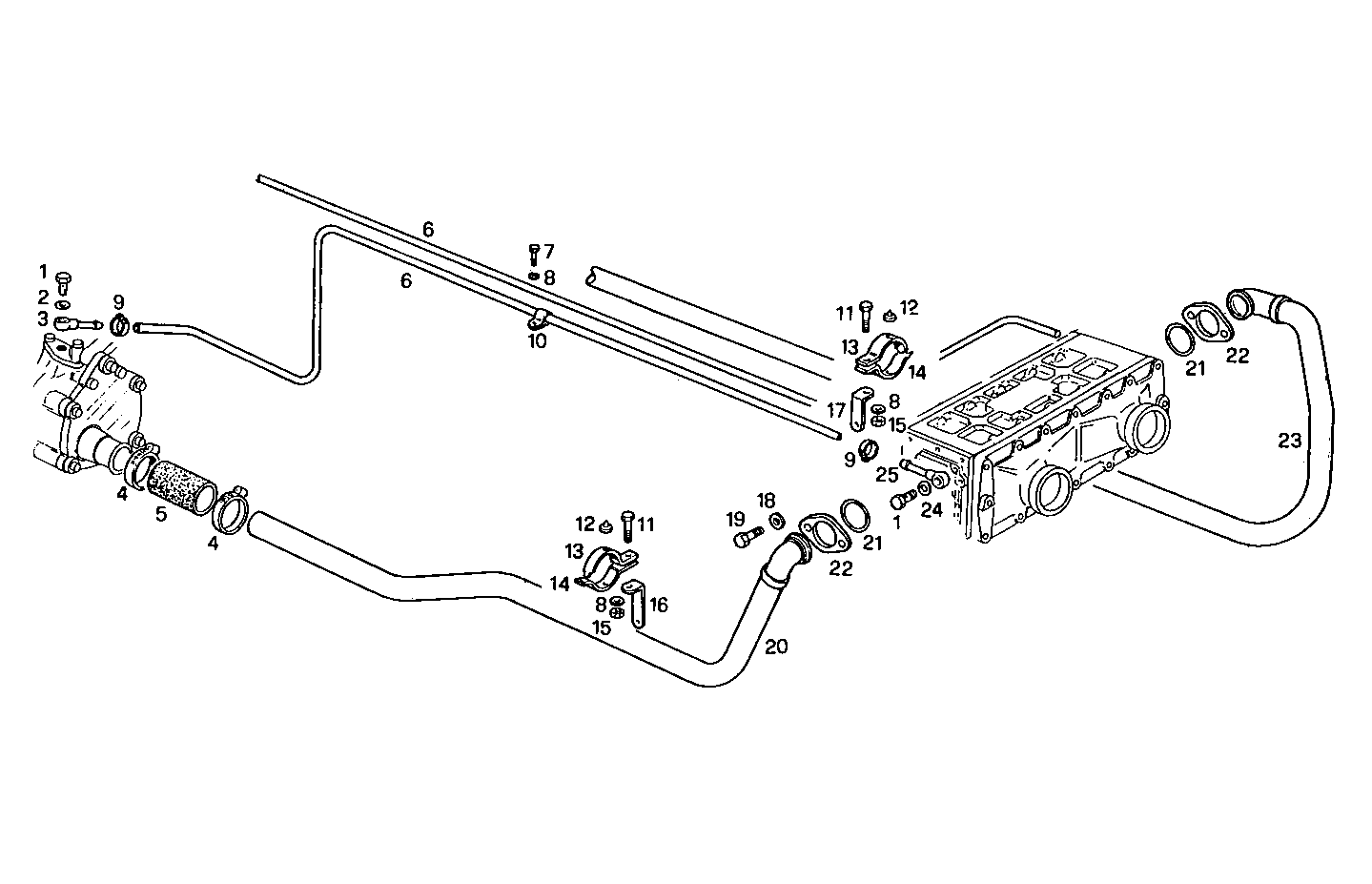

| Item |
Part number |
Description |
|
1 |
8009696 |
SCREW CONNECTOR M12X1,5X25 |
|
2 |
4858606 |
GASKET Ø10X14X1 MM |
|
3 |
4935134 |
OIL LINE |
|
4 |
98490783 |
CLIP Ø55-65 MM |
|
5 |
8106646 |
RUBBER SLEEVE |
|
6 |
8017220 |
WATER HOSE |
|
7 |
16605424 |
SCREW M8X16 MM (8.8) |
|
8 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
9 |
18087991 |
CLIP Ø8/16 MM |
|
10 |
17316790 |
CLIP |
|
11 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
12 |
1366290 |
RUBBER LUG |
|
13 |
8113298 |
CLAMP |
|
14 |
8113299 |
CLAMP |
|
15 |
17037931 |
HEXAGON NUT M8X1,25 |
|
16 |
8016876 |
RETAINER |
|
17 |
8016877 |
RETAINER |
|
18 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
19 |
17495034 |
SPRING WASHER M12X1,75X25 |
|
20 |
8014621 |
WATER PIPE |
|
21 |
17289981 |
O-RING Ø53,57X3,53 MM |
|
22 |
8108682 |
FLANGE |
|
23 |
8014648 |
WATER PIPE |
|
24 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
25 |
98405514 |
PIPE SOCKET |
