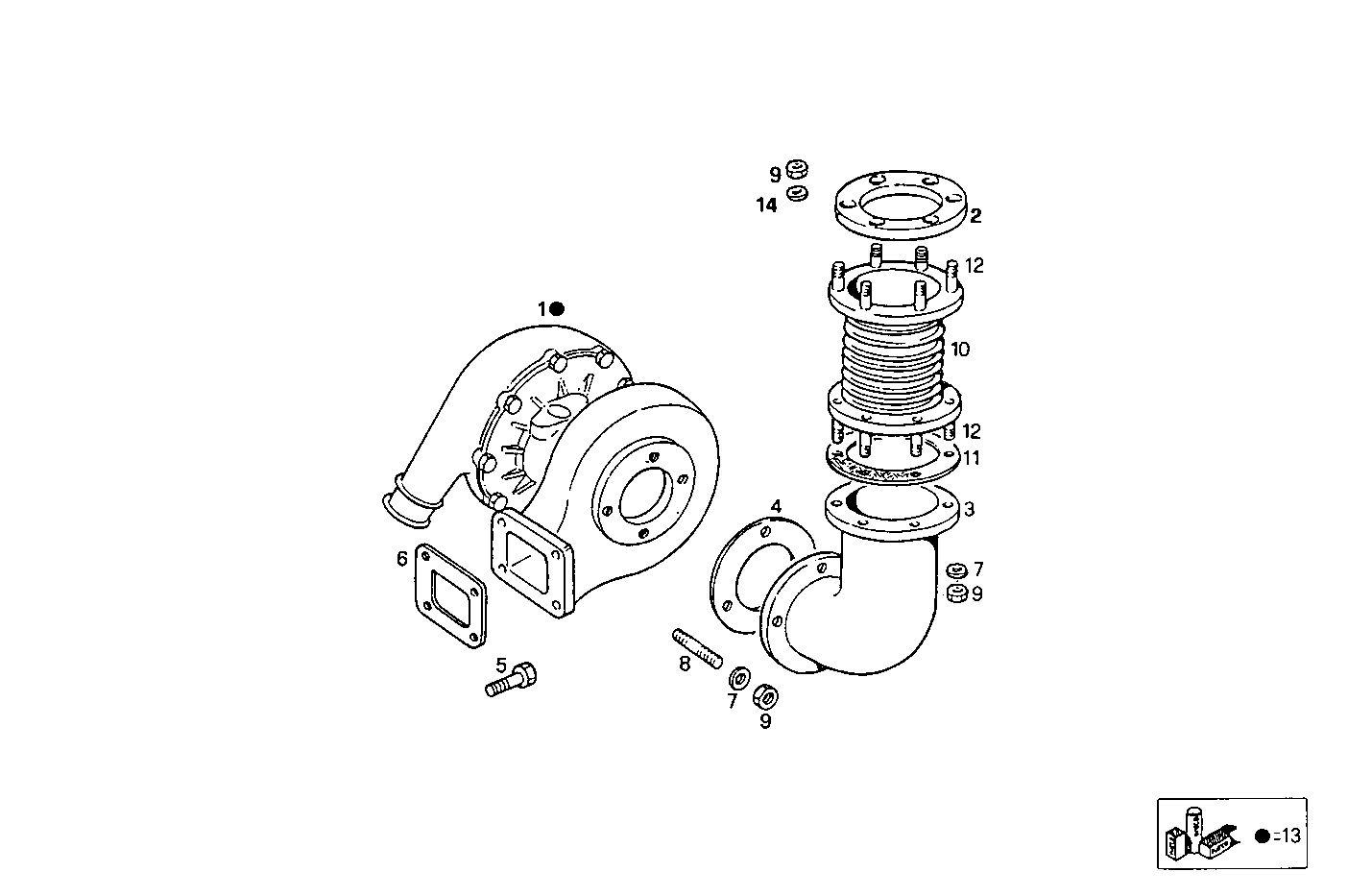

2400.098 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 98435386 TURBOCHARGER ASSY GARRETT - LEFT
2 4919183 FLANGE
3 8018125 EXHAUST ELBOW
4 4729026 GASKET
5 4830633 HEXAGON BOLT M10X28 MM
6 4632123 GASKET
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 16729534 STUD M8X30 MM
9 17037931 HEXAGON NUT M8X1,25
10 4935378 EXHAUST BELLOWS
11 8009606 GASKET
12 13516821 STUD M8X12X20 MM
13 93161431 KIT-TURBOCHARGER
14 16665514 WASHER Ø8 MM
