8281SRi26.01

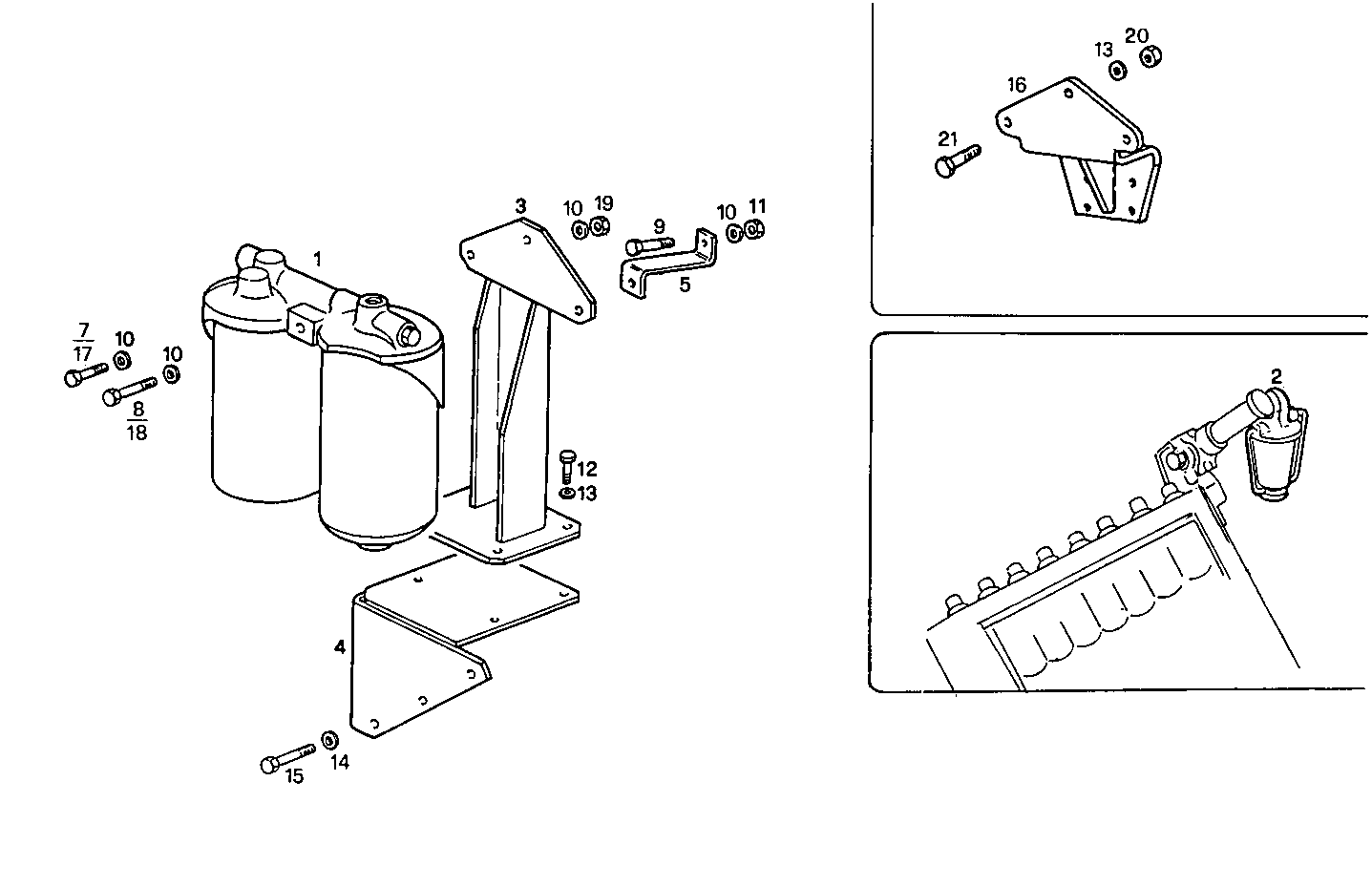

2000.067 FUEL FILTER

Iveco/FPT FUEL FILTER

Item Part number Description
1 4690738 FUEL FILTER ASSY
2 8110468 FUEL FILTER
3 8008538 SUPPORT
4 8008481 RETAINER
5 8015653 RETAINER
7 11306921 SCREW M10X1,25X30
8 15972421 HEXAGON BOLT M10X1,25X130 MM
9 15231721 SCREW M10X1,25X65
10 17090474 SPRING WASHER Ø10X27 MM SP=2,5
11 17038221 HEXAGON NUT M10
12 16605424 SCREW M8X16 MM (8.8)
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 12646721 WASHER Ø8X20 MM
15 16046121 HEXAGON BOLT M8X1,25X100
16 8018243 SUPPORT
17 16607824 HEXAGON BOLT M10X35 MM (8.8)
18 16609324 SCREW M10X150
19 17038121 HEXAGON NUT M10
20 17037931 HEXAGON NUT M8X1,25
21 16605524 HEXAGON BOLT M8X20 MM
