8281SRi26.01

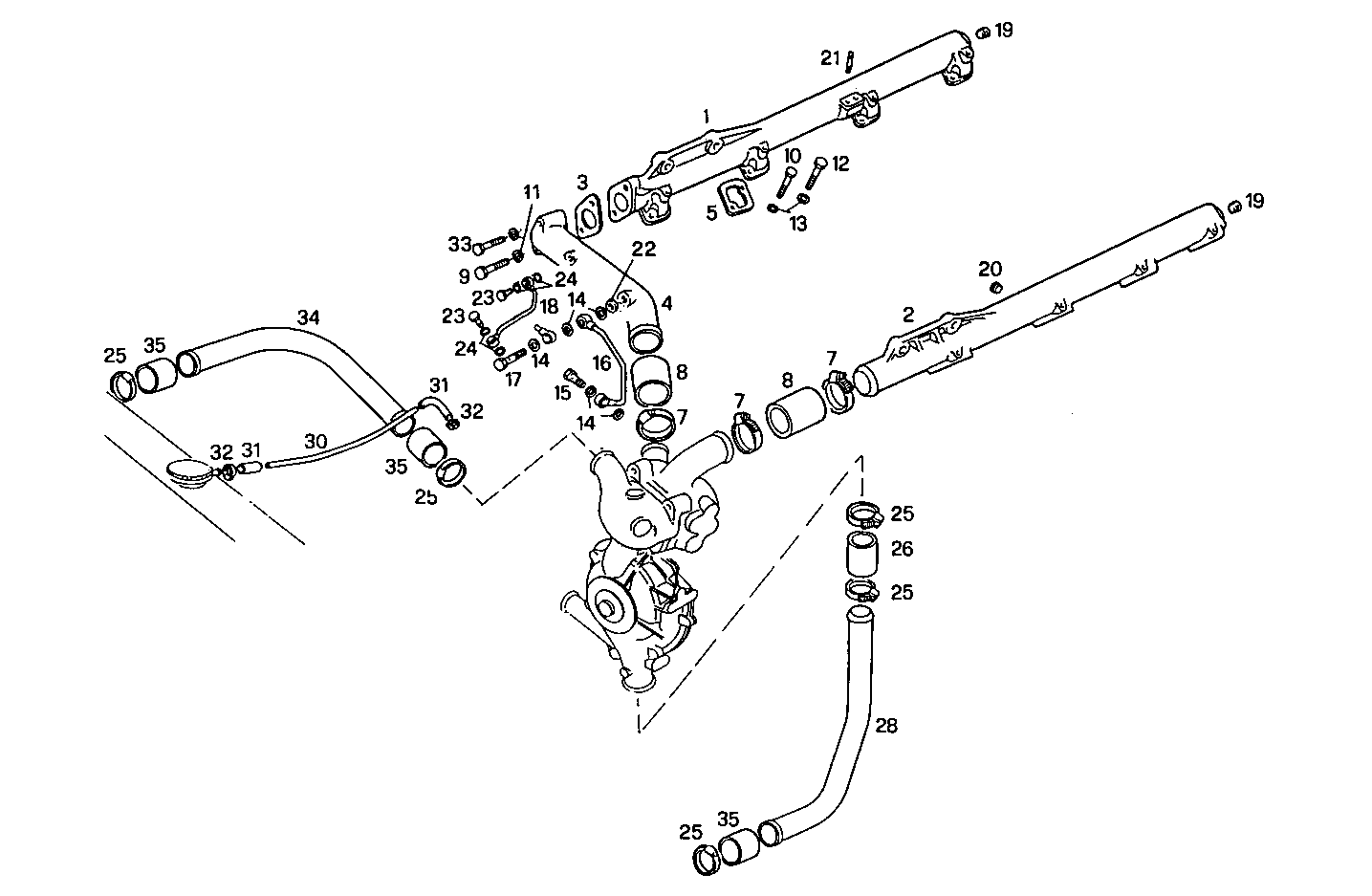

3210.068 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4760275 | WATER MANIFOLD |
| 2 | 4678211 | WATER MANIFOLD |
| 3 | 98469577 | FLAT ENGINE GASKET |
| 4 | 98473595 | WATER PIPE |
| 5 | 98418857 | FLAT ENGINE GASKET |
| 7 | 17764891 | CLIP Ø40/60 MM |
| 8 | 98420477 | WATER HOSE |
| 9 | 16044524 | SCREW M8X65 |
| 10 | 16605924 | SCREW M8X40 MM |
| 11 | 17089874 | WASHER Ø8X22 MM |
| 12 | 16606624 | HEXAGON BOLT M8X80 MM |
| 13 | 12646721 | WASHER Ø8X20 MM |
| 14 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 15 | 10184317 | SCREW CONNECTOR M14X1,5 |
| 16 | 4792943 | WATER PIPE |
| 17 | 61608319 | SCREW CONNECTOR |
| 18 | 8008448 | WATER PIPE |
| 19 | 16994950 | PLUG M24X1,5 |
| 20 | 14325401 | LOCK PLUG M24X1,5 |
| 21 | 13540921 | STUD M6X12X16 MM |
| 22 | 4792945 | SPACING BAR |
| 23 | 4618526 | SCREW CONNECTOR |
| 24 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 25 | 17765092 | CLIP Ø60-80 MM |
| 26 | 8110485 | RUBBER SLEEVE |
| 28 | 8107755 | WATER PIPE |
| 30 | 8024202 | WATER PIPE |
| 31 | 4927825 | WATER HOSE |
| 32 | 18087991 | CLIP Ø8/16 MM |
| 33 | 16605824 | HEXAGON BOLT M8X35 MM |
| 34 | 8010171 | WATER PIPE |
| 35 | 8107383 | RUBBER SLEEVE Ø60 MM |
