8281SRi26.01

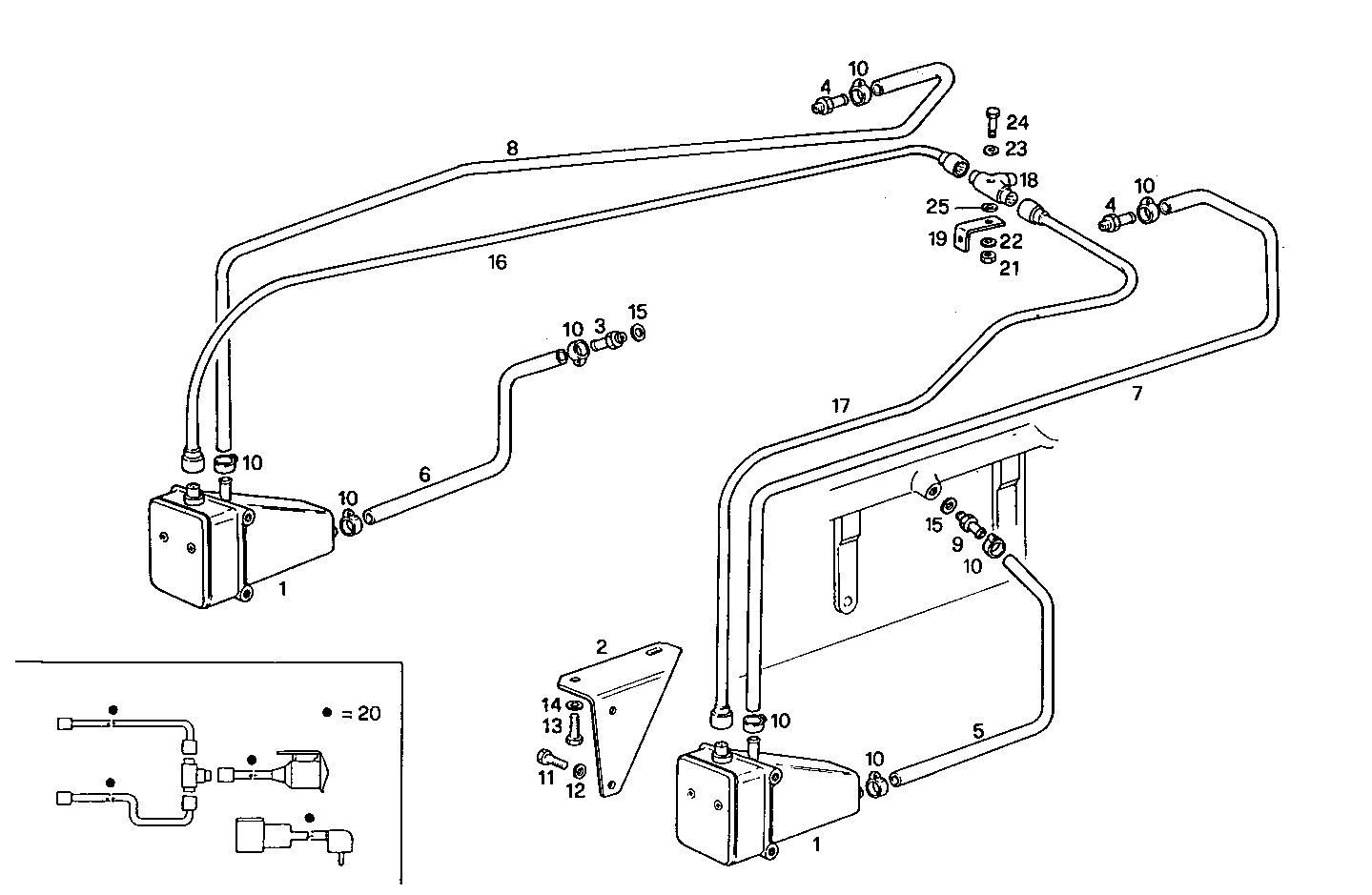

A20040014 WATER PREHEATER DEVICE - 220V - 1400 W
| Item |
Part number |
Description |
|
1 |
8006935 |
HEATER |
|
2 |
8007061 |
SUPPORT |
|
3 |
4616630 |
THREADED UNION |
|
4 |
8112319 |
PIPE SOCKET |
|
5 |
8111813 |
RUBBER SLEEVE |
|
6 |
8005758 |
WATER HOSE L=450 MM |
|
7 |
8114061 |
WATER HOSE L=1000 MM |
|
8 |
8112320 |
WATER HOSE L=1250 MM |
|
9 |
8112804 |
PIPE SOCKET |
|
10 |
17764492 |
CLIP Ø16-25 MM |
|
11 |
10902121 |
HEXAGON BOLT M6X14 MM |
|
12 |
11197779 |
SPRING WASHER Ø6X12 MM |
|
13 |
10923521 |
SCREW |
|
14 |
10730501 |
WASHER Ø10,2 MM |
|
15 |
10263460 |
WASHER Ø22X28X1,5 MM |
|
16 |
8112321 |
WIRE/CABLE L=1000 MM |
|
17 |
8112322 |
WIRE/CABLE L=2000 MM |
|
18 |
8111867 |
CONNECTION |
|
19 |
8104447 |
RETAINER |
|
20 |
8009376 |
WIRE/CABLE ASSY |
|
21 |
12574111 |
HEXAGON NUT M5 |
|
22 |
10571470 |
SPRING WASHER Ø5,3 MM |
|
23 |
14496501 |
WASHER Ø8,5 MM |
|
24 |
10978521 |
HEXAGON BOLT M5X35 MM |
|
25 |
14497801 |
WASHER Ø5X9,5 MM |
