8281SRi26.01

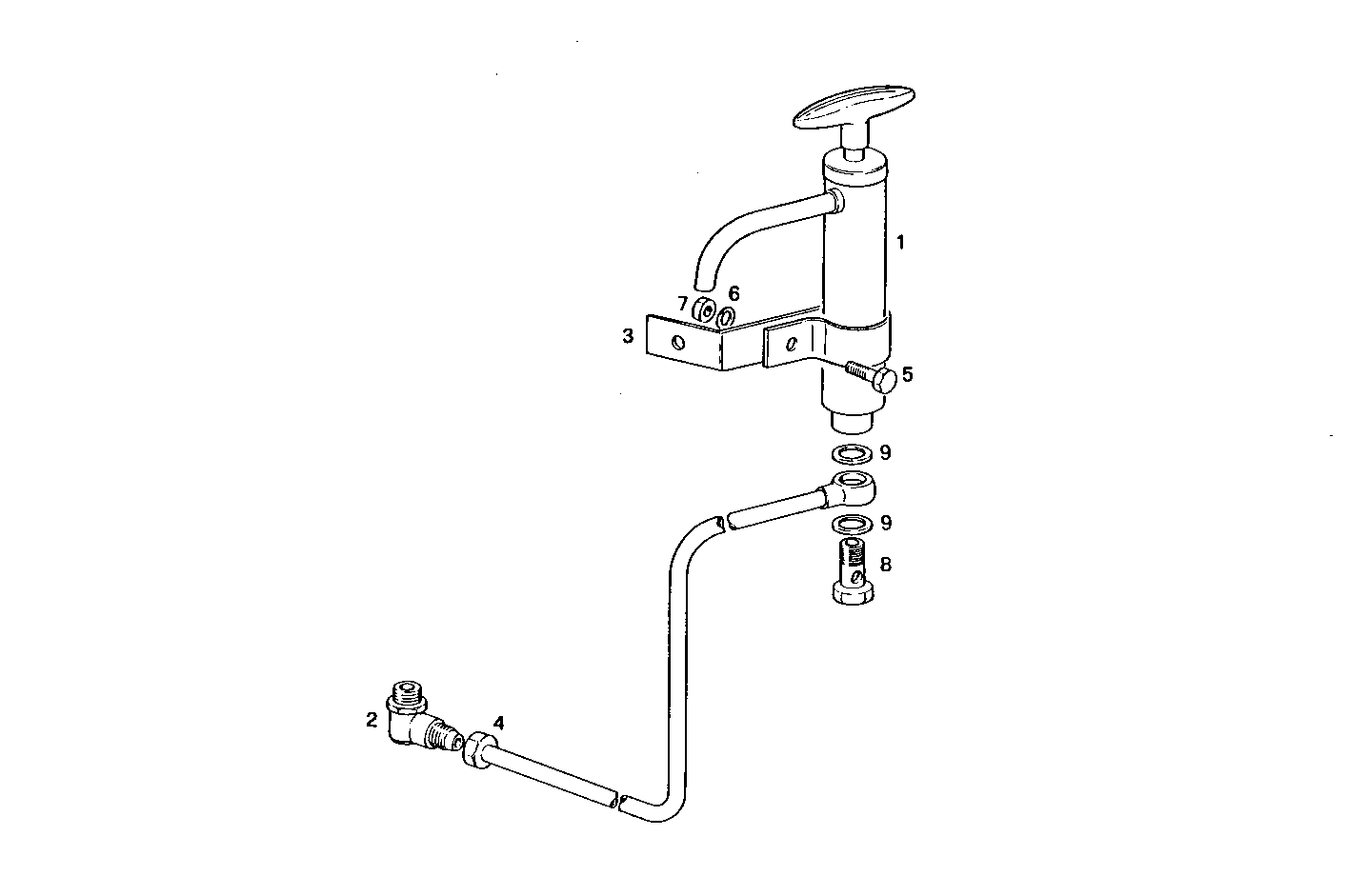

A49010012 OIL DRAIN PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 4928527 | PIPE SOCKET |
| 3 | 4931982 | RETAINER |
| 4 | 8102069 | OIL LINE |
| 5 | 16043221 | HEXAGON BOLT M8X16 MM |
| 6 | 11198171 | SPRING WASHER Ø8,4 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 4864084 | BANJO BOLT M16X1,5 |
| 9 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
