8281SRi26.02

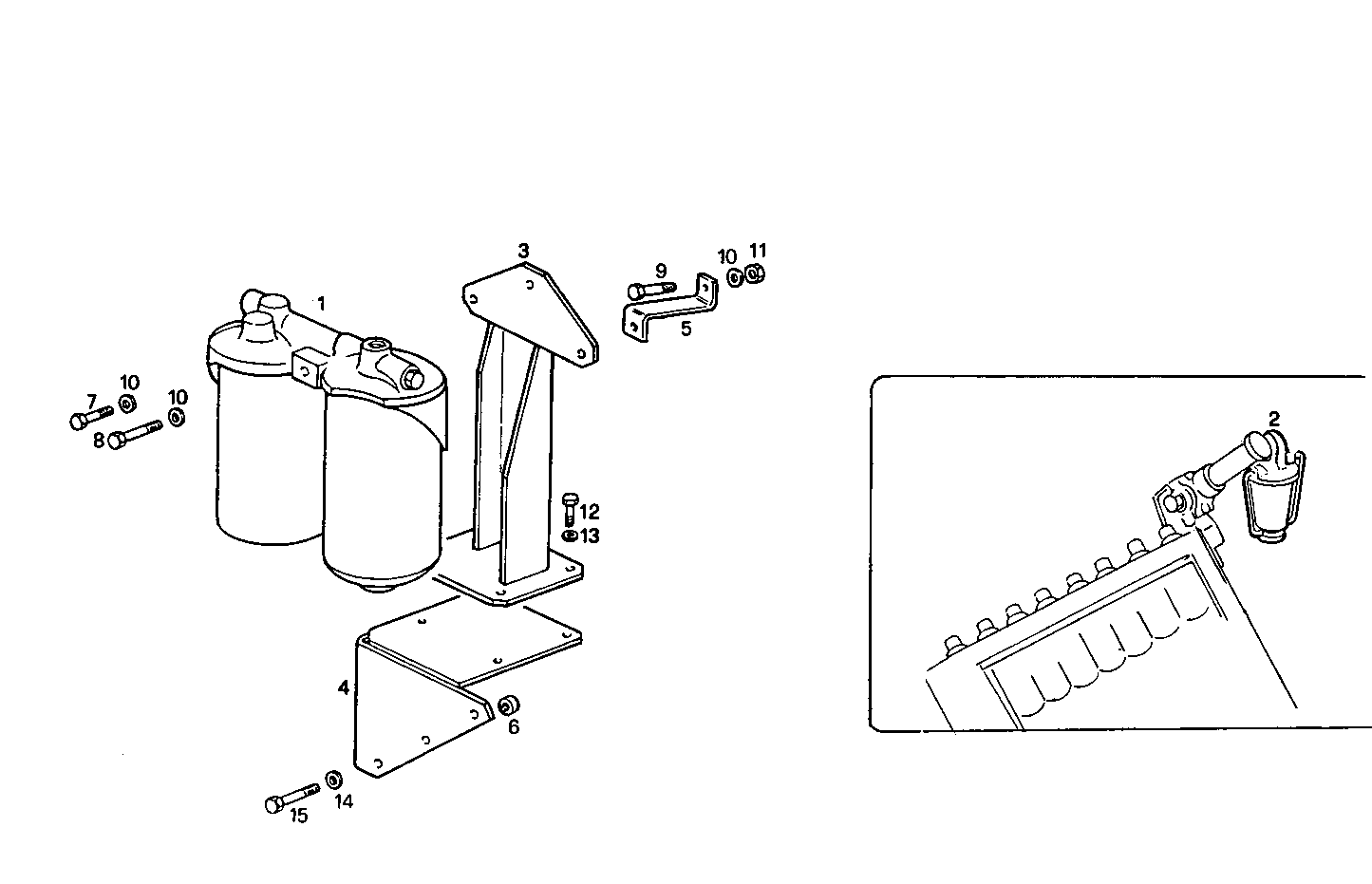

2000.064 FUEL FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 4690738 | FUEL FILTER ASSY |
| 2 | 8110468 | FUEL FILTER |
| 3 | 8008538 | SUPPORT |
| 4 | 8008481 | RETAINER |
| 5 | 8015653 | RETAINER |
| 6 | 17316015 | SPACING BAR |
| 7 | 11306921 | SCREW M10X1,25X30 |
| 8 | 15972421 | HEXAGON BOLT M10X1,25X130 MM |
| 9 | 15231721 | SCREW M10X1,25X65 |
| 10 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 11 | 17038221 | HEXAGON NUT M10 |
| 12 | 16605424 | SCREW M8X16 MM (8.8) |
| 13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 14 | 12646721 | WASHER Ø8X20 MM |
| 15 | 16608924 | HEXAGON BOLT M10X110 MM |
