8281SRi26.02

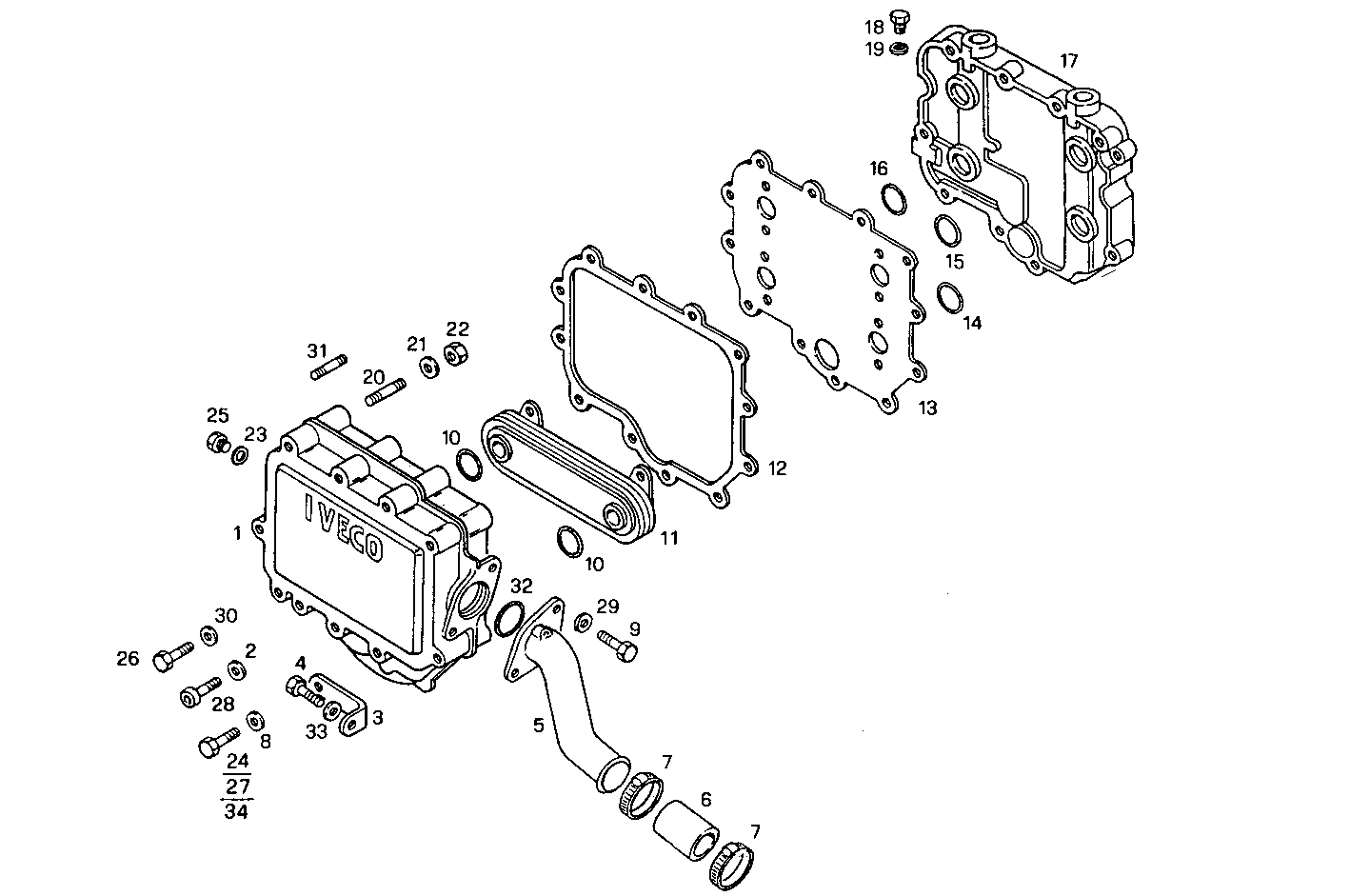

3100.019 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 4799546 HEAT EXANGER BODY
2 4760498 GASKET Ø8,65X14,35 MM
3 4808747 RETAINER
4 11343821 HEXAGON BOLT M10X1,25X50 MM
5 4799544 WATER PIPE
6 98421380 WATER HOSE
7 17764891 CLIP Ø40/60 MM
8 12646721 WASHER Ø8X20 MM
9 16043621 HEXAGON BOLT M8X25 MM
10 14459081 O-RING Ø2,62X44,12 MM
11 98415302 OIL COOLER
12 98419012 FLAT ENGINE GASKET
13 4799548 HEAT EXCHANG.COVER
14 17283981 O-RING Ø50,4 MM SP=2,6 MM
15 17282781 O-RING Ø31,42 MM SP=2,62 MM
16 17282981 O-RING 2,62x34,59
17 4799550 SUPPORT ASSY
18 10276111 LOCK PLUG M32X1,5
19 10265060 SEAL GASKET Ø32X38 MM SP=1,5 MM
20 13516621 STUD M8X16 MM
21 11198071 SPRING WASHER Ø8X15 SP=1,4 MM
22 17037931 HEXAGON NUT M8X1,25
23 4858606 GASKET Ø10X14X1 MM
24 16045421 HEXAGON BOLT M8X110 MM
25 4753563 PLUG M10X1,5
26 16044221 HEXAGON BOLT M8X50 MM
27 16046121 HEXAGON BOLT M8X1,25X100
28 14306221 SCREW M8X16
29 11193979 SPRING WASHER Ø8X22 MM
30 10519601 WASHER Ø8X17 MM
31 13517221 STUD M8X12X30 MM
32 17283681 O-RING Ø45,6 MM SP=2,62 MM
33 12642401 WASHER Ø10,6 MM
34 16045021 HEXAGON BOLT M8X90 MM
