8281SRi26.02

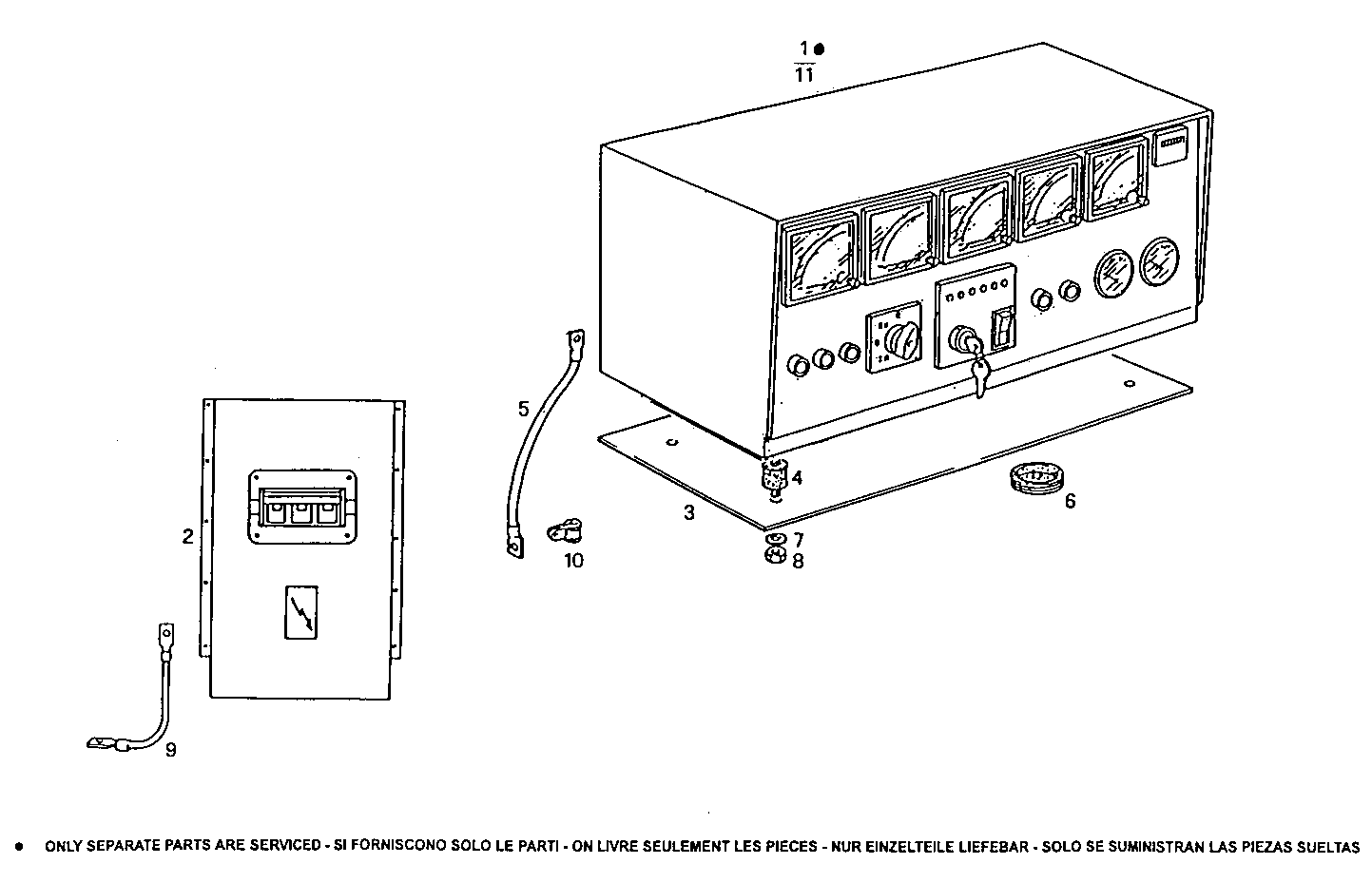

A60330005 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MARELLI (GAC-HUGLI)
| Item | Part number | Description |
|---|---|---|
| 1 | 8019062 | CONTROL BOARD ASSY 220V 50-60Hz [up to 03-96] |
| 2 | 8010197 | SWITCH 1250A |
| 3 | 8019260 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8006993 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 8110852 | EARTH WIRE |
| 10 | 17314890 | CLIP |
| 11 | 8022357 | CONTROL BOARD ASSY 220V 50-60Hz [from 03-96] |
