8281SRi27.00

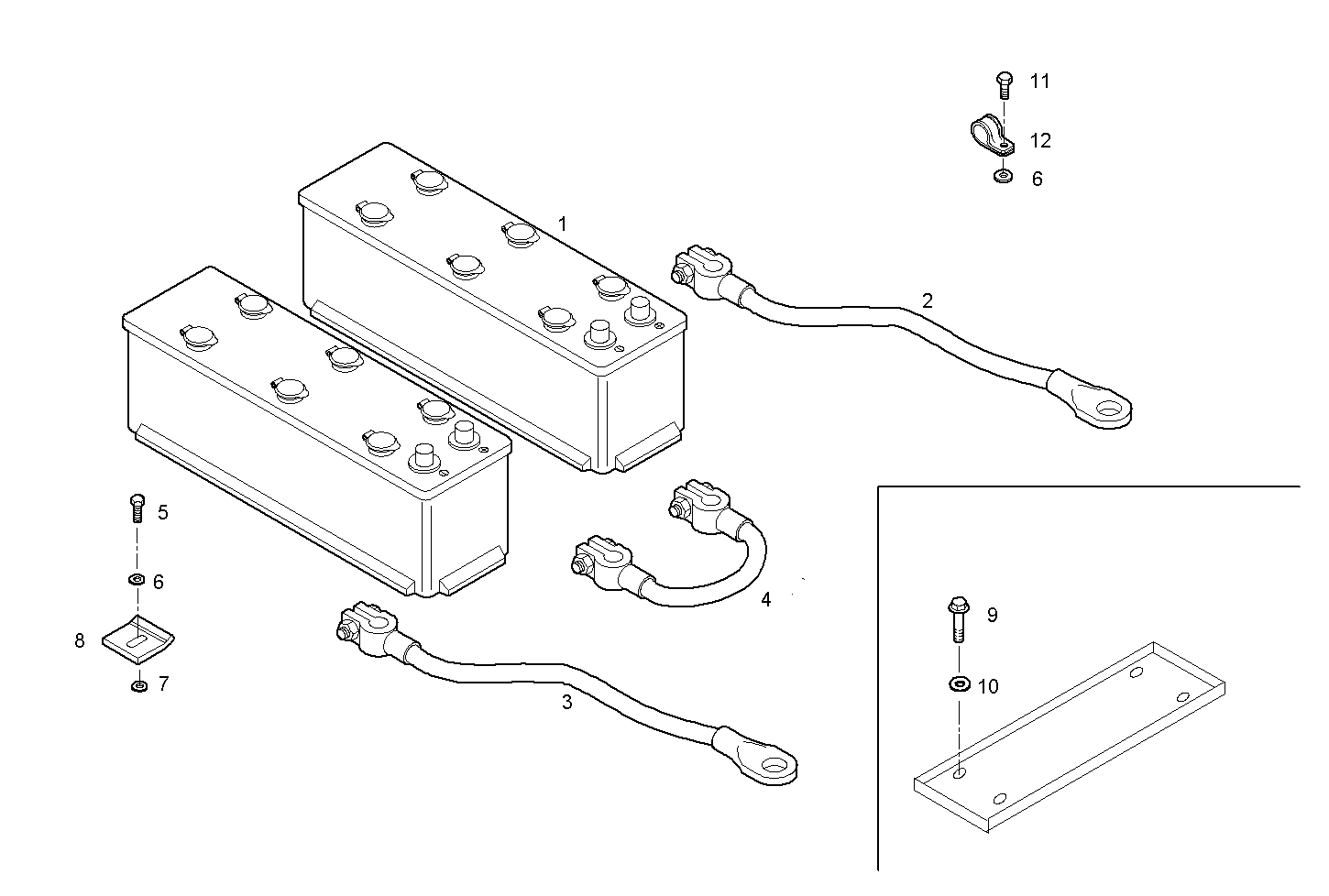

A30040011 STARTING BATTERY 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8024130 | BATTERY |
| 2 | 8109816 | WIRE/CABLE (-) |
| 3 | 8104366 | WIRE/CABLE (+) |
| 4 | 8110064 | WIRE/CABLE |
| 5 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 12626201 | WASHER Ø10,25X3 MM |
| 8 | 8024305 | RETAINER |
| 9 | 16605524 | HEXAGON BOLT M8X20 MM |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 15003921 | HEXAGON BOLT M10 |
| 12 | 17316790 | CLIP |
