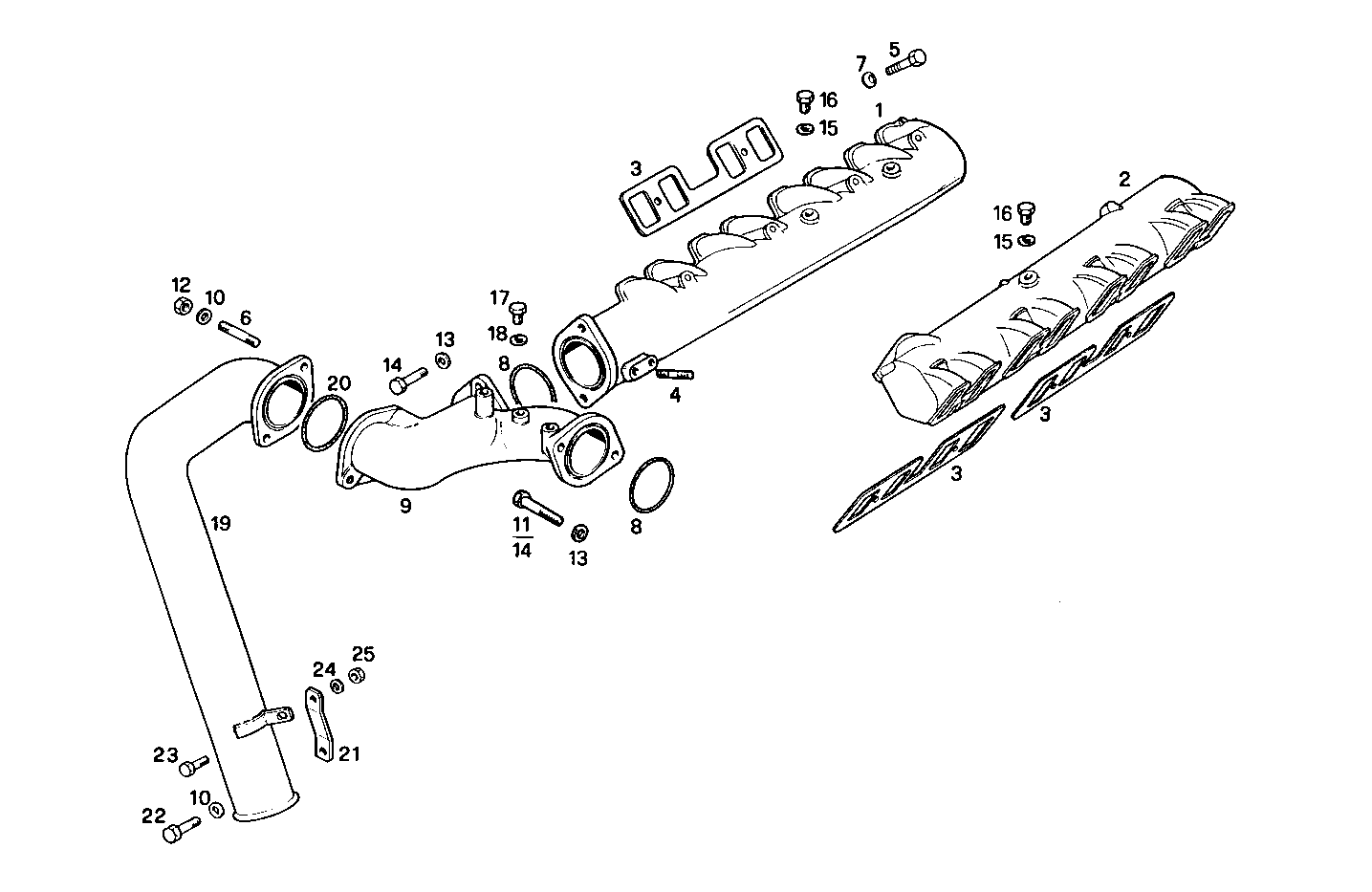

| Item |
Part number |
Description |
|
1 |
98428304 |
INTAKE ELBOW RIGHT |
|
2 |
4807812 |
INTAKE ELBOW LEFT |
|
3 |
4789747 |
INTAKE ELBOW GASK. |
|
4 |
13516811 |
STUD M8X12X20 MM |
|
5 |
15971821 |
SCREW M10X1,25X100 |
|
6 |
16729324 |
STUD M8X12X20 MM |
|
7 |
4789748 |
WASHER |
|
8 |
17290681 |
O-RING �75,79X3,53 MM |
|
9 |
4807816 |
INTAKE ELBOW |
|
10 |
17089474 |
SPRING WASHER �8X16 MM SP=1,4 MM |
|
11 |
16606124 |
HEXAGON BOLT M8X50 MM |
|
12 |
17037931 |
HEXAGON NUT M8X1,25 |
|
13 |
17793804 |
WASHER �8X21X1,5 MM |
|
14 |
16043721 |
HEXAGON BOLT M8X28 MM |
|
15 |
17751985 |
WASHER �35X41X2 MM |
|
16 |
16993711 |
THREADED PLUG M35X1,5 |
|
17 |
16992240 |
THREADED PLUG M12X1,5 |
|
18 |
4858607 |
WASHER �12X17 MM SP=1,5 MM |
|
19 |
8018124 |
AIR PIPE/DUCT |
|
20 |
17291181 |
O-RING �91,67 MM SP=3,53 MM |
|
21 |
8108560 |
RETAINER |
|
22 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
23 |
16607624 |
SCREW M10X25 |
|
24 |
17090174 |
SPRING WASHER �10X20 MM |
|
25 |
17038121 |
HEXAGON NUT M10 |
