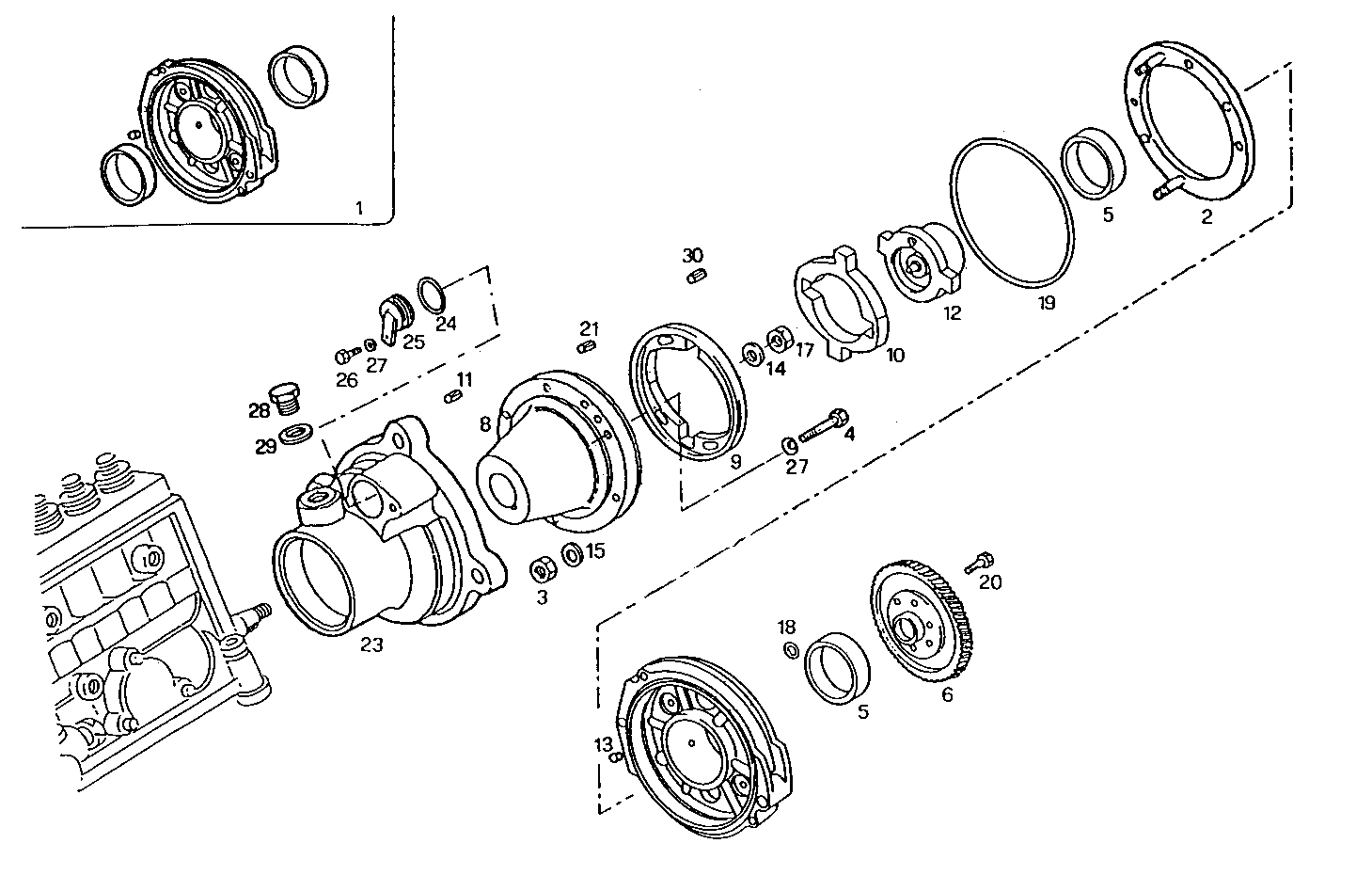

| Item |
Part number |
Description |
|
1 |
98424000 |
SUPPORT ASSY |
|
2 |
4836618 |
RING |
|
3 |
17037931 |
HEXAGON NUT M8X1,25 |
|
4 |
16605721 |
HEXAGON BOLT M8X30 MM |
|
5 |
4686615 |
BUSH |
|
6 |
4859822 |
INJ.PUMP DRIV.GEA |
|
8 |
98424120 |
INJECT.PUMP SLEEVE |
|
9 |
4797214 |
FLANGE |
|
10 |
4797215 |
FLANGE |
|
11 |
17274710 |
DOWEL PIN �8X16 MM |
|
12 |
98472241 |
SHAFT |
|
13 |
10269150 |
LOCK PLUG M6X1 |
|
14 |
17096004 |
WASHER �20X37 MM |
|
15 |
17089574 |
WASHER �8X16 MM |
|
17 |
16980931 |
HEXAGON NUT M20X1,5 |
|
18 |
17281481 |
O-RING �10,7 MM SP=2,6 MM |
|
19 |
17293481 |
O-RING �177,4 MM SP=3,5 MM |
|
20 |
14348931 |
SCREW M10X1,25X25 |
|
21 |
17257870 |
DOWEL PIN �6 MM |
|
23 |
99436321 |
HOUSING |
|
24 |
17289281 |
O-RING �34,5 MM SP=3,53 MM |
|
25 |
4718740 |
PLUG |
|
26 |
16605424 |
SCREW M8X16 MM (8.8) |
|
27 |
17094914 |
WASHER 8x16 |
|
28 |
98436549 |
THREADED PLUG |
|
29 |
4858610 |
WASHER �18X24 MM SP=1,5 MM |
|
30 |
4686653 |
DOWEL PIN |
