8281SRi40.00

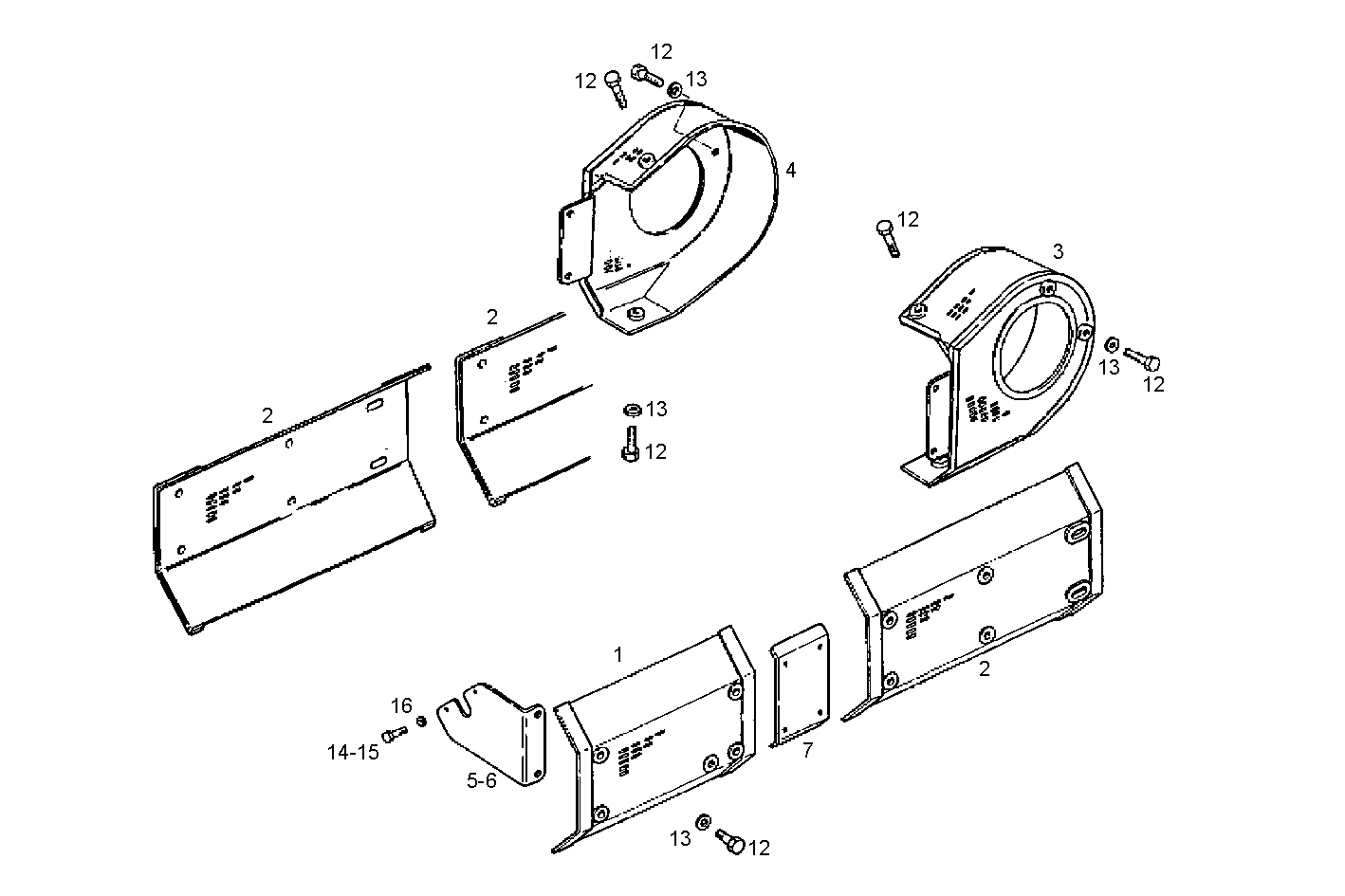

A48040023 GUARD
| Item | Part number | Description |
|---|---|---|
| 1 | 8021366 | PROTECTION |
| 2 | 8021367 | PROTECTION |
| 3 | 8032274 | PROTECTION LEFT |
| 4 | 8032275 | PROTECTION RIGHT |
| 5 | 8018260 | RETAINER RIGHT |
| 6 | 8018261 | RETAINER LEFT |
| 7 | 8018630 | RETAINER |
| 12 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 14 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 15 | 16603924 | HEXAGON BOLT M6X30 MM |
| 16 | 17708774 | WASHER Ø6X11 MM |
