8281SRM44.10

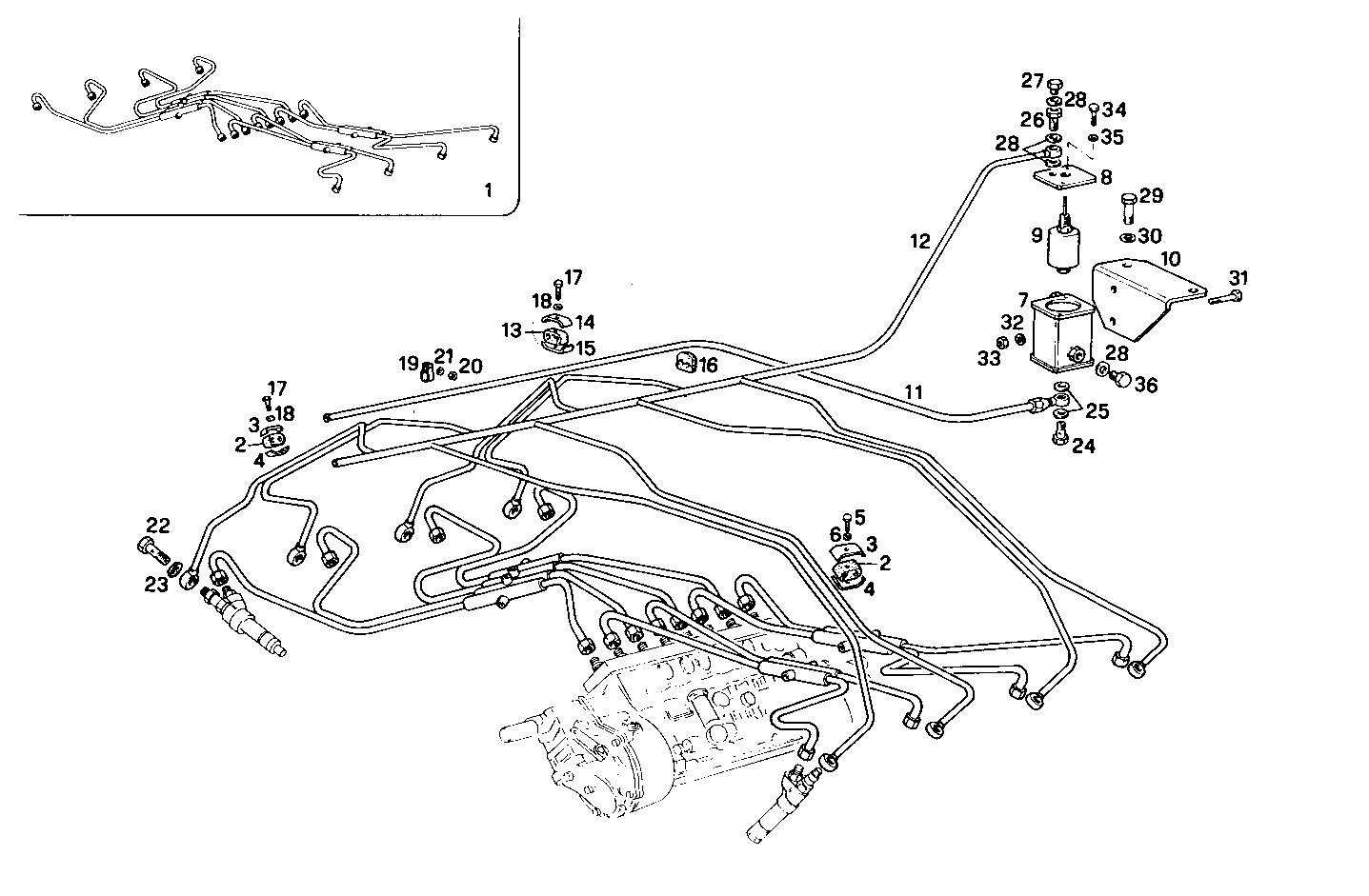

A16010006 DOUBLE WALL INJECTION PIPES

Iveco/FPT DOUBLE WALL INJECTION PIPES

Item Part number Description
1 8109970 INJECTION LINE SET
2 4659217 DOWEL
3 4659218 CLIP
4 4659219 PLATE
5 10978021 HEXAGON BOLT M5X20 MM
6 12601179 WASHER
7 8102280 TANK
8 8102281 COVER
9 8102285 INDICATOR
10 8109975 SUPPORT
11 8014556 FUEL LINE
12 8014555 FUEL LINE
13 4761451 RUBBER PAD
14 4644289 CLIP
15 4644288 CLIP
16 8110955 RUBBER PAD
17 10902621 SCREW M6X25 MM
18 11194779 WASHER Ø6X18X1,4 MM
19 10450090 PIPE CLIP Ø8 MM
20 17037931 HEXAGON NUT M8X1,25
21 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
22 4864078 BANJO BOLT M8X1,25
23 98474303 WASHER Ø8X14 MM SP=2,3 MM
24 4864082 BANJO BOLT M12X1,5X25 MM
25 98474306 WASHER Ø12X20 MM SP=1,9 MM
26 11901711 SCREW CONNECTOR
27 11902117 PLUG M10X1,25
28 98474305 WASHER Ø10X17 MM SP=2,3
29 15540221 HEXAGON BOLT M12X1,25X20 MM
30 11190779 SPRING WASHER Ø12X24 SP=2,8 MM
31 15970621 SCREW M10X1,25X22
32 11190579 SPRING WASHER Ø10X20 MM SP=2,3
33 17038221 HEXAGON NUT M10
34 10979421 HEXAGON BOLT M6X10 MM
35 17088474 WASHER Ø6X12 MM
36 11903140 PLUG M10X1,25
