8281SRM44.10

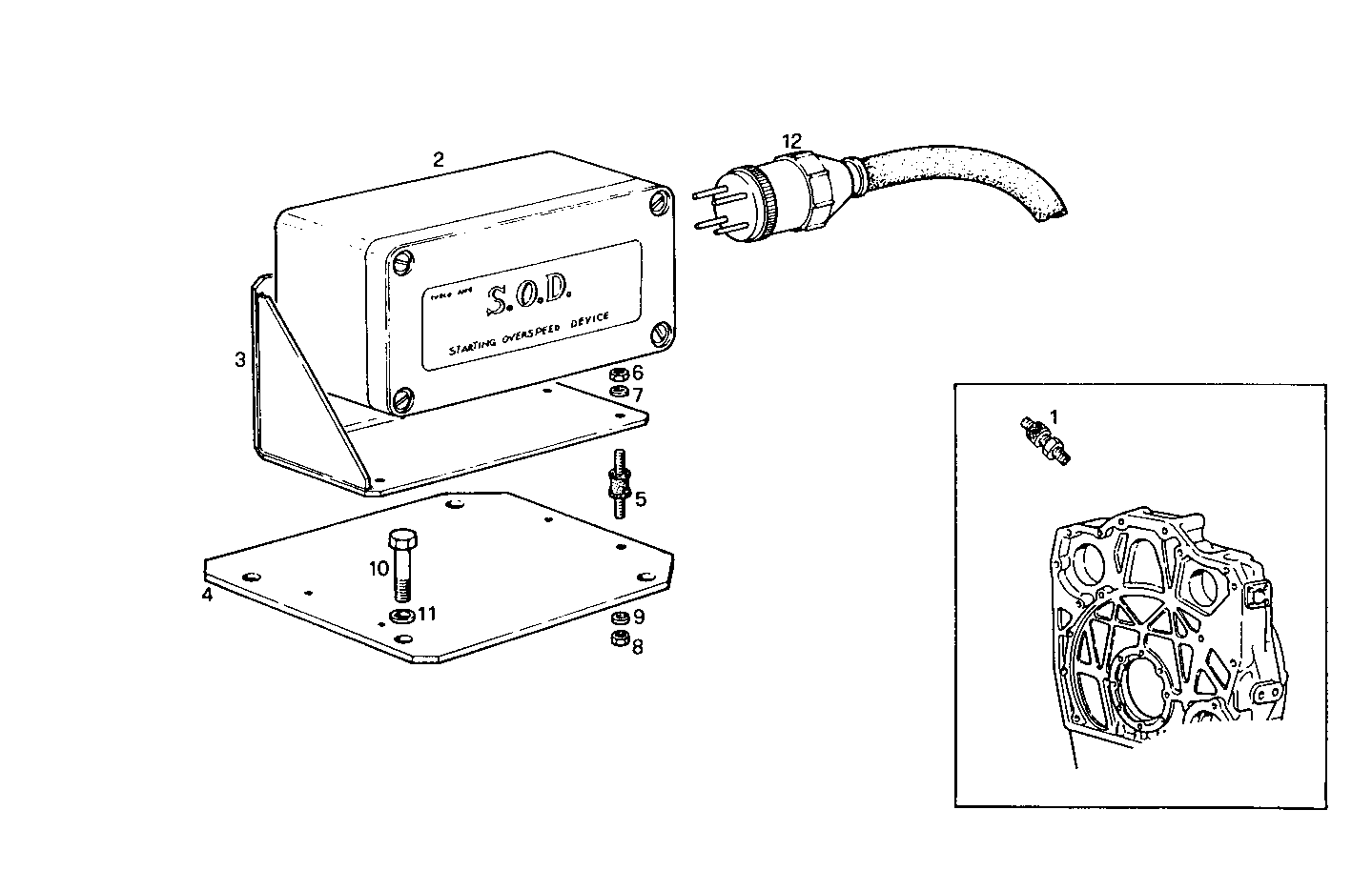

A38650001 OVERSPEED DEVICE 24V AT MAX RPM
| Item | Part number | Description |
|---|---|---|
| 1 | 4933865 | TRANSMITTER |
| 2 | 8105791 | SETTING DEVICE |
| 3 | 8107866 | SUPPORT |
| 4 | 8109917 | SUPPORT |
| 5 | 8018462 | RUBBER PAD |
| 6 | 15896411 | HEXAGON NUT M5 |
| 7 | 12601179 | WASHER |
| 8 | 10794011 | HEXAGON NUT M4X0,7 |
| 9 | 12601079 | WASHER |
| 10 | 15540221 | HEXAGON BOLT M12X1,25X20 MM |
| 11 | 11190779 | SPRING WASHER Ø12X24 SP=2,8 MM |
| 12 | 8109842 | ENGINE HARNESS |
