8281SRM44.10

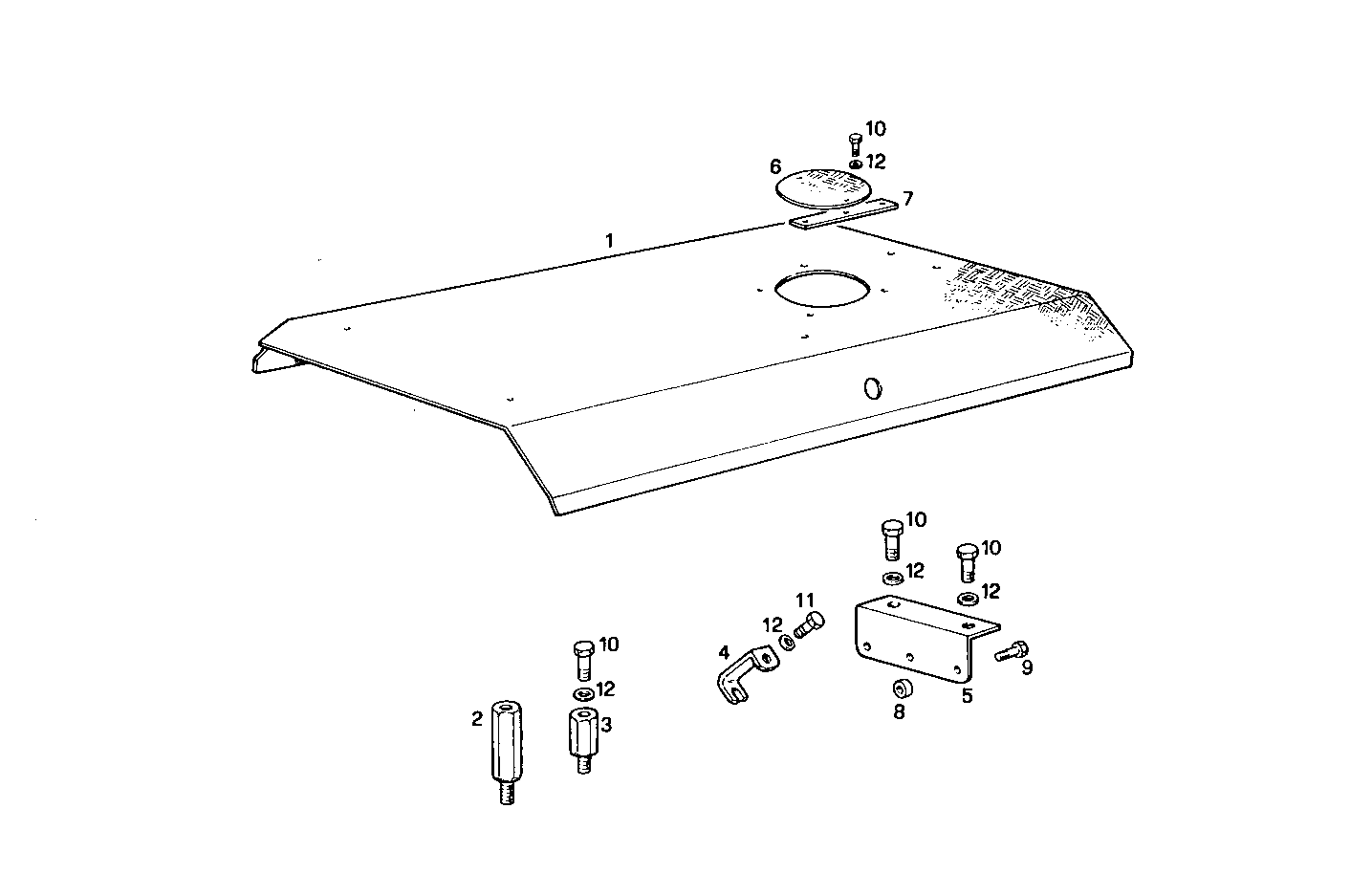

A48080001 ENGINE ROOM GUARD
| Item | Part number | Description |
|---|---|---|
| 1 | 8113677 | PROTECTION |
| 2 | 8113802 | SPACING BAR |
| 3 | 8113801 | SPACING BAR |
| 4 | 8113803 | RETAINER |
| 5 | 8112752 | RETAINER |
| 6 | 8006268 | COVER |
| 7 | 8006269 | RETAINER |
| 8 | 13606111 | SPACER SP=8,5 MM |
| 9 | 16603224 | SCREW |
| 10 | 15540221 | HEXAGON BOLT M12X1,25X20 MM |
| 11 | 15540021 | HEXAGON BOLT M12X1,25X16 MM |
| 12 | 17091074 | WASHER Ø12X24X2,8 MM |
