8281SRM50.12

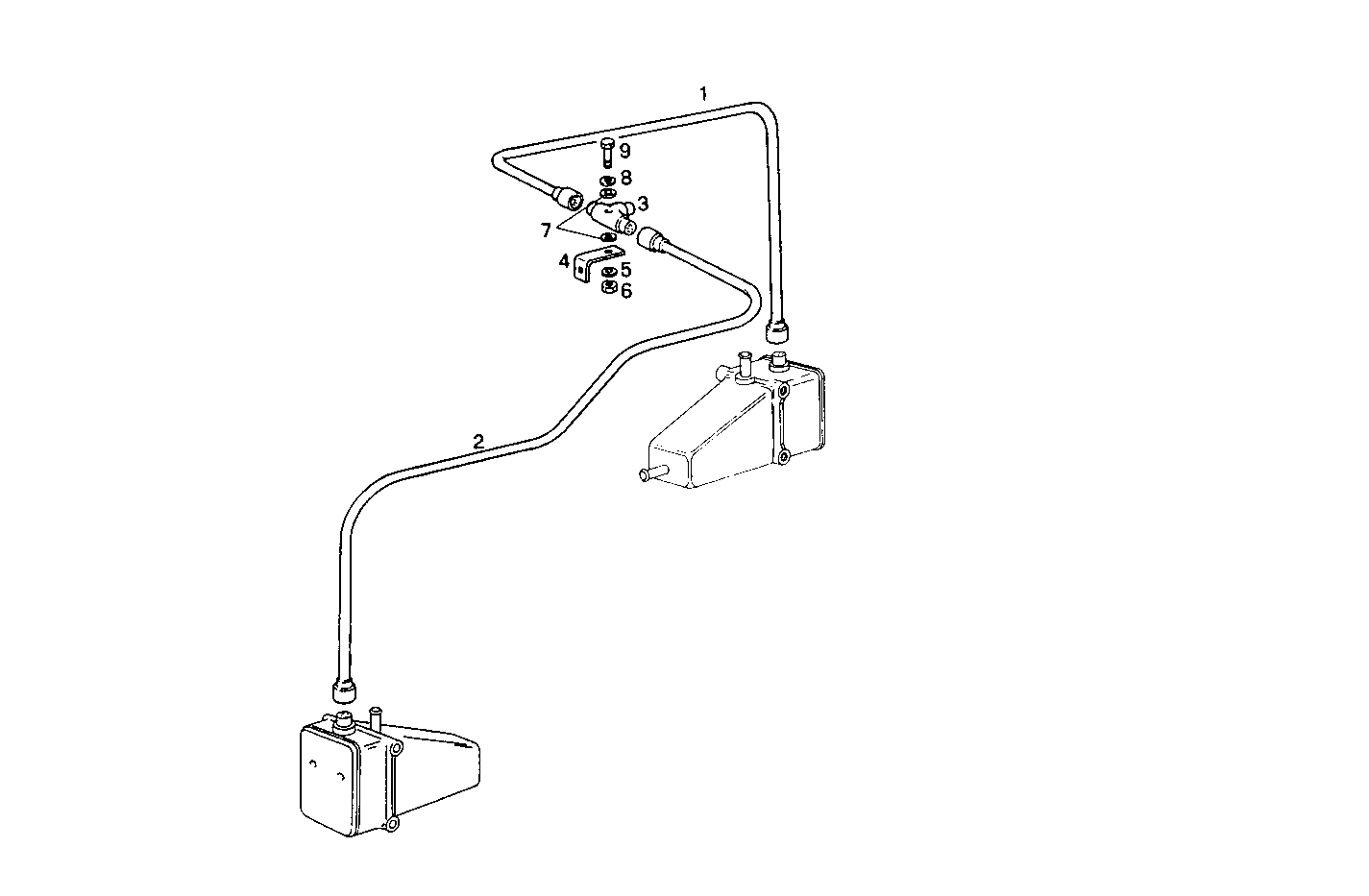

A20040065/02 WATER PREHEATER DEVICE - 220V
| Item | Part number | Description |
|---|---|---|
| 1 | 8112321 | WIRE/CABLE L=1000 MM |
| 2 | 8112322 | WIRE/CABLE L=2000 MM |
| 3 | 8111867 | CONNECTION |
| 4 | 8104447 | RETAINER |
| 5 | 17094634 | WASHER |
| 6 | 17152621 | NUT M5X0,8 |
| 7 | 17094504 | WASHER Ø5,3X10 MM |
| 8 | 17094714 | WASHER Ø6,4X12 MM |
| 9 | 10978521 | HEXAGON BOLT M5X35 MM |
