8281SRM50.12

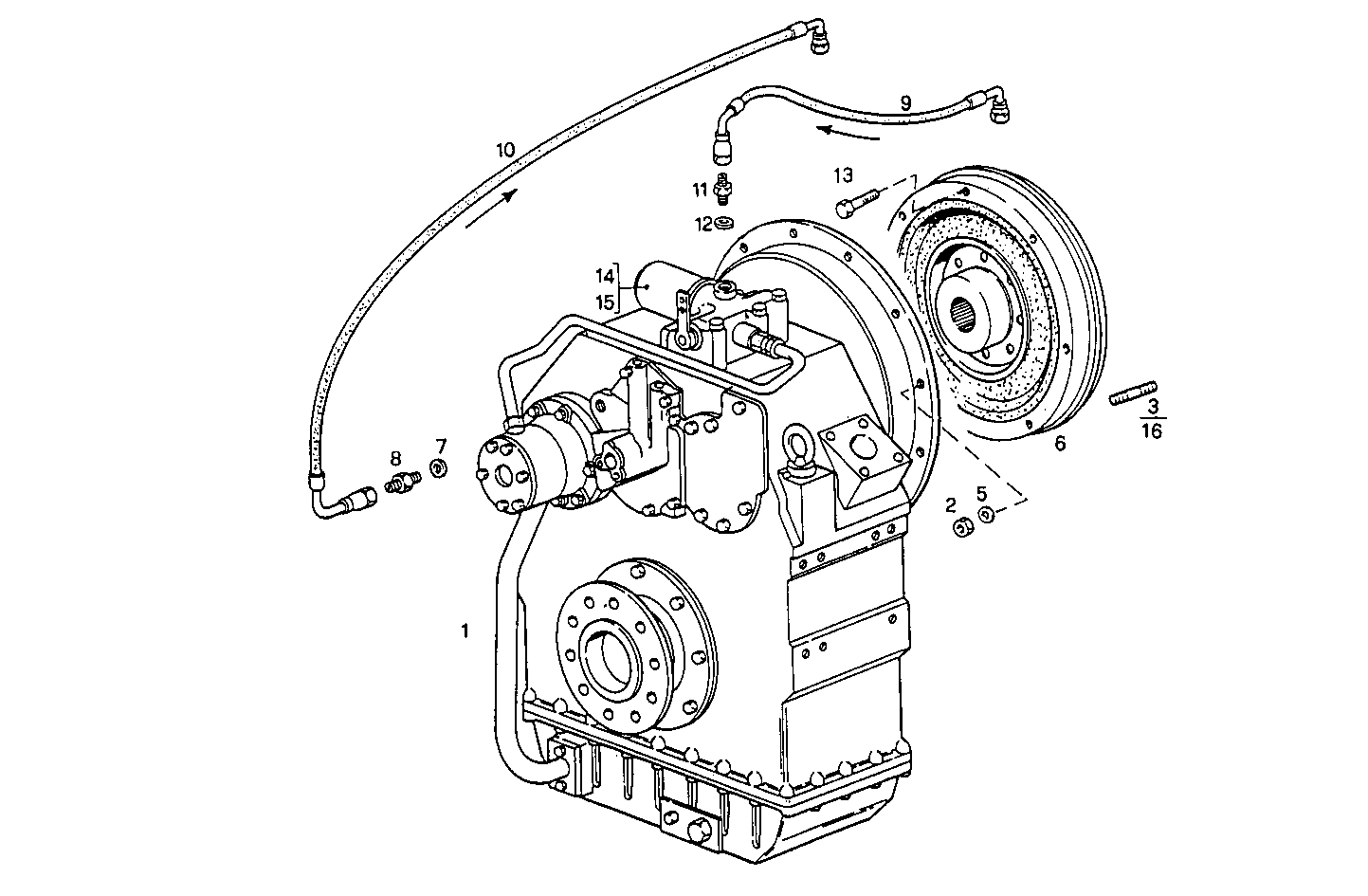

A51870030 MARINE GEAR ZF-MPM IRM 350 - ratio 4.536:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8030000 | MARINE GEAR 4.536:1 |
| 2 | 17038121 | HEXAGON NUT M10 |
| 3 | 17368424 | STUD M10X50 MM |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 8027111 | FLEXIBLE COUPLING [from 12-97] |
| 7 | 10263460 | WASHER Ø22X28X1,5 MM |
| 8 | 8026675 | PIPE SOCKET |
| 9 | 8006875 | HOSE |
| 10 | 8013774 | HOSE |
| 11 | 8026677 | PIPE SOCKET |
| 12 | 11271460 | GASKET Ø21X26X1,5 MM |
| 13 | 14274421 | LOCKING SCREW M8X60 MM |
| 14 | 8007794 | OIL FILTER CARTRIDGE ALTERNATIVE USE |
| 15 | 8007795 | OIL FILTER CARTRIDGE ALTERNATIVE USE |
| 16 | 17368124 | STUD M10X1,5X35 MM |
