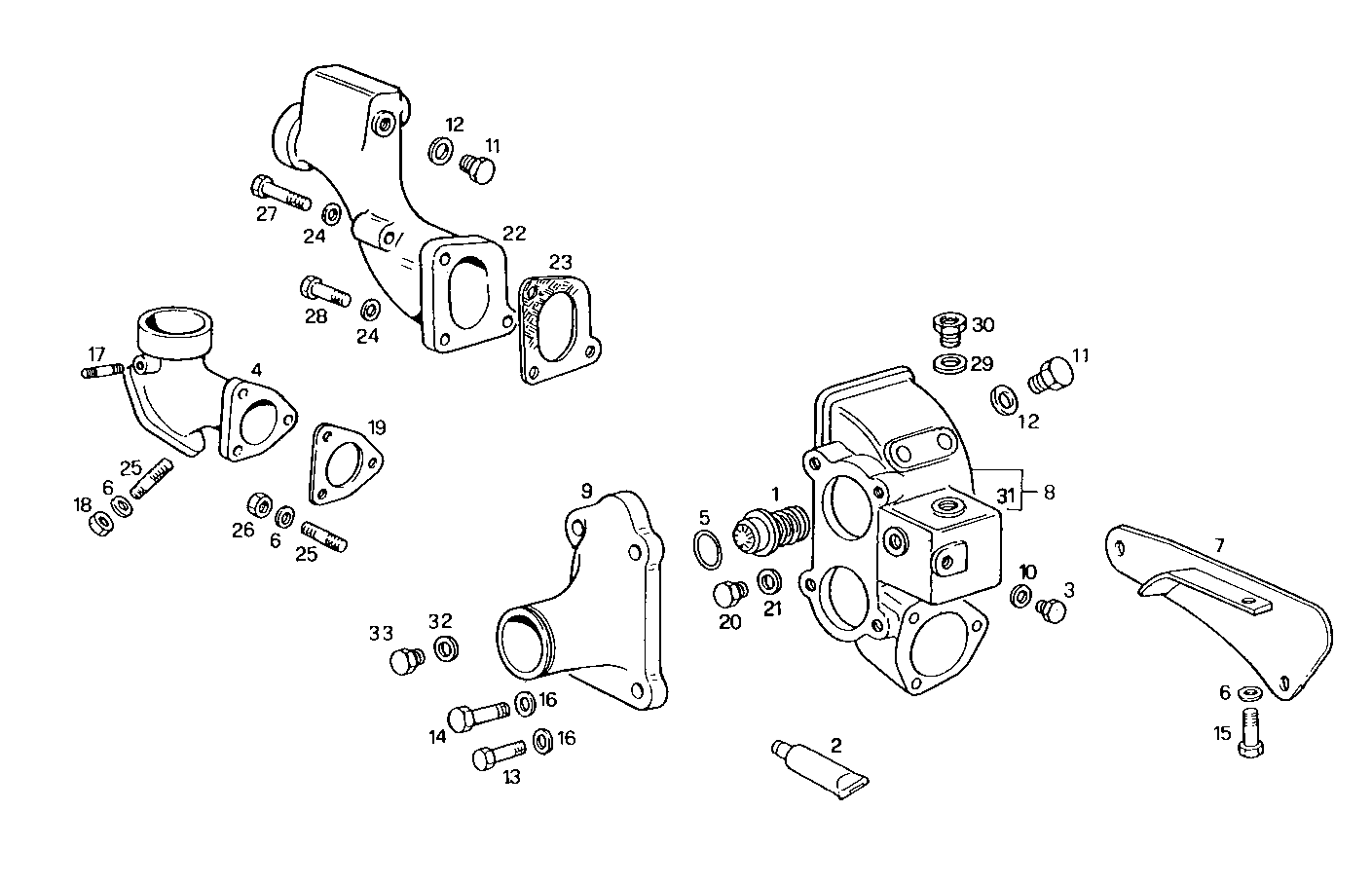

| Item |
Part number |
Description |
|
1 |
98439346 |
THERMOSTAT |
|
2 |
1905685 |
ADHESIVE/STICKER LOCTITE |
|
3 |
11903240 |
PLUG M12 |
|
4 |
8112817 |
VALVE HOUSING |
|
5 |
98465113 |
O-RING Ø60 MM |
|
6 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
7 |
4800743 |
RETAINER |
|
8 |
8025225 |
THERMOSTAT BODY |
|
9 |
4677577 |
COVER |
|
10 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
11 |
16992440 |
THREADED PLUG M16X1,5 |
|
12 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
13 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
14 |
11307021 |
HEXAGON BOLT M10X40 MM |
|
15 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
16 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
17 |
13449321 |
STUD M10X1,25X15X20 MM |
|
18 |
17037931 |
HEXAGON NUT M8X1,25 |
|
19 |
4863488 |
GASKET |
|
20 |
16992640 |
PLUG M22X1,5 |
|
21 |
10263460 |
WASHER Ø22X28X1,5 MM |
|
22 |
8111225 |
WATER CONVEYOR |
|
23 |
4863517 |
FLAT ENGINE GASKET |
|
24 |
17090474 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
25 |
16729324 |
STUD M8X12X20 MM |
|
26 |
16979431 |
NUT M8 |
|
27 |
15972221 |
SCREW M10X1,25X120 |
|
28 |
11306921 |
SCREW M10X1,25X30 |
|
29 |
98429281 |
SEAL GASKET Ø24X31 MM SP=1,5 MM |
|
30 |
8012859 |
PIPE SOCKET |
|
31 |
8025676 |
CHOCK |
|
32 |
16992340 |
THREADED PLUG M14X1,5 |
|
33 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
