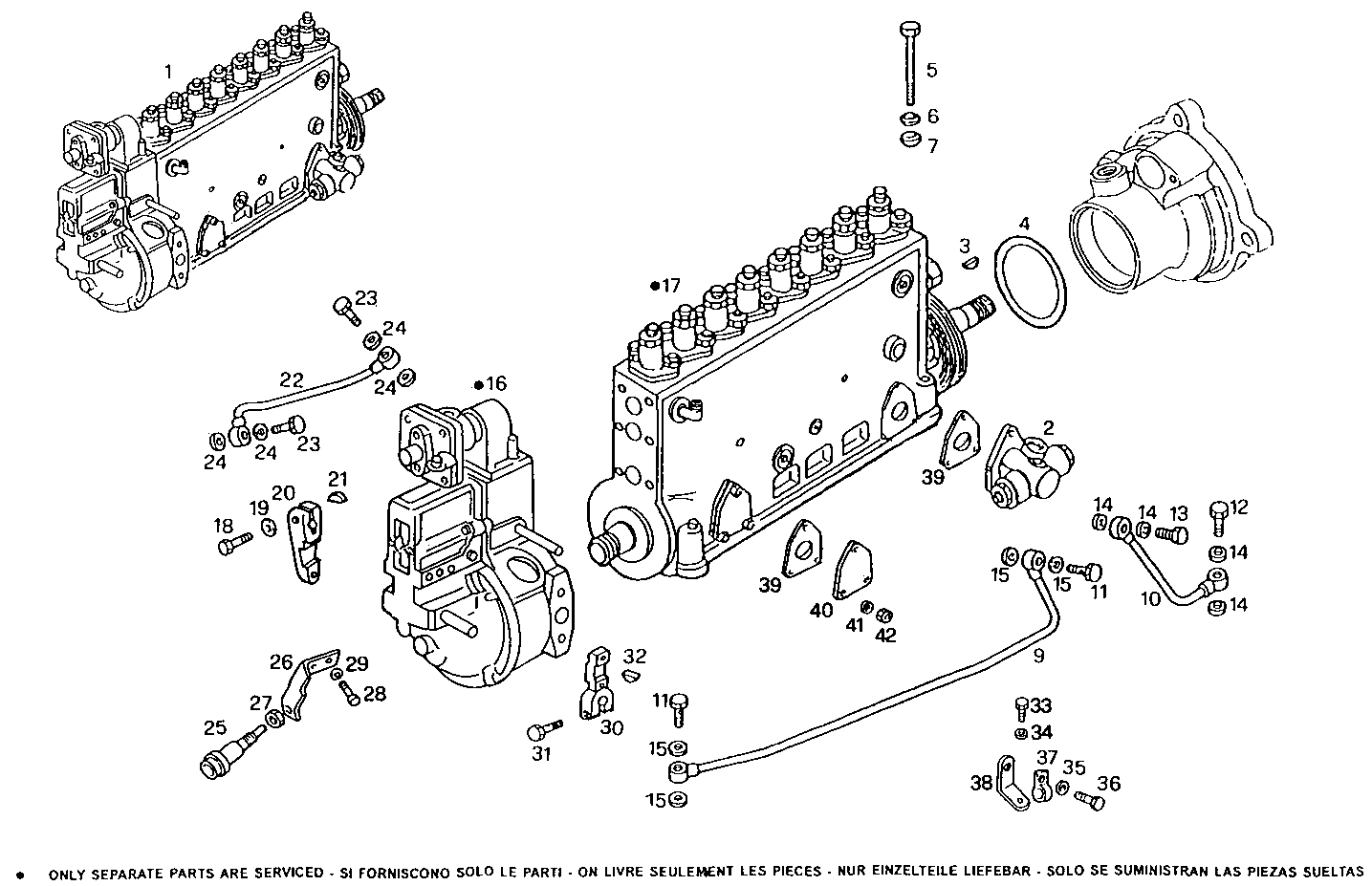

| Item |
Part number |
Description |
|
1 |
8025569 |
INLINE INJECT.PUMP ASSY BOSCH |
|
2 |
8007426 |
FUEL PUMP |
|
3 |
10205720 |
KEY 3X5 MM |
|
4 |
61317062 |
O-RING |
|
5 |
15971334 |
SCREW M10X1,25X75 |
|
6 |
17090274 |
WASHER Ø10X20 MM |
|
7 |
756671 |
WASHER |
|
9 |
98438719 |
OIL LINE |
|
10 |
8015443 |
OIL LINE |
|
11 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
12 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
13 |
4864079 |
SCREW CONNECTOR M10X1 |
|
14 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
15 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
18 |
16602124 |
SCREW M5X16 MM |
|
19 |
17101334 |
SPRING WASHER Ø5 MM |
|
20 |
8108826 |
LEVER |
|
21 |
8101048 |
KEY 3X5X12,5 |
|
22 |
8018769 |
FUEL LINE L=240 MM |
|
23 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
24 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
25 |
4746917 |
THRUST ROD |
|
26 |
771369 |
RETAINER |
|
27 |
16979431 |
NUT M8 |
|
28 |
10902121 |
HEXAGON BOLT M6X14 MM |
|
29 |
17101434 |
SPRING WASHER Ø6 MM |
|
30 |
771327 |
LEVER ASSY |
|
31 |
16602324 |
HEXAGON BOLT M5X25 MM |
|
32 |
17220820 |
KEY 3X5 MM |
|
33 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
34 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
35 |
17088474 |
WASHER Ø6X12 MM |
|
36 |
16603424 |
SCREW M6X10 |
|
37 |
17310501 |
FASTENING BRACKET Ø10 MM |
|
38 |
99453158 |
FASTENING BRACKET BUNDY |
|
39 |
8111232 |
GASKET |
|
40 |
8006355 |
COVER |
|
41 |
17094601 |
WASHER Ø6X11 MM |
|
42 |
17037821 |
HEXAGON NUT M6X1 |
