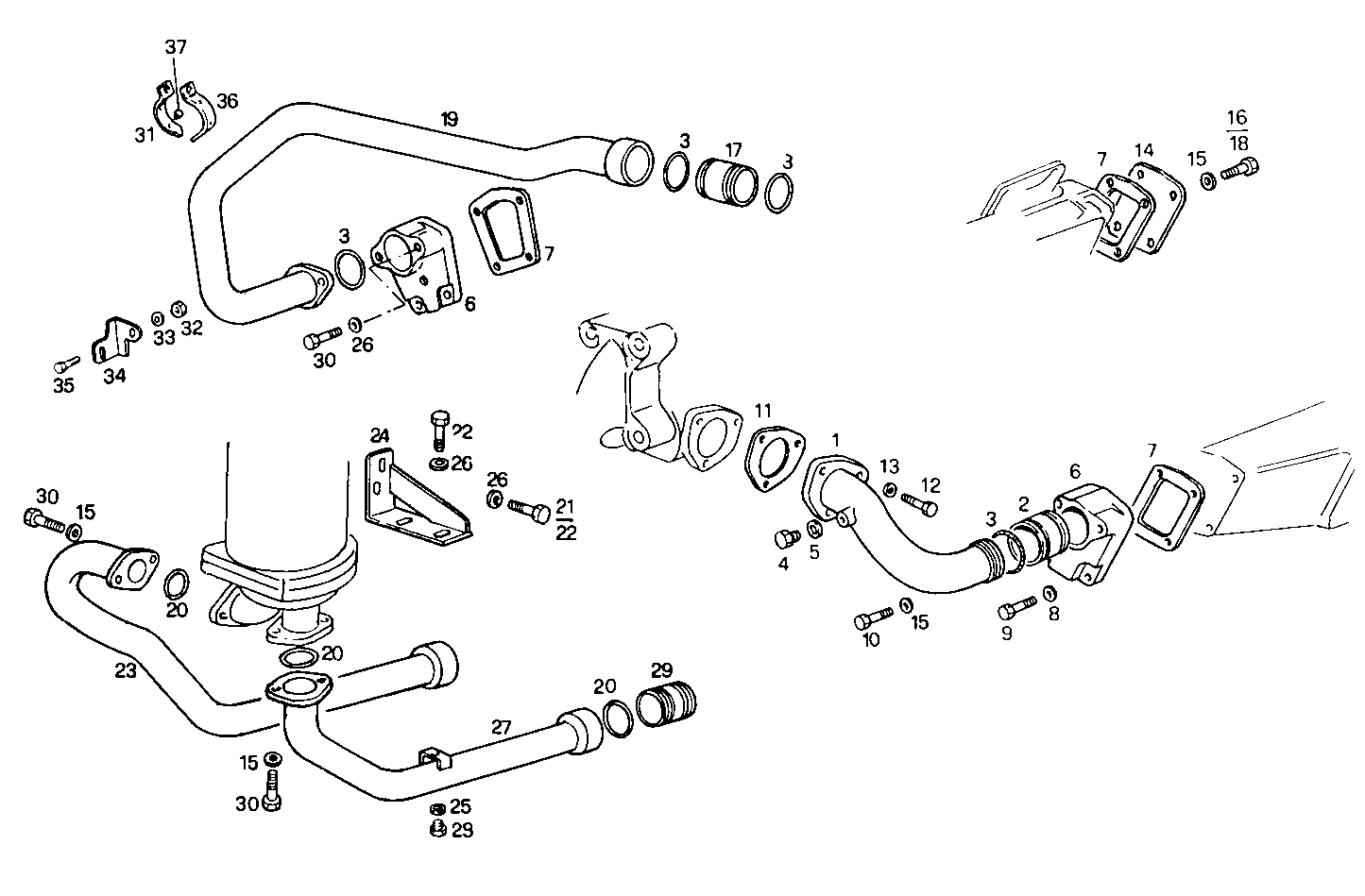

| Item |
Part number |
Description |
|
1 |
8109498 |
WATER PIPE |
|
2 |
8112495 |
CONNECTOR SLEEVE |
|
3 |
17289681 |
O-RING Ø44 MM SP=3,53 MM |
|
4 |
10300911 |
PLUG M8 |
|
5 |
4858605 |
WASHER Ø8X12 MM |
|
6 |
8109497 |
COVER |
|
7 |
8105608 |
GASKET |
|
8 |
17798274 |
SPRING WASHER Ø8,2X14,9 MM |
|
9 |
16691224 |
CYLIND-HEAD SCREW M8X55 MM |
|
10 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
11 |
4863539 |
FLAT ENGINE GASKET |
|
12 |
16604124 |
HEXAGON BOLT M6X40 MM |
|
13 |
17088474 |
WASHER Ø6X12 MM |
|
14 |
8113918 |
COVER |
|
15 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
16 |
16607024 |
HEXAGON BOLT M8X120 MM |
|
17 |
8018308 |
CONNECTOR SLEEVE |
|
18 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
19 |
8028180 |
WATER PIPE |
|
20 |
17289981 |
O-RING Ø53,57X3,53 MM |
|
21 |
16606024 |
SCREW M8X45 MM |
|
22 |
16605424 |
SCREW M8X16 MM (8.8) |
|
23 |
8028131 |
WATER PIPE |
|
24 |
8028257 |
RETAINER |
|
25 |
4858606 |
GASKET Ø10X14X1 MM |
|
26 |
17494834 |
WASHER Ø8 MM |
|
27 |
8028135 |
WATER PIPE |
|
28 |
16992111 |
THREADED PLUG M10X1 |
|
29 |
8026324 |
CONNECTOR SLEEVE |
|
31 |
8113298 |
CLAMP |
|
32 |
17038121 |
HEXAGON NUT M10 |
|
33 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
34 |
8028444 |
RETAINER |
|
35 |
16607424 |
SCREW M10X16 |
|
36 |
8113299 |
CLAMP |
|
37 |
1364290 |
DOWEL |
