8281SRM50.31A002

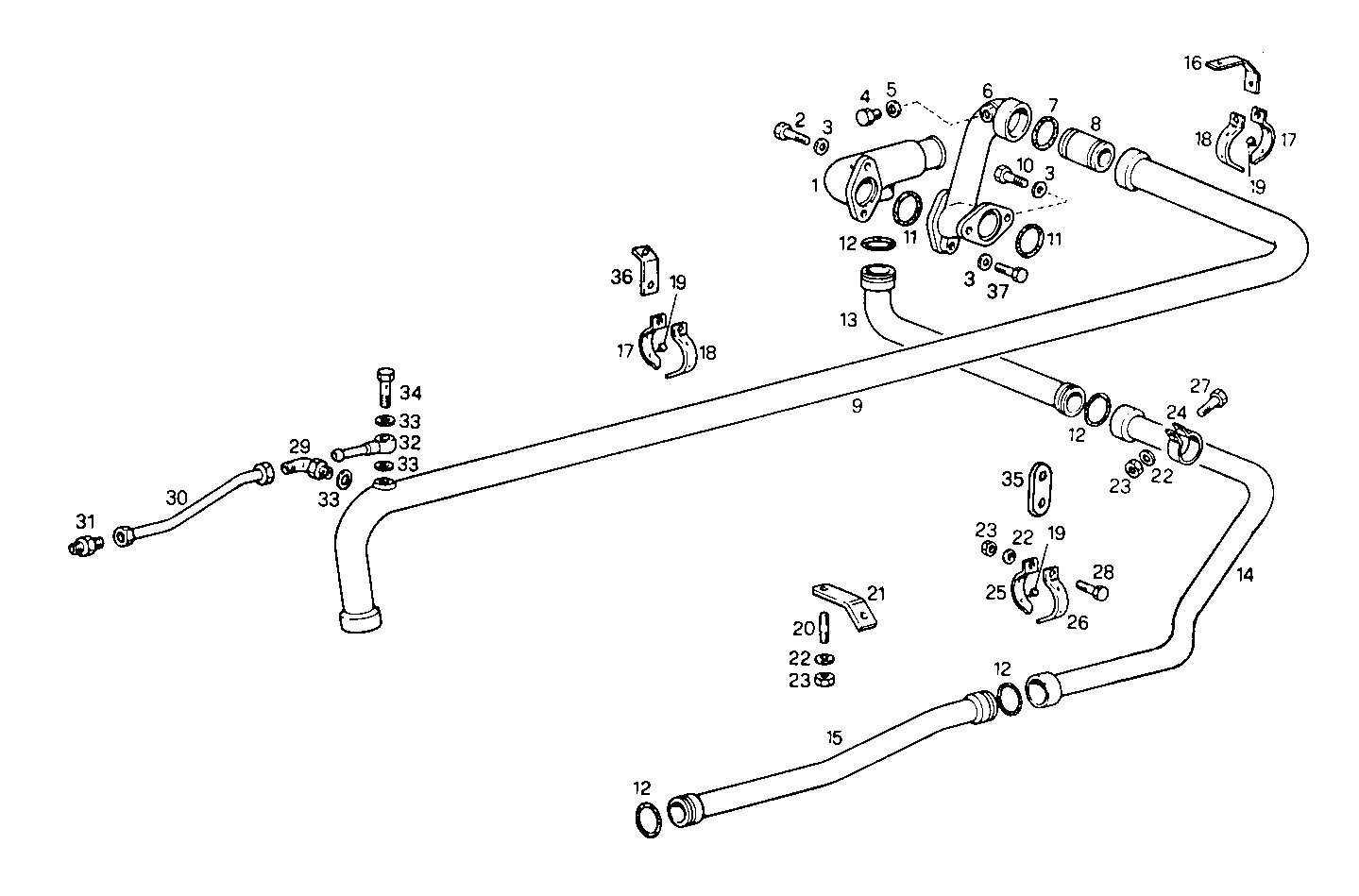

3210.231/04 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8113602 WATER PIPE
2 15540621 HEXAGON BOLT M12X40 MM
3 17091071 SPRING WASHER Ø12X24 SP=2,8 MM
4 16992211 THREADED PLUG M12X1,5
5 4858607 WASHER Ø12X17 MM SP=1,5 MM
6 8112884 WATER PIPE
7 17289681 O-RING Ø44 MM SP=3,53 MM
8 8112495 CONNECTOR SLEEVE
9 8112959 WATER PIPE
10 16610124 HEXAGON BOLT M12X40 MM
11 17283981 O-RING Ø50,4 MM SP=2,6 MM
12 17289181 O-RING 3,53x32,92
13 8112942 WATER PIPE
14 8112944 WATER PIPE
15 8007672 WATER PIPE
16 8113565 RETAINER
17 8113298 CLAMP
18 8113299 CLAMP
19 1366290 RUBBER LUG
20 16729284 STUD
21 8100407 RETAINER
22 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
23 17037931 HEXAGON NUT M8X1,25
24 8102910 CLIP
25 8113295 CLAMP Ø50 MM
26 8113296 CLAMP Ø50 MM
27 16605424 SCREW M8X16 MM (8.8)
28 16606524 HEXAGON BOLT M8X70 MM
29 8112247 PIPE SOCKET
30 8007687 WATER PIPE
31 8111316 PIPE SOCKET
32 4671700 SWIVEL COUPLING
34 4864082 BANJO BOLT M12X1,5X25 MM
35 8107204 RETAINER
36 8113568 RETAINER
37 16693824 CYLIND-HEAD SCREW M12X30 MM
