8281SRM50.31A002

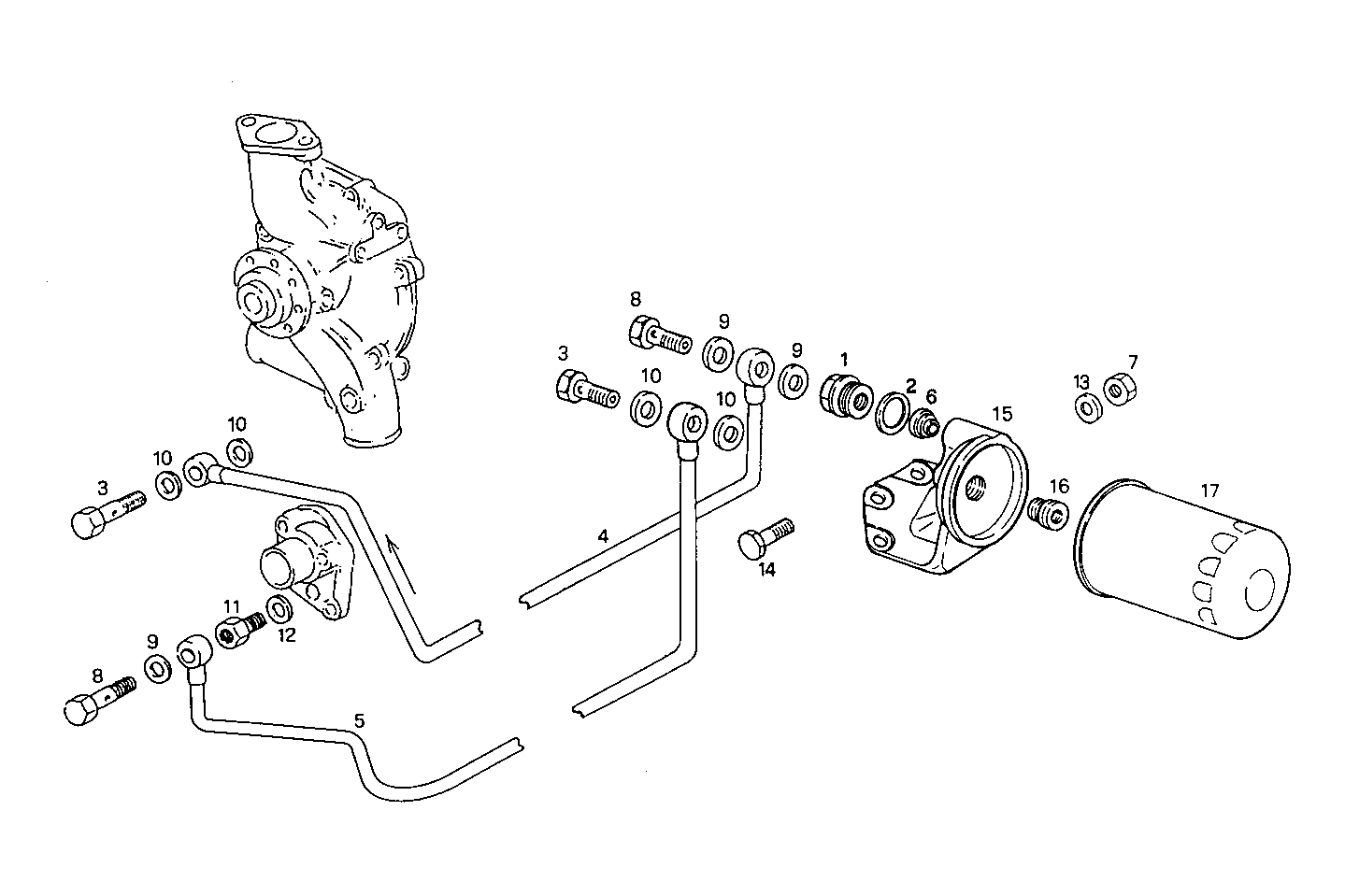

3280.026 WATER FILTER

Iveco/FPT WATER FILTER

Item Part number Description
1 4623465 FLANGED SOCKET
2 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
3 4864084 BANJO BOLT M16X1,5
4 8028219 WATER PIPE
5 8025009 WATER PIPE
6 61316100 VALVE
7 17037931 HEXAGON NUT M8X1,25
8 4864083 SCREW CONNECTOR M14X1,5X30 MM
9 98474308 SEAL GASKET Ø14X22 MM
10 98474309 WASHER Ø16X24 MM SP=1,9 MM
11 4928330 PIPE SOCKET M16X1,5/M14X1,5
12 4858609 WASHER Ø16X22 MM SP=1,5 MM
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 16605424 SCREW M8X16 MM (8.8)
15 8023354 SUPPORT
16 4807730 BREATHER CONN.
17 1907694 WATER FILTER CARTRIDGE
