8281SRM50.31A002

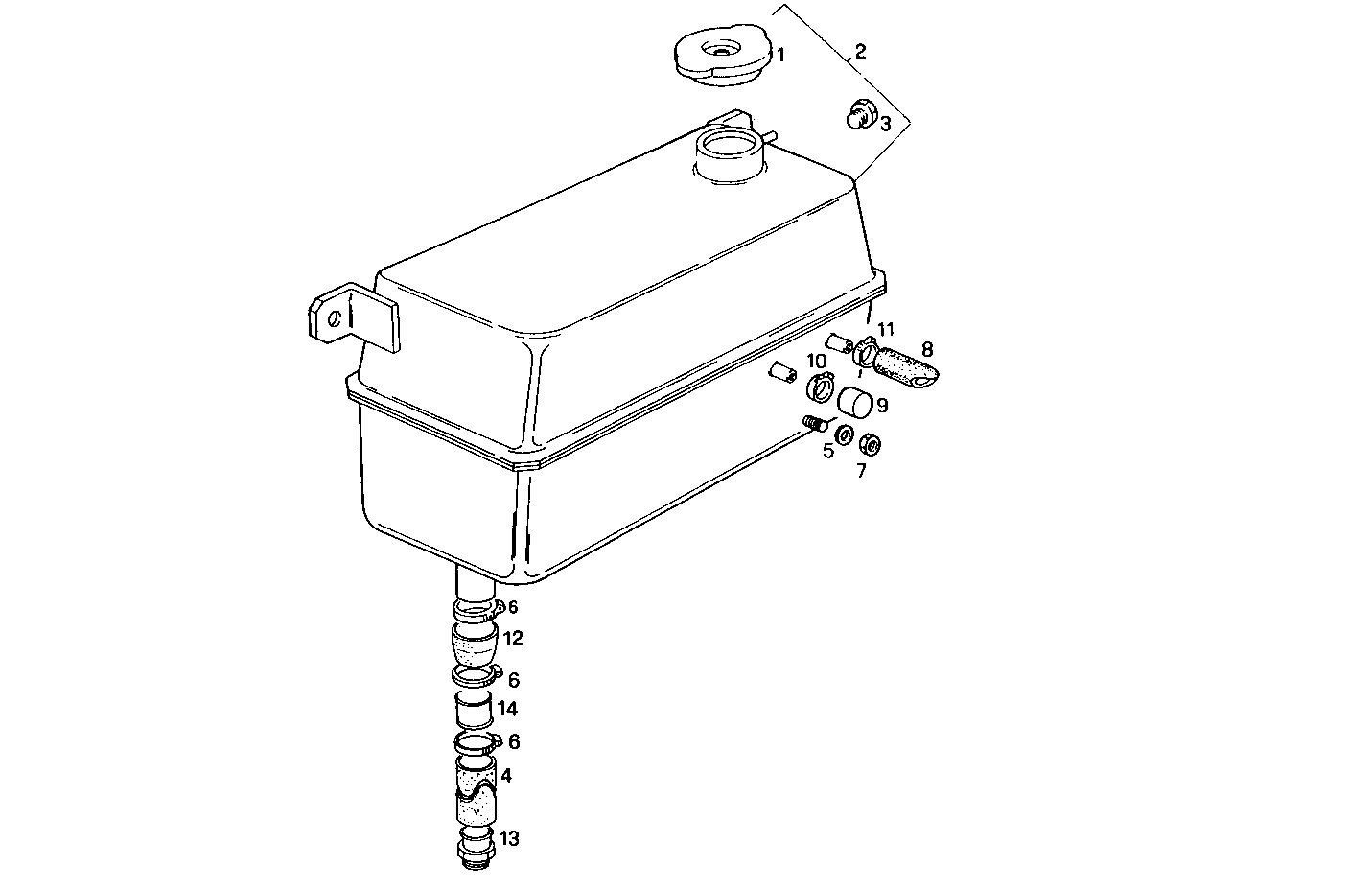

8600.082/02 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 8109172 | PLUG |
| 2 | 8109443 | WATER EXPANSION TANK ASSY |
| 3 | 8105096 | PLUG |
| 4 | 8028970 | WATER HOSE |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 17764693 | CLIP Ø25/40 MM |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 8 | 19070287 | WATER HOSE L=1100 MM |
| 9 | 8113817 | PLUG |
| 10 | 18088293 | CLIP Ø12/20 MM |
| 11 | 18087993 | CLIP Ø8/16 MM |
| 12 | 8028998 | RUBBER SLEEVE |
| 13 | 8027977 | PIPE SOCKET |
| 14 | 8028969 | FILLER NECK |
