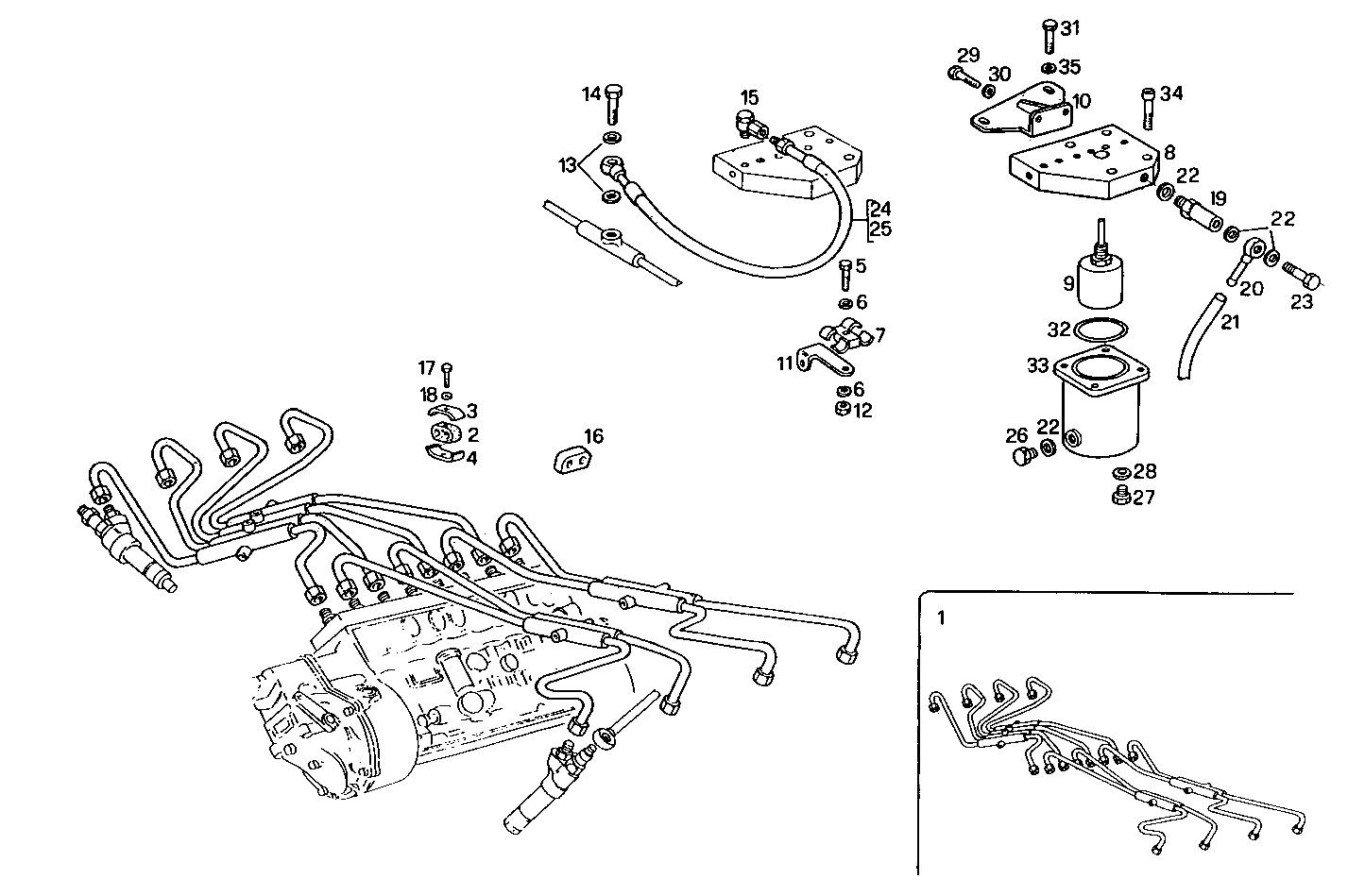

| Item |
Part number |
Description |
|
1 |
8025703 |
INJECTION LINES SET |
|
2 |
4659217 |
DOWEL |
|
3 |
4659218 |
CLIP |
|
4 |
4659219 |
PLATE |
|
5 |
16602524 |
SCREW |
|
6 |
17094504 |
WASHER Ø5,3X10 MM |
|
7 |
8030239 |
CLIP Ø15 MM |
|
8 |
8030234 |
DISTRIBUTOR |
|
9 |
8102285 |
INDICATOR |
|
10 |
8030223 |
SUPPORT |
|
11 |
8025357 |
RETAINER |
|
12 |
17152621 |
NUT M5X0,8 |
|
13 |
98474303 |
WASHER Ø8X14 MM SP=2,3 MM |
|
14 |
4864078 |
BANJO BOLT M8X1,25 |
|
15 |
8026816 |
SCREW CONNECTOR ASSY M10X1 |
|
16 |
8110955 |
RUBBER PAD |
|
17 |
10978021 |
HEXAGON BOLT M5X20 MM |
|
18 |
12601179 |
WASHER |
|
19 |
8102465 |
VALVE |
|
20 |
16500214 |
THREADED UNION M14X1,5/M16X1,5 |
|
21 |
8030230 |
HOSE |
|
22 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
23 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
24 |
8030220 |
HOSE L=400 MM |
|
25 |
8030221 |
HOSE L=600 MM |
|
26 |
16992311 |
LOCK PLUG M14X1,5 |
|
27 |
16992211 |
THREADED PLUG M12X1,5 |
|
28 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
29 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
30 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
31 |
15540324 |
SCREW M12X1,25X25 |
|
32 |
17290081 |
O-RING Ø56,74 MM SP=3,53 MM |
|
33 |
8026365 |
TANK |
|
34 |
16689424 |
SOCKET-HEAD SCREW M6X30 MM |
|
35 |
17091074 |
WASHER Ø12X24X2,8 MM |
