8281SRM50.32

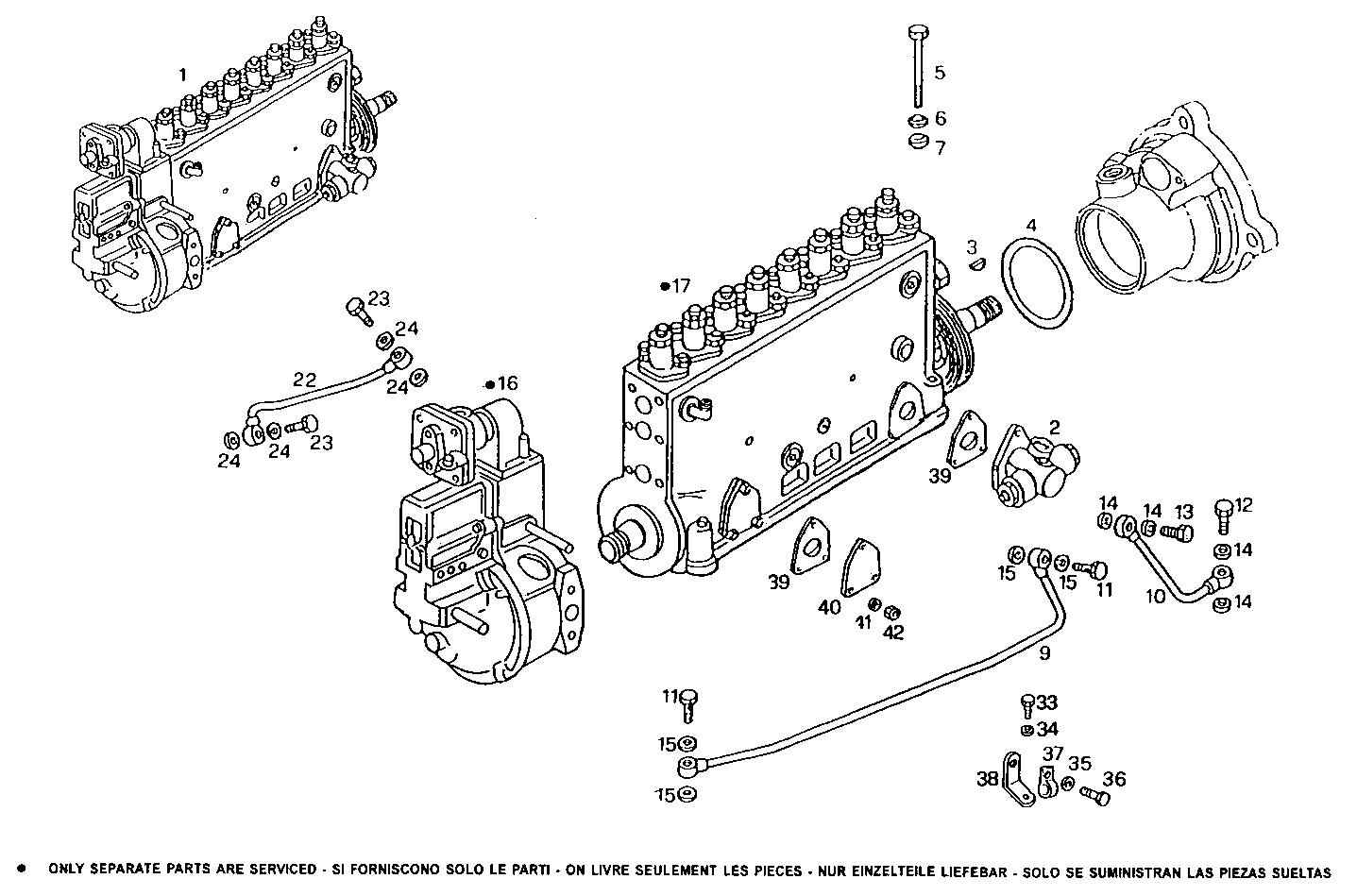

1400.337 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8025569 INLINE INJECT.PUMP ASSY BOSCH
2 93160510 FUEL PUMP OPT.
3 17257870 DOWEL PIN Ø6 MM
4 61317062 O-RING
5 15971334 SCREW M10X1,25X75
6 17090274 WASHER Ø10X20 MM
7 756671 WASHER
9 98438719 OIL LINE
10 8015443 OIL LINE
11 4864083 SCREW CONNECTOR M14X1,5X30 MM
12 4864080 SCREW CONNECTOR M10X1,25
13 4864079 SCREW CONNECTOR M10X1
14 98474305 WASHER Ø10X17 MM SP=2,3
15 98474308 SEAL GASKET Ø14X22 MM
22 8018769 FUEL LINE L=240 MM
23 4864082 BANJO BOLT M12X1,5X25 MM
24 98474306 WASHER Ø12X20 MM SP=1,9 MM
33 16605524 HEXAGON BOLT M8X20 MM
34 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
35 17088474 WASHER Ø6X12 MM
36 16603424 SCREW M6X10
37 17310501 FASTENING BRACKET Ø10 MM
38 99453158 FASTENING BRACKET BUNDY
39 8111232 GASKET
40 8006355 COVER
41 17094601 WASHER Ø6X11 MM
42 17037821 HEXAGON NUT M6X1
