8281SRM50.32

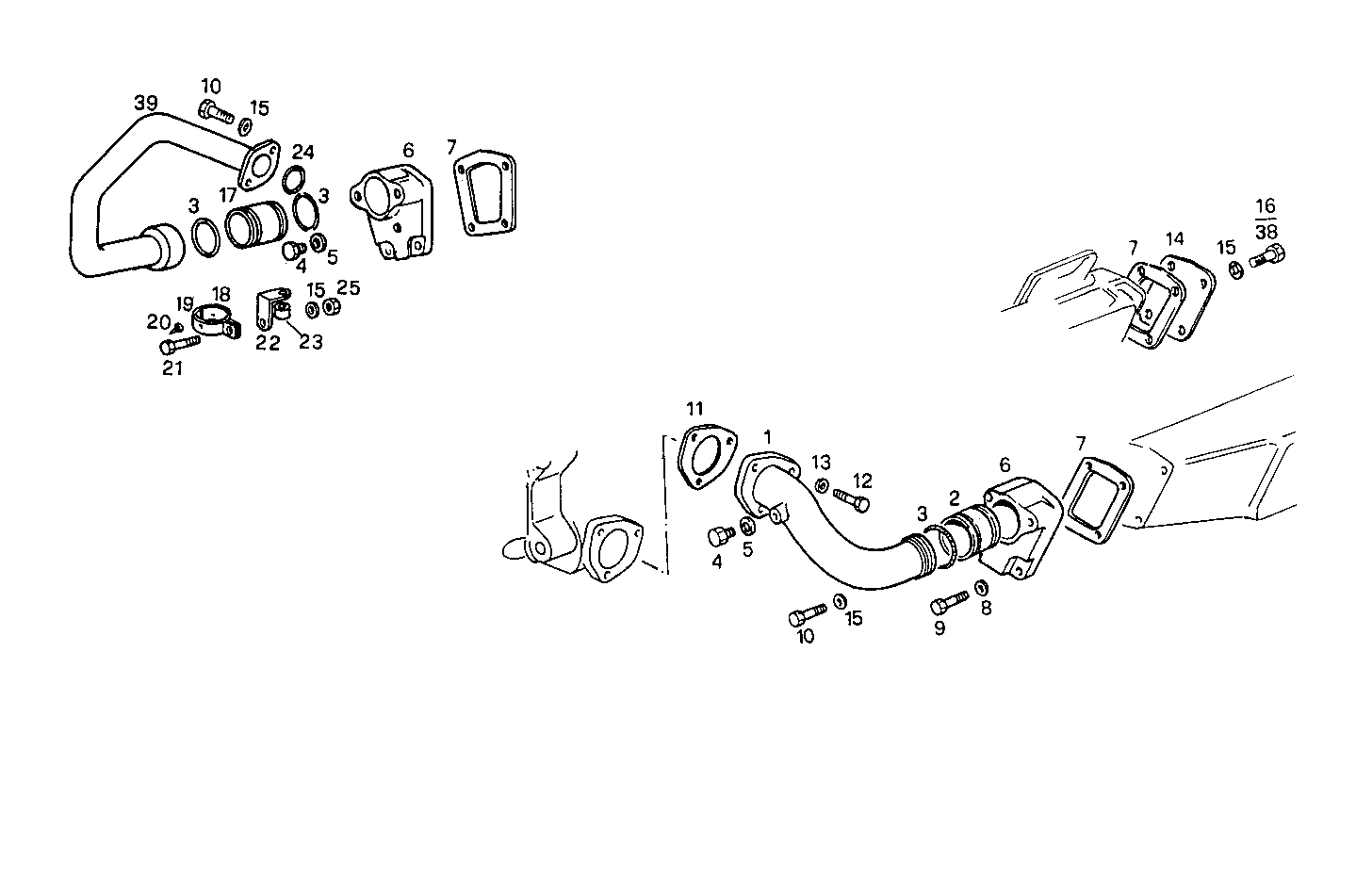

3210.229/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8109498 WATER PIPE
2 8112495 CONNECTOR SLEEVE
3 17289681 O-RING Ø44 MM SP=3,53 MM
4 10300911 PLUG M8
5 4858605 WASHER Ø8X12 MM
6 8109497 COVER
7 8105608 GASKET
8 17798274 SPRING WASHER Ø8,2X14,9 MM
9 16691224 CYLIND-HEAD SCREW M8X55 MM
10 16605524 HEXAGON BOLT M8X20 MM
11 4863539 FLAT ENGINE GASKET
12 16604124 HEXAGON BOLT M6X40 MM
13 17088474 WASHER Ø6X12 MM
14 8113918 COVER
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 16607024 HEXAGON BOLT M8X120 MM
17 8018308 CONNECTOR SLEEVE
18 8113299 CLAMP
19 8113298 CLAMP
20 1366290 RUBBER LUG
21 16605624 HEXAGON BOLT M8X25 MM (8.8)
22 8025358 RETAINER
23 17816314 SPACING BAR Ø8,5X18 MM SP=15 MM
24 17283781 O-RING Ø47,29X2,62 MM
25 17037931 HEXAGON NUT M8X1,25
38 16605734 HEXAGON BOLT M8X30 MM
39 8024953 WATER PIPE
