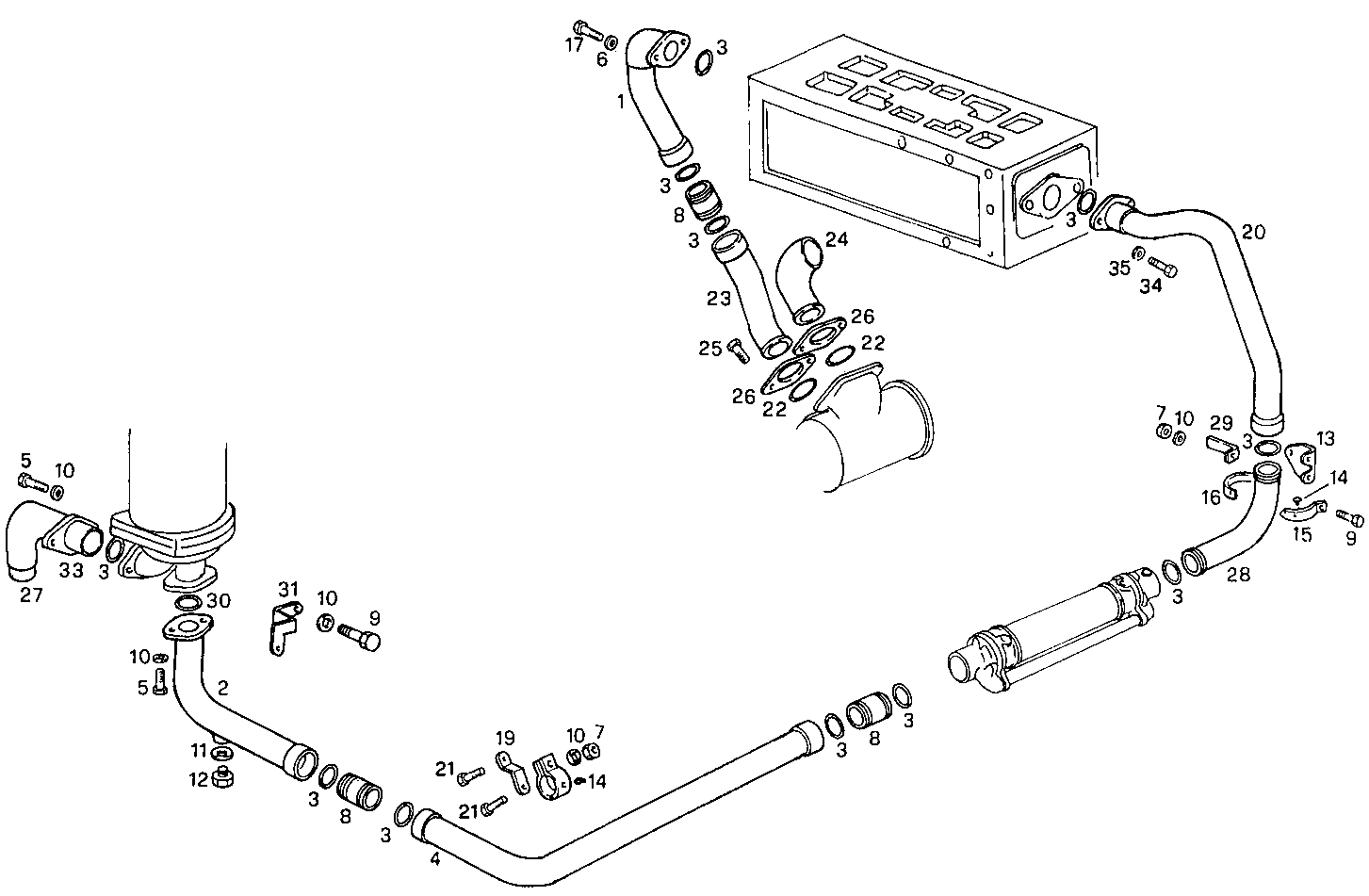

| Item |
Part number |
Description |
|
1 |
8111560 |
WATER PIPE |
|
2 |
8025090 |
WATER PIPE |
|
3 |
17289981 |
O-RING Ø53,57X3,53 MM |
|
4 |
8030872 |
WATER PIPE |
|
5 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
6 |
17091071 |
SPRING WASHER Ø12X24 SP=2,8 MM |
|
7 |
17037931 |
HEXAGON NUT M8X1,25 |
|
8 |
8026324 |
CONNECTOR SLEEVE |
|
9 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
10 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
11 |
4858606 |
GASKET Ø10X14X1 MM |
|
12 |
16992111 |
THREADED PLUG M10X1 |
|
13 |
8007518 |
RETAINER |
|
14 |
1366290 |
RUBBER LUG |
|
15 |
8113295 |
CLAMP Ø50 MM |
|
16 |
8113296 |
CLAMP Ø50 MM |
|
17 |
16609824 |
HEXAGON BOLT M12X1,75X25 MM |
|
19 |
8025089 |
RETAINER |
|
20 |
8007488 |
WATER PIPE |
|
21 |
16605424 |
SCREW M8X16 MM (8.8) |
|
22 |
17290281 |
O-RING Ø63,09 MM SP=3,53 MM |
|
23 |
8111432 |
WATER PIPE |
|
24 |
8111431 |
WATER PIPE INLET |
|
25 |
16587121 |
SCREW |
|
26 |
8111433 |
FLANGE |
|
27 |
8026482 |
WATER PIPE |
|
28 |
8027108 |
WATER PIPE |
|
29 |
4849425 |
RETAINER |
|
30 |
17289881 |
O-RING Ø50,3 MM SP=3,5 MM |
|
31 |
8025286 |
RETAINER |
|
33 |
8022237 |
FLANGE |
|
34 |
14331121 |
CYLIND-HEAD SCREW M12X30 MM |
|
35 |
17495034 |
SPRING WASHER M12X1,75X25 |
