8281SRM50.32

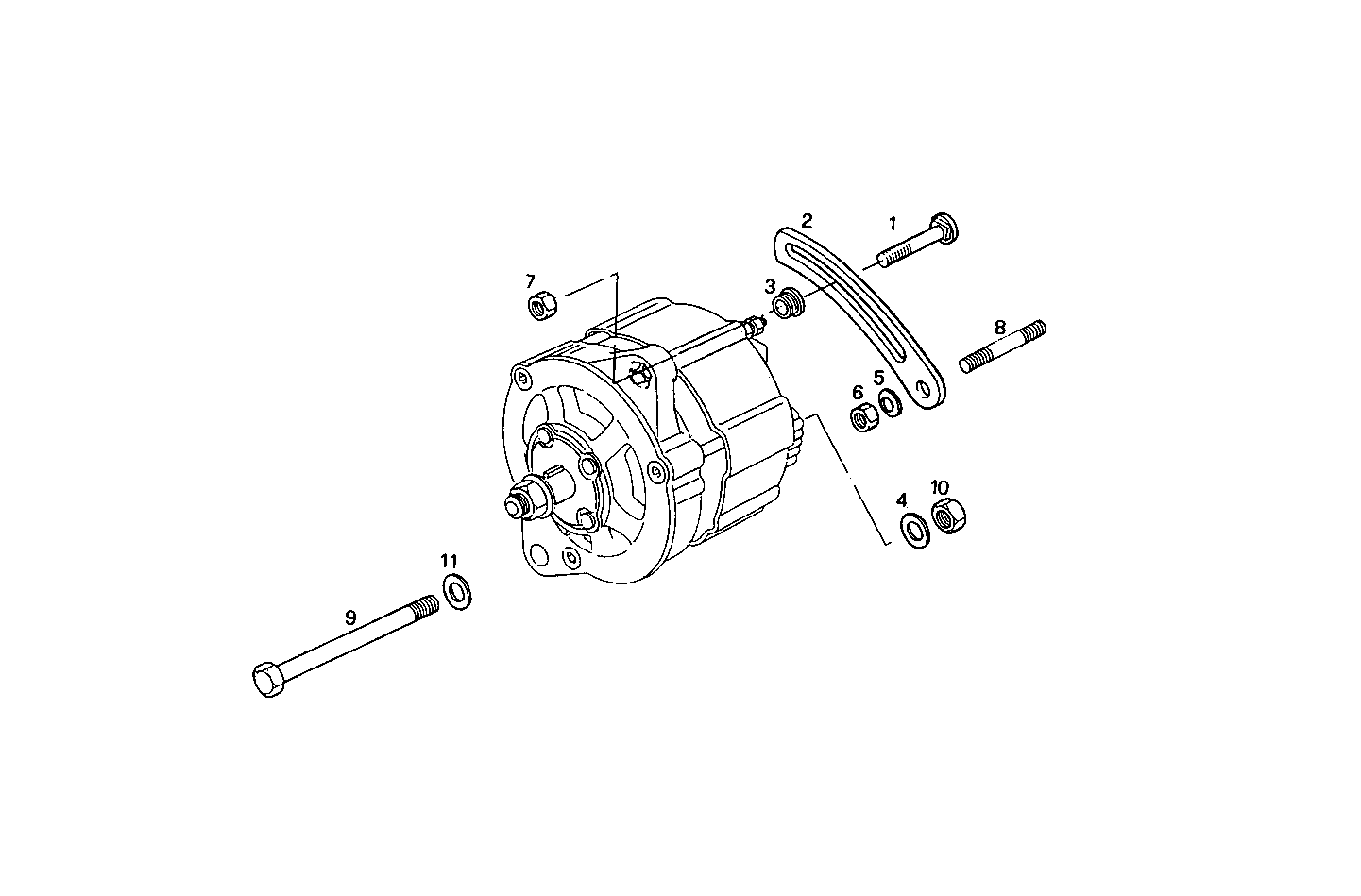

4010.112 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4799044 | THREADED PIN |
| 2 | 4763084 | BRACE/STRUT |
| 3 | 4677044 | SPACING BAR |
| 4 | 17091174 | SPRING WASHER Ø12X24 MM |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 17038121 | HEXAGON NUT M10 |
| 7 | 12574511 | NUT M10X1,25 |
| 8 | 16731124 | STUD M10X20 |
| 9 | 16611224 | HEXAGON BOLT M12X120 MM |
| 10 | 17038421 | HEXAGON NUT M12 (8) |
| 11 | 17095304 | WASHER Ø12X24 MM |
