8281SRM70.10

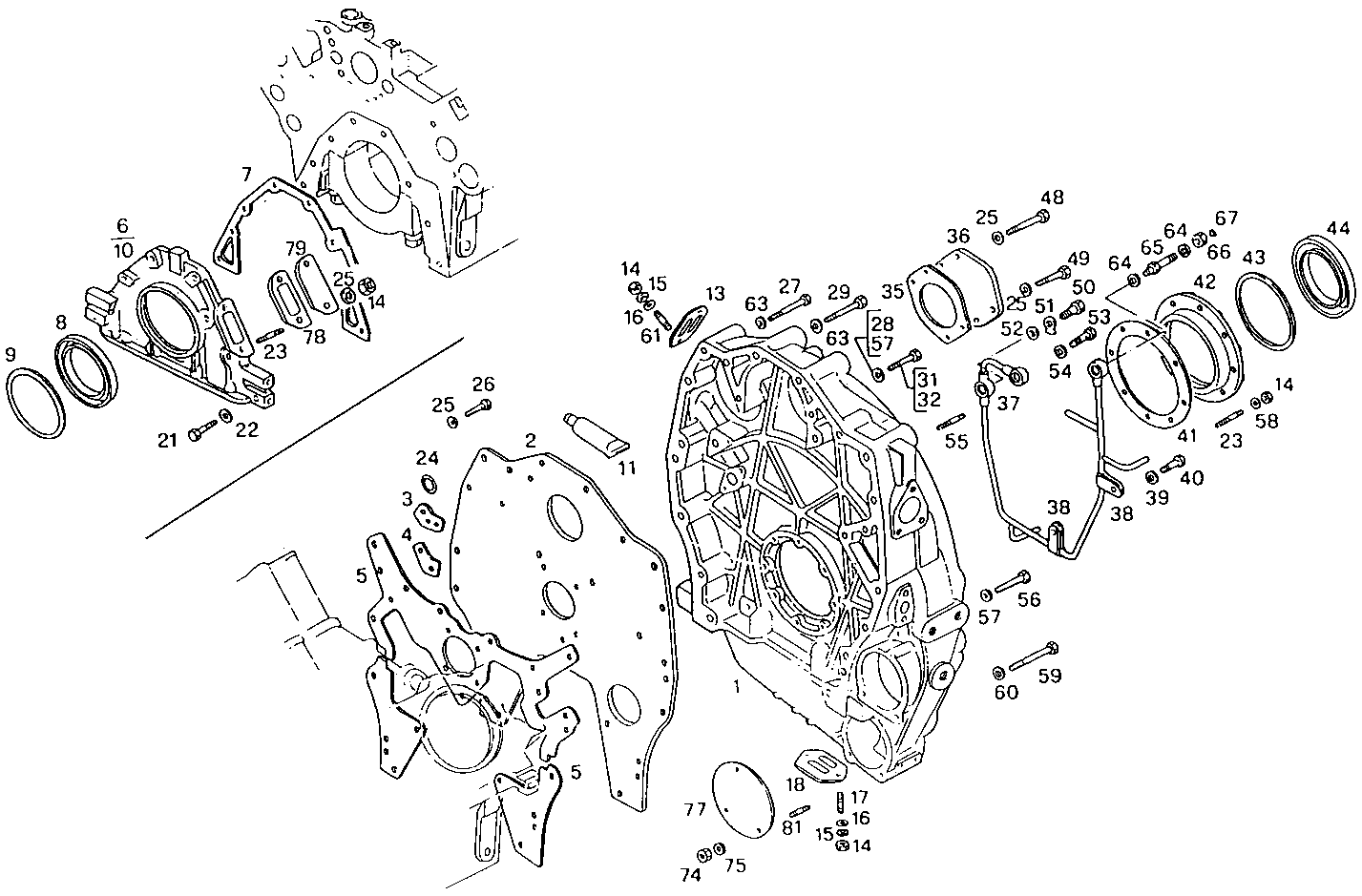

0430.175 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4736951 FRONT C.CASE COVER ASSY [from ...]
2 4831136 PLATE
3 4831139 PLATE LEFT
4 4831138 PLATE RIGHT
5 4804903 FLAT ENGINE GASKET
6 99440755 FRONT C.CASE COVER ASSY [from 235184]
7 4863506 FLAT ENGINE GASKET
8 98499175 SHAFT SEAL
9 4714245 RING [up to 235183]
10 4702590 FRONT C.CASE COVER ASSY [up to 235183]
11 1905685 ADHESIVE/STICKER LOCTITE
13 4695921 COVER
14 17037931 HEXAGON NUT M8X1,25
15 11198071 SPRING WASHER Ø8X15 SP=1,4 MM
16 10519601 WASHER Ø8X17 MM
17 13516521 STUD M8X12 MM
18 4706083 COVER
21 16605824 HEXAGON BOLT M8X35 MM
22 12646701 WASHER Ø8X20 MM
23 15343121 STUD
24 14457181 O-RING Ø13,94 MM SP=2,62 MM
25 11198371 SPRING WASHER Ø10X20 MM
26 15970730 HEXAGON BOLT M10X25 MM
27 15972521 HEXAGON BOLT M10X135 MM
28 12626221 WASHER Ø10X25 MM [up to ...]
29 15973021 HEXAGON BOLT M10X1,25X170 MM
31 15971730 SCREW [up to ...]
32 15541630 HEXAGON BOLT M12X100 MM
35 4863492 GASKET
36 4858639 COVER
37 4687527 OIL LINE
38 852410 FASTENING BRACKET
39 13550301 WASHER Ø8,15 MM
40 16042921 SCREW M8X10
41 4863494 FLAT ENGINE GASKET
42 4729209 SUPPORT
43 4714086 RING [up to 328262]
44 98499176 SHAFT SEAL
48 15970021 HEXAGON BOLT M10X1,25X155 MM
49 15972321 HEXAGON BOLT M10X125 MM
50 4503811 SCREW CONNECTOR M10X1,25
51 852409 LOCKING PLATE Ø10,5 MM
52 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
53 11903717 SCREW CONNECTOR M8
54 10260060 SEAL GASKET Ø8X12X1 MM
55 13453721 STUD M10X25X30
56 15543021 HEXAGON BOLT M12X105 MM
57 12646921 WASHER Ø12X28 MM
58 11198171 SPRING WASHER Ø8,4 MM
59 15978030 HEXAGON BOLT M14X105 MM
60 4604279 SPRING WASHER Ø14X32 MM SP=4 MM
61 13543021 STUD M8X16X14
63 11198771 WASHER Ø12X30X3,4 MM
64 10298360 SEAL GASKET Ø10X16 MM SP=1 MM
65 4677753 SCREW CONNECTOR
66 16979731 NUT M10X1,25
67 14452680 O-RING
74 17038821 HEXAGON NUT M14
75 11200171 SPRING WASHER Ø15 MM
77 4721732 COVER
78 4863491 FLAT ENGINE GASKET
79 4672883 PLATE
81 11797421 STUD M14X20X35
