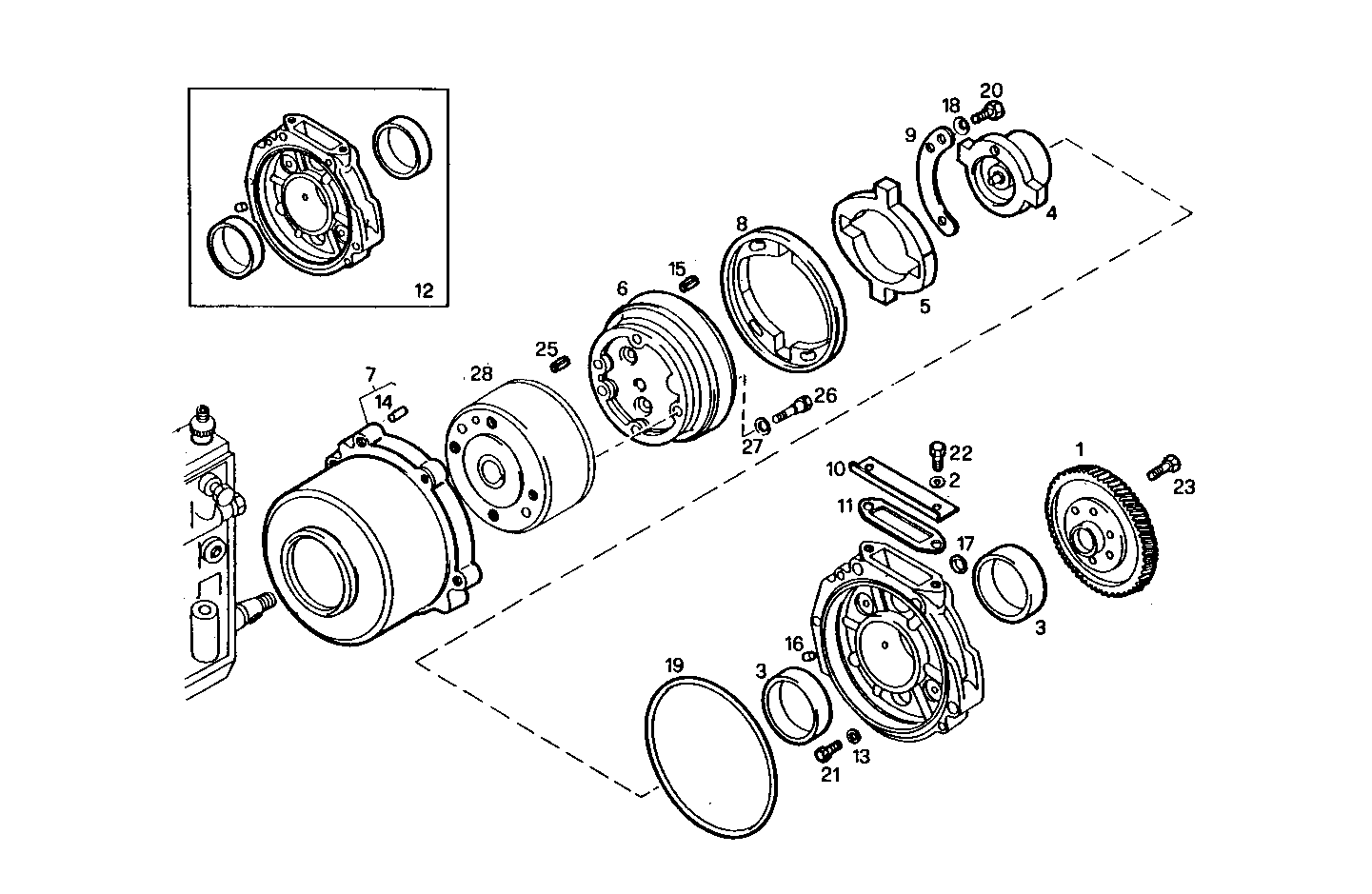

| Item |
Part number |
Description |
|
1 |
4859822 |
INJ.PUMP DRIV.GEA |
|
2 |
17094914 |
WASHER 8x16 |
|
3 |
4686615 |
BUSH |
|
4 |
98472241 |
SHAFT |
|
5 |
4797215 |
FLANGE |
|
6 |
8007059 |
SPACING BAR |
|
7 |
4686275 |
HOUSING ASSY |
|
8 |
4797214 |
FLANGE |
|
9 |
4695415 |
STOP PLATE |
|
10 |
4703707 |
COVER |
|
11 |
4863493 |
FLAT ENGINE GASKET |
|
12 |
4799335 |
SUPPORT ASSY |
|
13 |
17089874 |
WASHER Ø8X22 MM |
|
14 |
10837610 |
DOWEL PIN Ø8 MM |
|
15 |
14603740 |
DOWEL PIN |
|
16 |
10269150 |
LOCK PLUG M6X1 |
|
17 |
17281481 |
O-RING Ø10,7 MM SP=2,6 MM |
|
18 |
17090271 |
WASHER Ø10X20X2,6 MM |
|
19 |
17293481 |
O-RING Ø177,4 MM SP=3,5 MM |
|
20 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
21 |
16043321 |
HEXAGON BOLT M8X18 MM |
|
22 |
16043021 |
HEXAGON BOLT M8X12 MM |
|
23 |
14348931 |
SCREW M10X1,25X25 |
|
25 |
4686653 |
DOWEL PIN |
|
26 |
4735951 |
SCREW |
|
27 |
11198474 |
SPRING WASHER Ø10X27 MM |
|
28 |
4756609 |
ADVANCE UNIT ASSY WEBER ALTECNA |
