8281SRM70.10

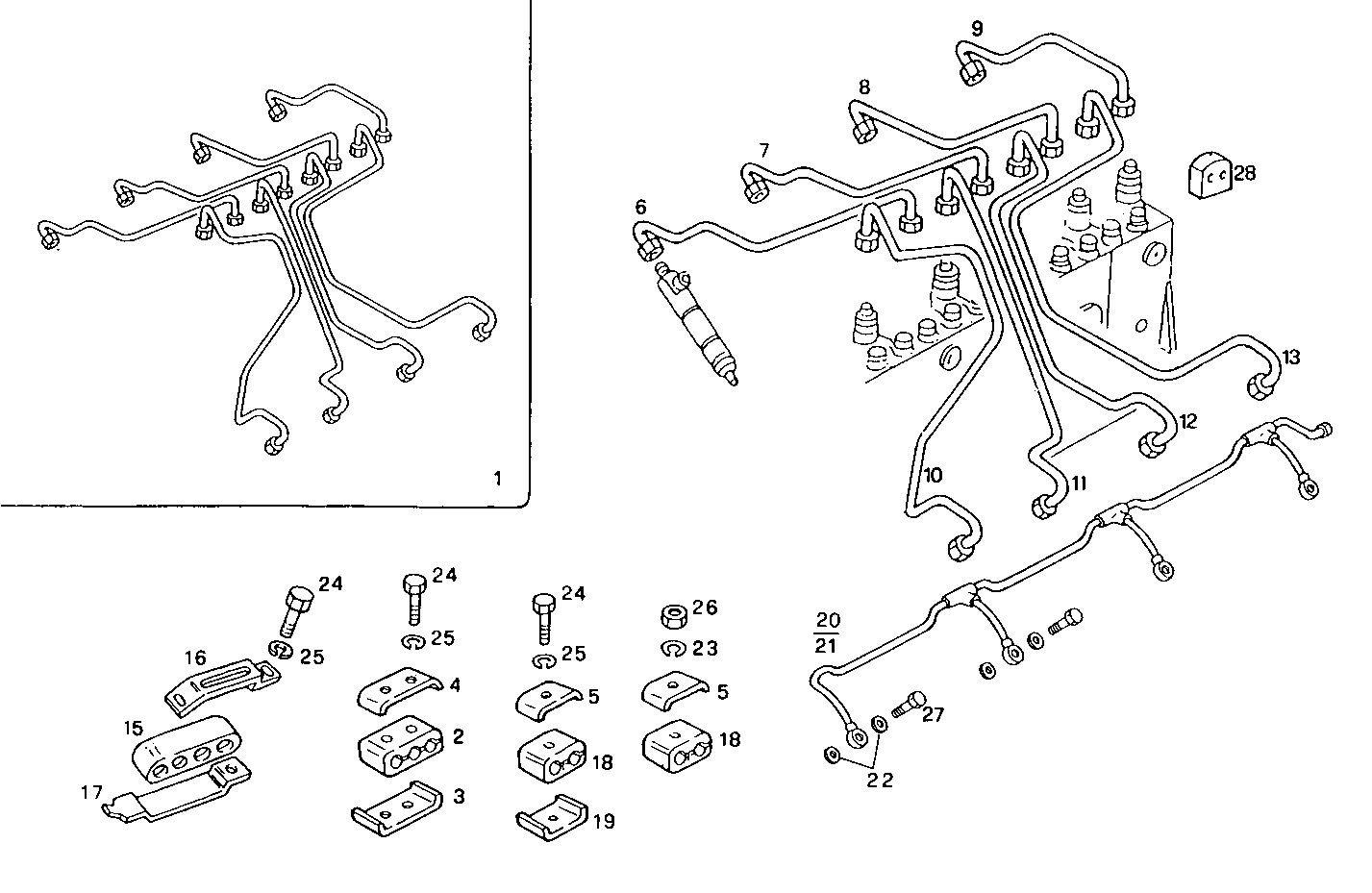

2020.012 INJECTION PIPES

Iveco/FPT INJECTION PIPES

Item Part number Description
1 4746646 INJECTION LINE SET
2 4543282 CHOCK
3 4641875 CLIP
4 4641876 CLIP
5 4703602 CLAMP
6 4746647 INJECTION LINE
7 4746648 INJECTION LINE
8 4746649 INJECTION LINE
9 4746650 INJECTION LINE
10 4746651 INJECTION LINE
11 4746652 INJECTION LINE
12 4746653 INJECTION LINE
13 4746654 INJECTION LINE
15 4694275 DOWEL
16 4746525 CLAMP
17 4746592 CLAMP
18 4746524 SPRING CLAMP
19 4641874 RETAINER TOP
20 4834143 INJECTION LINE RIGHT
21 4834144 INJECTION LINE LEFT
22 98474303 WASHER Ø8X14 MM SP=2,3 MM
23 17088974 SPRING WASHER Ø6X18X1,4 MM
24 16602224 HEXAGON BOLT M5X20 MM
25 17494634 SPRING WASHER Ø5,1X9,2 MM
26 17787270 HEXAGON NUT M6
27 4864083 SCREW CONNECTOR M14X1,5X30 MM
28 4696015 RUBBER PAD
