8281SRM70.10

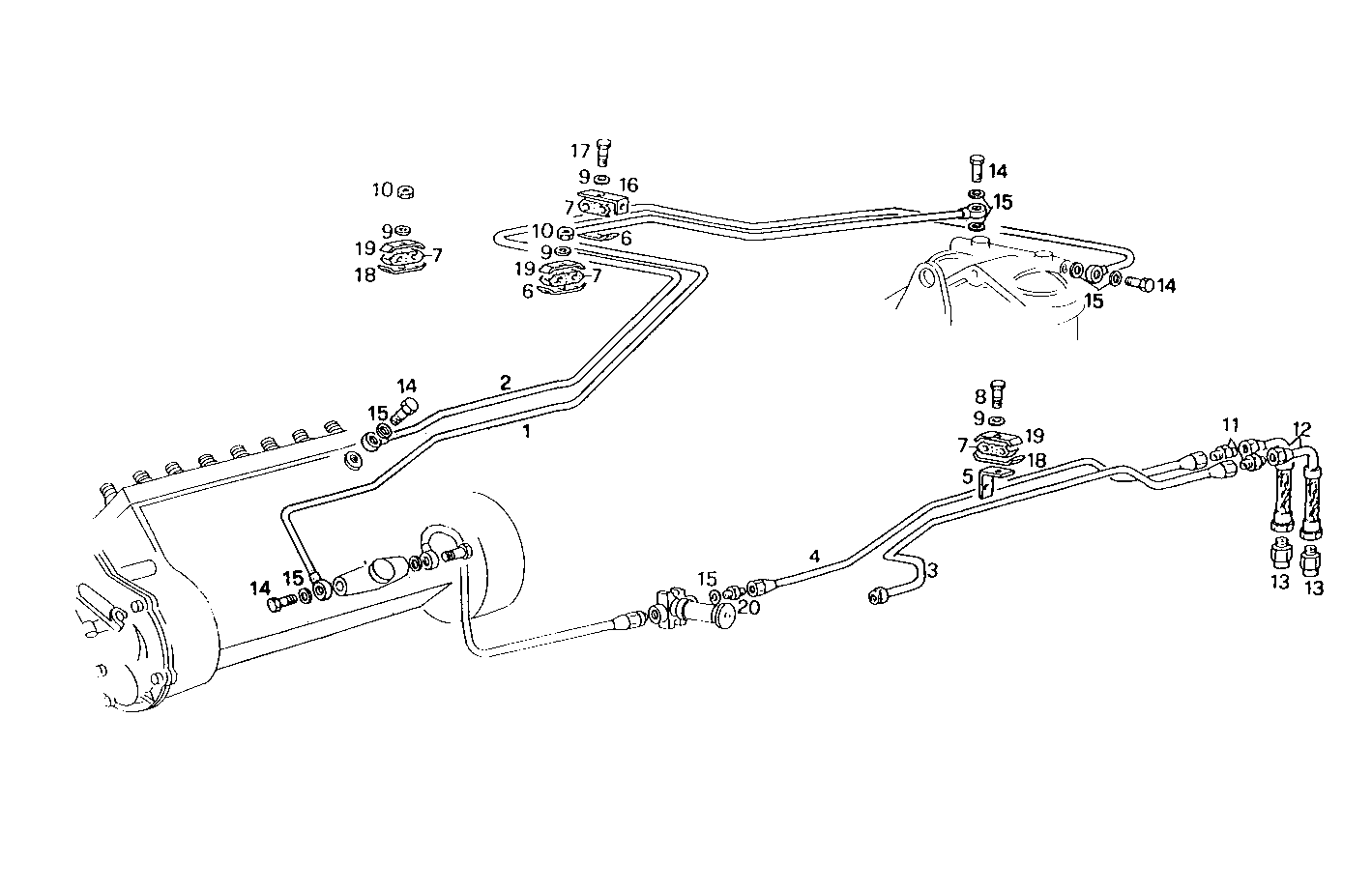

2030.019/02 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8014618 | FUEL LINE |
| 2 | 8014619 | FUEL LINE |
| 3 | 8112077 | INJECTION LINE |
| 4 | 8112070 | FUEL LINE |
| 5 | 8102227 | RETAINER |
| 6 | 4641551 | CLAMP |
| 7 | 4871771 | RUBBER LUG |
| 8 | 10902621 | SCREW M6X25 MM |
| 9 | 17088971 | SPRING WASHER Ø6X18 MM |
| 10 | 15896211 | HEXAGON NUT M6 |
| 11 | 8112283 | PIPE SOCKET |
| 12 | 8112285 | FUEL LINE |
| 13 | 8112284 | PIPE SOCKET |
| 14 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 15 | 98474308 | SEAL GASKET Ø14X22 MM |
| 16 | 8112079 | RETAINER |
| 17 | 10902821 | HEXAGON BOLT M6X30 MM |
| 18 | 4644289 | CLIP |
| 19 | 4644288 | CLIP |
| 20 | 16500211 | THREADED UNION |
