8281SRM70.11

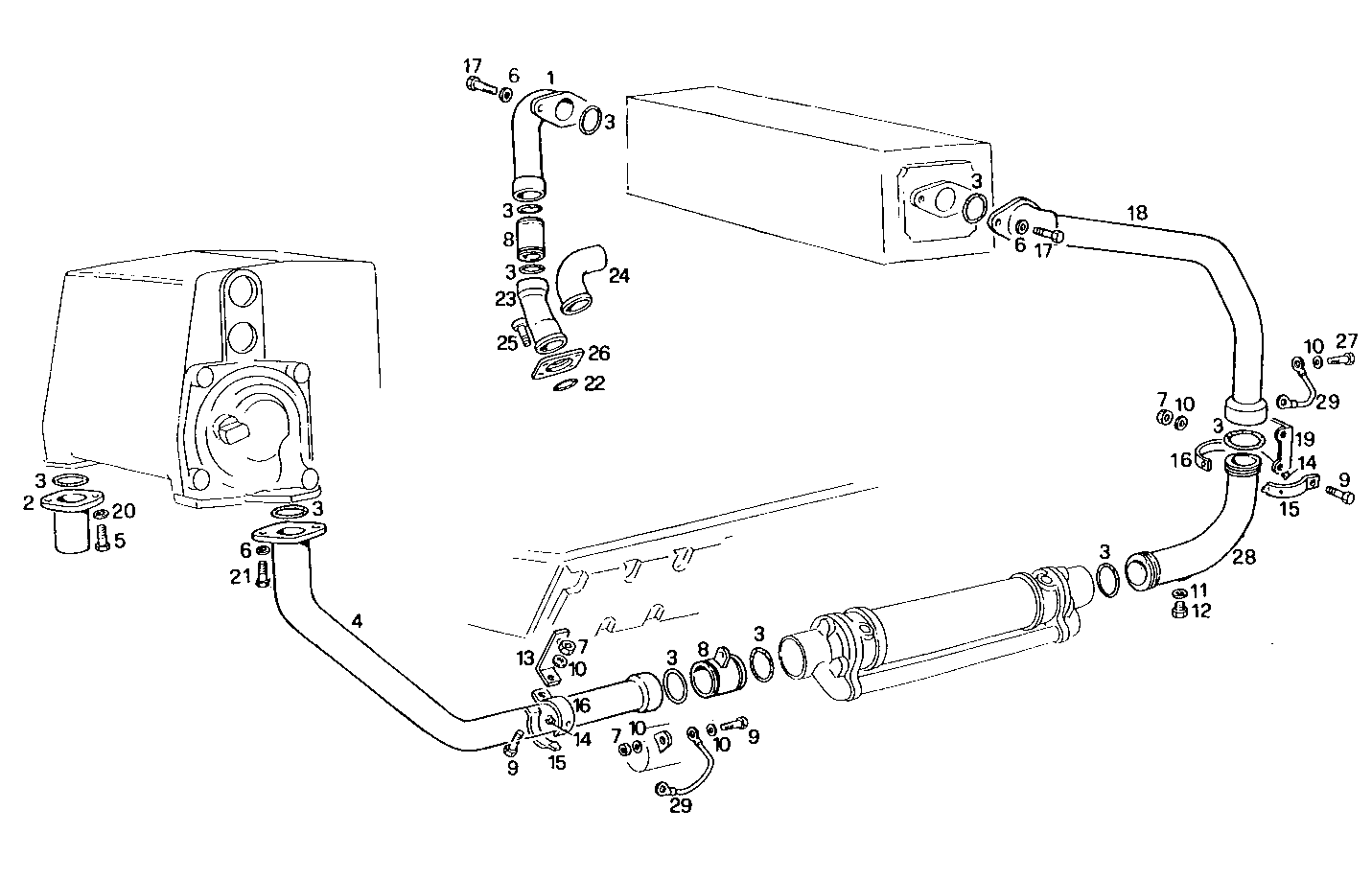

3390.011 SEA WATER LINES

Iveco/FPT SEA WATER LINES

Item Part number Description
1 8111560 WATER PIPE
2 8006215 WATER PIPE
3 17289981 O-RING Ø53,57X3,53 MM
4 8112478 WATER PIPE
5 14331121 CYLIND-HEAD SCREW M12X30 MM
6 17091071 SPRING WASHER Ø12X24 SP=2,8 MM
7 17037931 HEXAGON NUT M8X1,25
8 8112496 CONNECTION L=90 MM
9 16605524 HEXAGON BOLT M8X20 MM
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 4858606 GASKET Ø10X14X1 MM
12 11903140 PLUG M10X1,25
13 8113297 RETAINER
14 1366290 RUBBER LUG
15 8113295 CLAMP Ø50 MM
16 8113296 CLAMP Ø50 MM
17 16609824 HEXAGON BOLT M12X1,75X25 MM
18 8007488 WATER PIPE
19 8007518 RETAINER
20 17495034 SPRING WASHER M12X1,75X25
21 15540421 SCREW M12X1,25X30
22 17290281 O-RING Ø63,09 MM SP=3,53 MM
23 8111432 WATER PIPE
24 8111431 WATER PIPE INLET
25 16587124 HEXAGON BOLT M10X25 MM
26 8111433 FLANGE
27 16605424 SCREW M8X16 MM (8.8)
28 8027108 WATER PIPE
29 8113786 ENGINE HARNESS GND
