8281SRM70.11

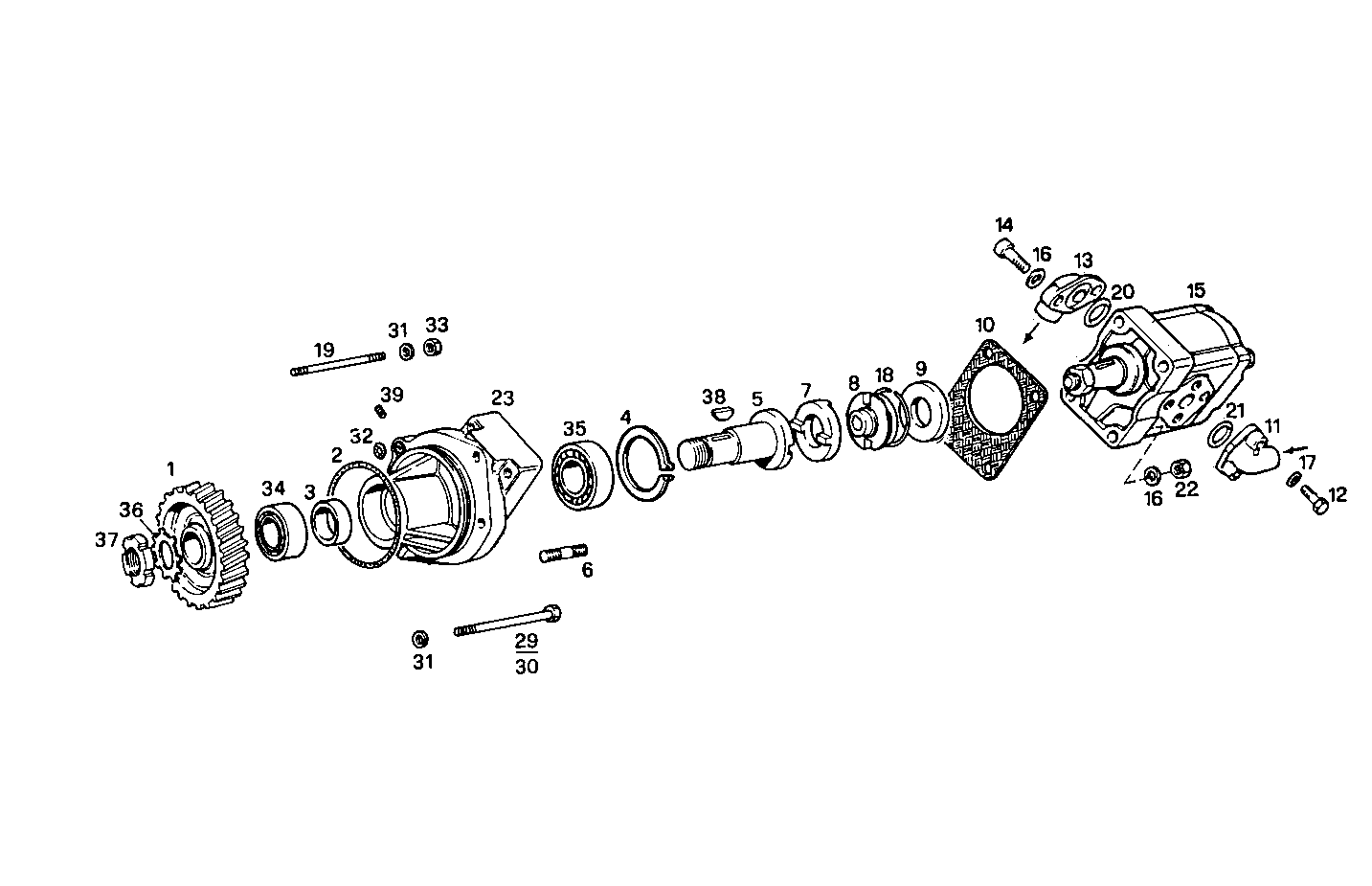

A09040013 FRONT HYDRAULIC PUMP [D 11-1992] [from11-1992]

Iveco/FPT FRONT HYDRAULIC PUMP

Item Part number Description
1 4671828 DRIVE GEAR
2 17291781 O-RING Ø110,72 MM SP=3,53
3 8013559 SPACING BAR
4 16873973 CIRCLIP
5 8013530 SHAFT
6 16745224 STUD M6X12X30
7 4526899 RING
8 4547495 CONNECTOR SLEEVE
9 4677821 RING
10 4863489 FLAT ENGINE GASKET
11 4690715 PIPE SOCKET
12 16605824 HEXAGON BOLT M8X35 MM
13 4670953 PIPE SOCKET
14 16603924 HEXAGON BOLT M6X30 MM
15 5169039 HYDRAULIC PUMP ASSY PLESSEY C31
16 17088474 WASHER Ø6X12 MM
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 4526900 CIRCLIP
19 13546321 STUD M10X25 MM
20 17281781 O-RING Ø15,5 MM SP=2,6 MM
21 17282181 O-RING Ø21,8 MM SP=2,6 MM
22 17037821 HEXAGON NUT M6X1
23 8014748 SUPPORT
29 15972221 SCREW M10X1,25X120
30 15972821 HEXAGON BOLT M10X150 MM
31 17090174 SPRING WASHER Ø10X20 MM
32 17277981 O-RING 1,78x9,25
33 17038221 HEXAGON NUT M10
34 8013560 DRIVE BEARING
35 8013561 DRIVE BEARING
36 8013562 WASHER
37 8013563 FASTENING RING
38 17224220 KEY
39 17436774 THREADED INSERT M6
