8281SRM70.11

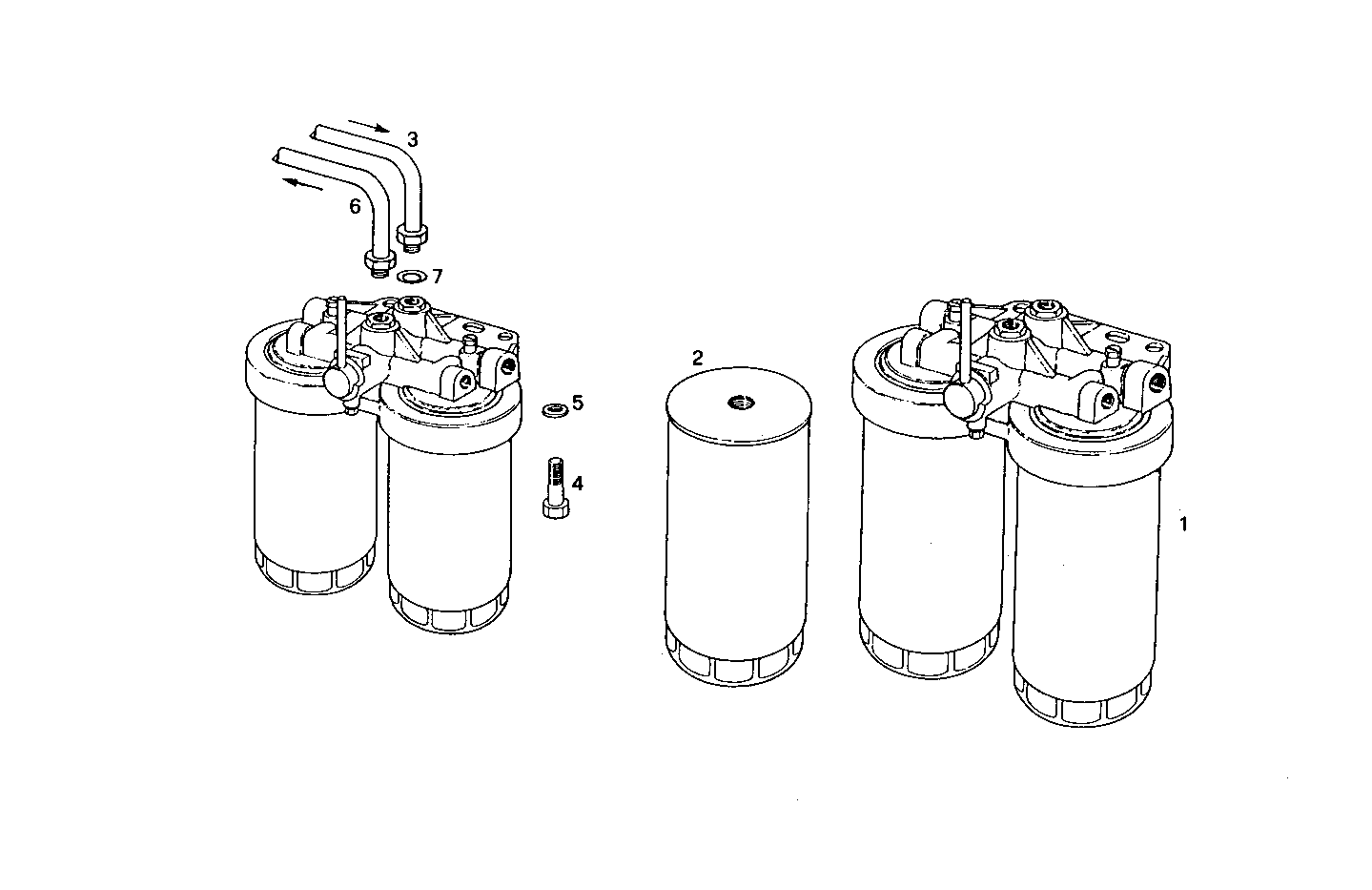

A15010014 DOUBLE FUEL FILTER - removing with engine running

Iveco/FPT DOUBLE FUEL FILTER

Item Part number Description
1 8108315 FUEL FILTER ASSY
2 8106473 FUEL FILTER CARTRIDGE
3 8006377 INJECTION LINE
4 11307021 HEXAGON BOLT M10X40 MM
5 11190579 SPRING WASHER Ø10X20 MM SP=2,3
6 8006378 INJECTION LINE
7 8024646 O-RING Ø6 MM
