8281SRM70.11

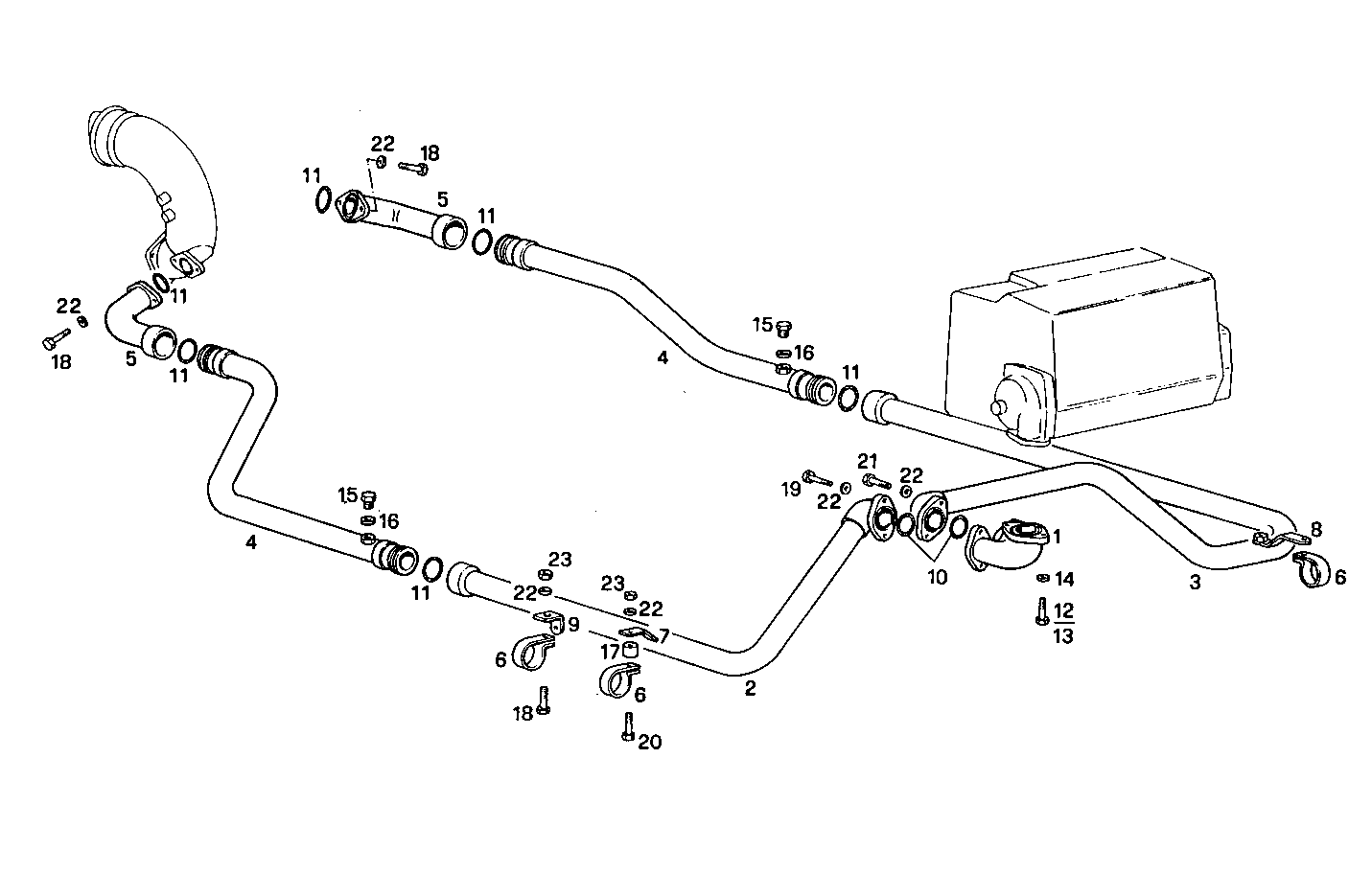

A40050010/02 GAS-WATER MIXER WITH STERN OUTLET

Iveco/FPT GAS-WATER MIXER WITH STERN OUTLET

Item Part number Description
1 8113601 WATER PIPE
2 8113620 WATER PIPE
3 8113621 WATER PIPE
4 8113622 WATER PIPE
5 8113623 WATER PIPE
6 4936741 CLIP
7 8109673 RETAINER
8 8112082 RETAINER
9 8102705 RETAINER
10 17289681 O-RING Ø44 MM SP=3,53 MM
11 17289581 O-RING Ø40,87X3,53 MM
12 15540421 SCREW M12X1,25X30
13 15541221 HEXAGON BOLT M12X1,25X70 MM [up to 565948]
14 17091074 WASHER Ø12X24X2,8 MM
15 11903140 PLUG M10X1,25
16 4858606 GASKET Ø10X14X1 MM
17 17816214 SPACER Ø10X8,5X18 MM
18 16605424 SCREW M8X16 MM (8.8)
19 16605524 HEXAGON BOLT M8X20 MM
20 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 16606224 HEXAGON BOLT M8X55 MM
22 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
23 17037931 HEXAGON NUT M8X1,25
