8281SRM70.11

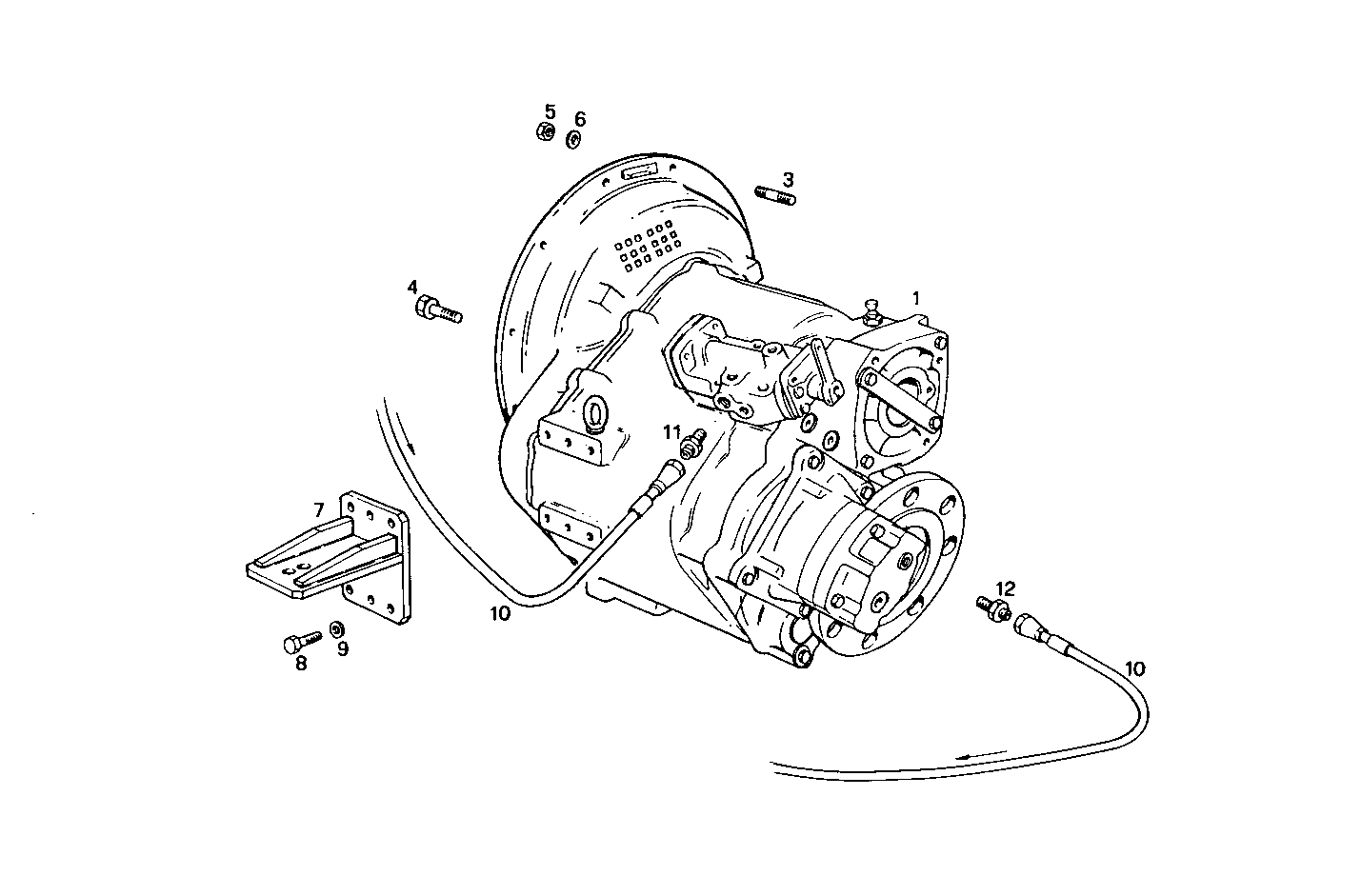

A51170015 MARINE GEAR TWIN DISC MG 5111 A - ratio 1.48:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8011919 | MARINE GEAR 1,48:1 |
| 3 | 13454021 | STUD M10X25X45 MM |
| 4 | 14275521 | SCREW |
| 5 | 17038221 | HEXAGON NUT M10 |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 8110403 | SUPPORT |
| 8 | 4933337 | SCREW |
| 9 | 17092374 | SPRING WASHER Ø16X34X3,6 MM |
| 10 | 8113774 | HOSE |
| 11 | 8113794 | PIPE SOCKET |
| 12 | 8017553 | PIPE SOCKET [up to 05-98] |
