8281SRM70.12

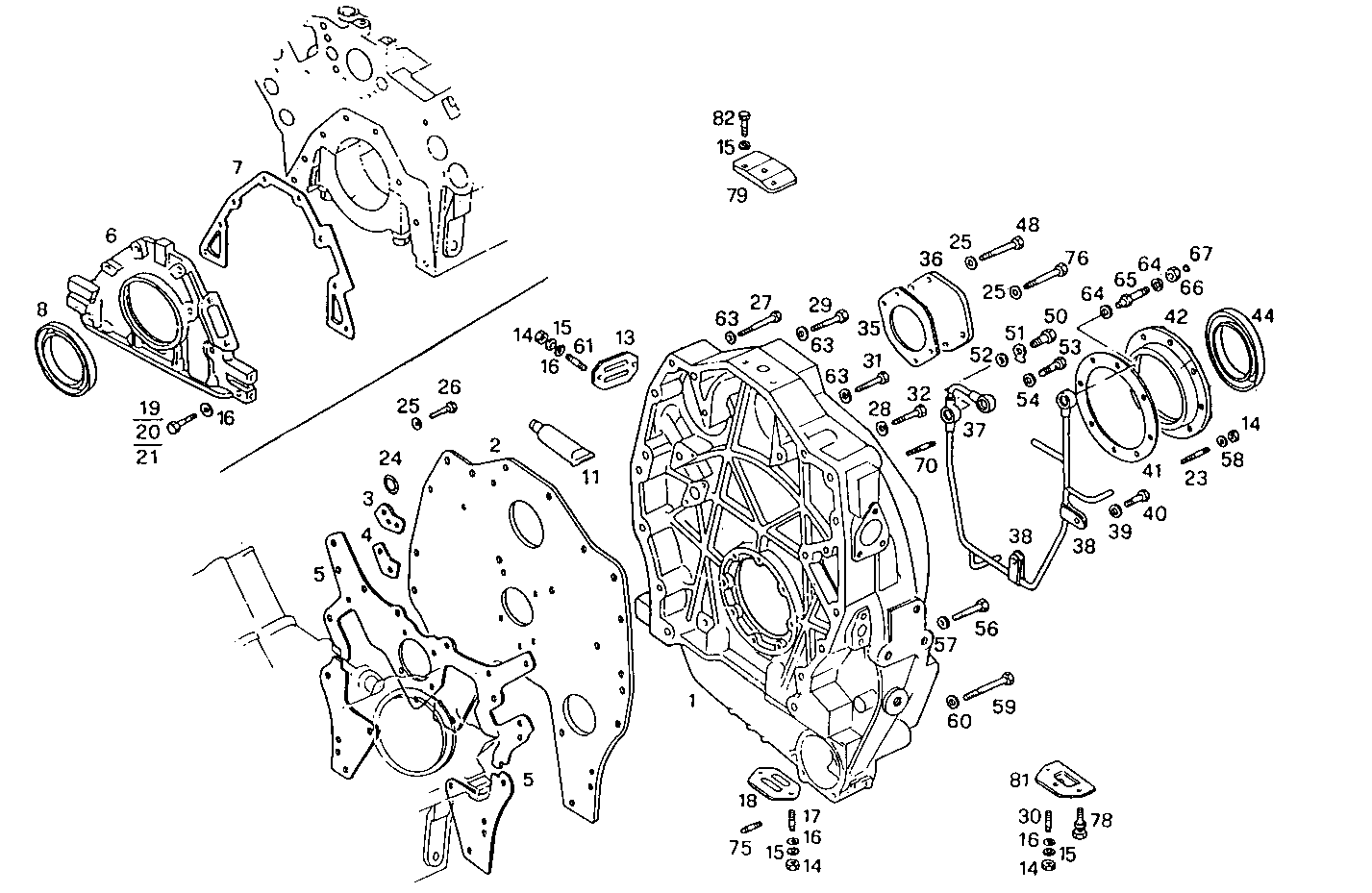

0430.154 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 500313062 REAR C.CASE COVER ASSY
2 500355020 PLATE
3 4831139 PLATE LEFT
4 4831138 PLATE RIGHT
5 4804903 FLAT ENGINE GASKET
6 99440758 FRONT C.CASE COVER ASSY [from 235184]
7 4863506 FLAT ENGINE GASKET
8 98499175 SHAFT SEAL
9 4718861 FLANGE
10 98415923 FLAT ENGINE GASKET
11 1905685 ADHESIVE/STICKER LOCTITE
12 8024753 PLATE
13 4695921 COVER
14 17037931 HEXAGON NUT M8X1,25
15 17089574 WASHER Ø8X16 MM
16 17094914 WASHER 8x16
17 13516521 STUD M8X12 MM
18 4706083 COVER
19 16606024 SCREW M8X45 MM
20 16605924 SCREW M8X40 MM
21 16605824 HEXAGON BOLT M8X35 MM
22 13517221 STUD M8X12X30 MM
23 15343121 STUD
24 14457181 O-RING Ø13,94 MM SP=2,62 MM
25 17090274 WASHER Ø10X20 MM
26 15970730 HEXAGON BOLT M10X25 MM
27 15972521 HEXAGON BOLT M10X135 MM
28 17095314 WASHER Ø12X24 MM [up to ...]
29 15972721 HEXAGON BOLT M10X145 MM
30 13543221 STUD M8X16X18 MM
31 15971821 SCREW M10X1,25X100
32 15541630 HEXAGON BOLT M12X100 MM
33 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
35 4863534 GASKET
36 4729849 COVER
37 4687527 OIL LINE
38 852410 FASTENING BRACKET
39 13550301 WASHER Ø8,15 MM
40 16042921 SCREW M8X10
41 4863494 FLAT ENGINE GASKET
42 4819209 SUPPORT
44 98499177 SHAFT SEAL
48 15970021 HEXAGON BOLT M10X1,25X155 MM
50 4503811 SCREW CONNECTOR M10X1,25
51 852409 LOCKING PLATE Ø10,5 MM
52 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
53 11903717 SCREW CONNECTOR M8
54 10260060 SEAL GASKET Ø8X12X1 MM
56 15543021 HEXAGON BOLT M12X105 MM
57 12646921 WASHER Ø12X28 MM
58 17094911 WASHER Ø8X16X1,6 MM
59 15978030 HEXAGON BOLT M14X105 MM
60 4604279 SPRING WASHER Ø14X32 MM SP=4 MM
61 13546721 STUD M10X1,25X40
63 11198471 SPRING WASHER Ø10,5 MM
64 10298360 SEAL GASKET Ø10X16 MM SP=1 MM
65 4677753 SCREW CONNECTOR
66 16979731 NUT M10X1,25
67 17277681 O-RING Ø5,2 MM SP=1,7 MM
70 17368024 STUD M10X25X30
75 11797421 STUD M14X20X35
76 15972321 HEXAGON BOLT M10X125 MM
78 61315661 HEXAGON BOLT M8X30
79 98494636 COVER
81 99447987 CONNECTING PLATE Ø12 MM
82 16605621 HEXAGON BOLT M8X25 MM
