8281SRM70.12

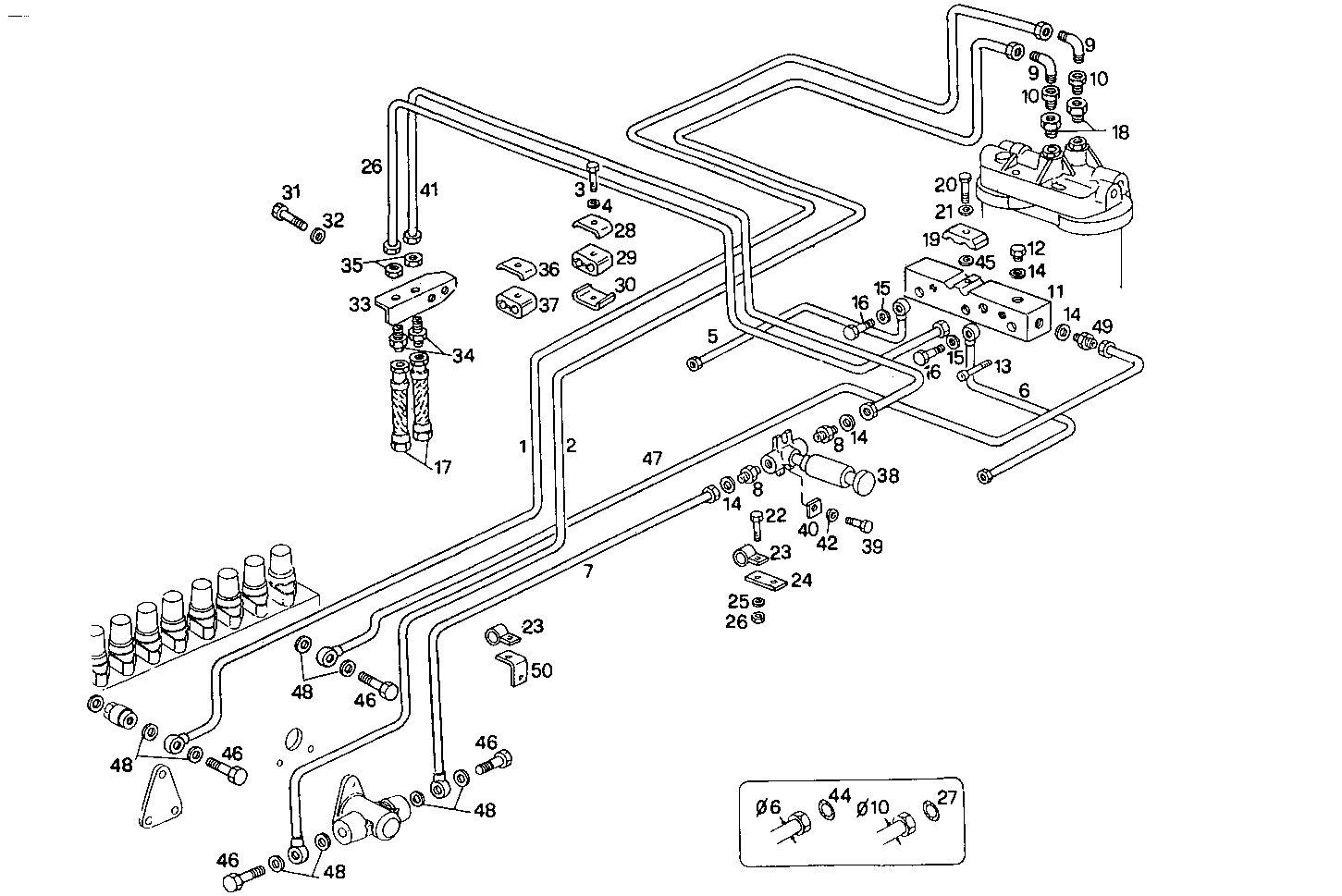

2030.110 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 8030269 FUEL LINE
2 8030268 FUEL LINE
3 16603924 HEXAGON BOLT M6X30 MM
4 17088974 SPRING WASHER Ø6X18X1,4 MM
5 8030272 FUEL LINE RIGHT
6 8030271 FUEL LINE LEFT
7 8030267 FUEL LINE
8 16500214 THREADED UNION M14X1,5/M16X1,5
9 8025927 ELBOW COUPLING
10 8112283 PIPE SOCKET
11 8018178 DISTRIBUTOR
12 16992311 LOCK PLUG M14X1,5
13 16991324 SCREW
14 4858608 SEAL GASKET dia.14x19,5x1,5
15 98474305 WASHER Ø10X17 MM SP=2,3
16 4864079 SCREW CONNECTOR M10X1
17 8112285 FUEL LINE
18 8112284 PIPE SOCKET
19 8010505 CLAMP Ø16 MM
20 16605824 HEXAGON BOLT M8X35 MM
21 17094904 WASHER Ø8X16X1,6 MM
22 16605734 HEXAGON BOLT M8X30 MM
23 17316490 CLIP
24 4929652 RETAINER
25 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
26 8030275 FUEL LINE
27 8024646 O-RING Ø6 MM
28 4644288 CLIP
29 4871771 RUBBER LUG
30 4644289 CLIP
31 15970521 HEXAGON BOLT M10X20 MM
32 17090474 SPRING WASHER Ø10X27 MM SP=2,5
33 8026306 RETAINER
34 8011138 PIPE SOCKET 1/2''/M16X1,5
35 16508811 NUT M16X1,5
36 4641551 CLAMP
37 4761451 RUBBER PAD
38 4797319 HAND PUMP ASSY
39 10902621 SCREW M6X25 MM
40 7300648 LOCKING PLATE
41 8026469 FUEL LINE
42 16665404 WASHER Ø6X12X1,6 MM
43 17037931 HEXAGON NUT M8X1,25
44 8024645 O-RING Ø4 MM
45 8030277 SPACING BAR
46 4864083 SCREW CONNECTOR M14X1,5X30 MM
47 8030270 FUEL LINE
48 98474308 SEAL GASKET Ø14X22 MM
50 8110294 RETAINER
