8281SRM70.12

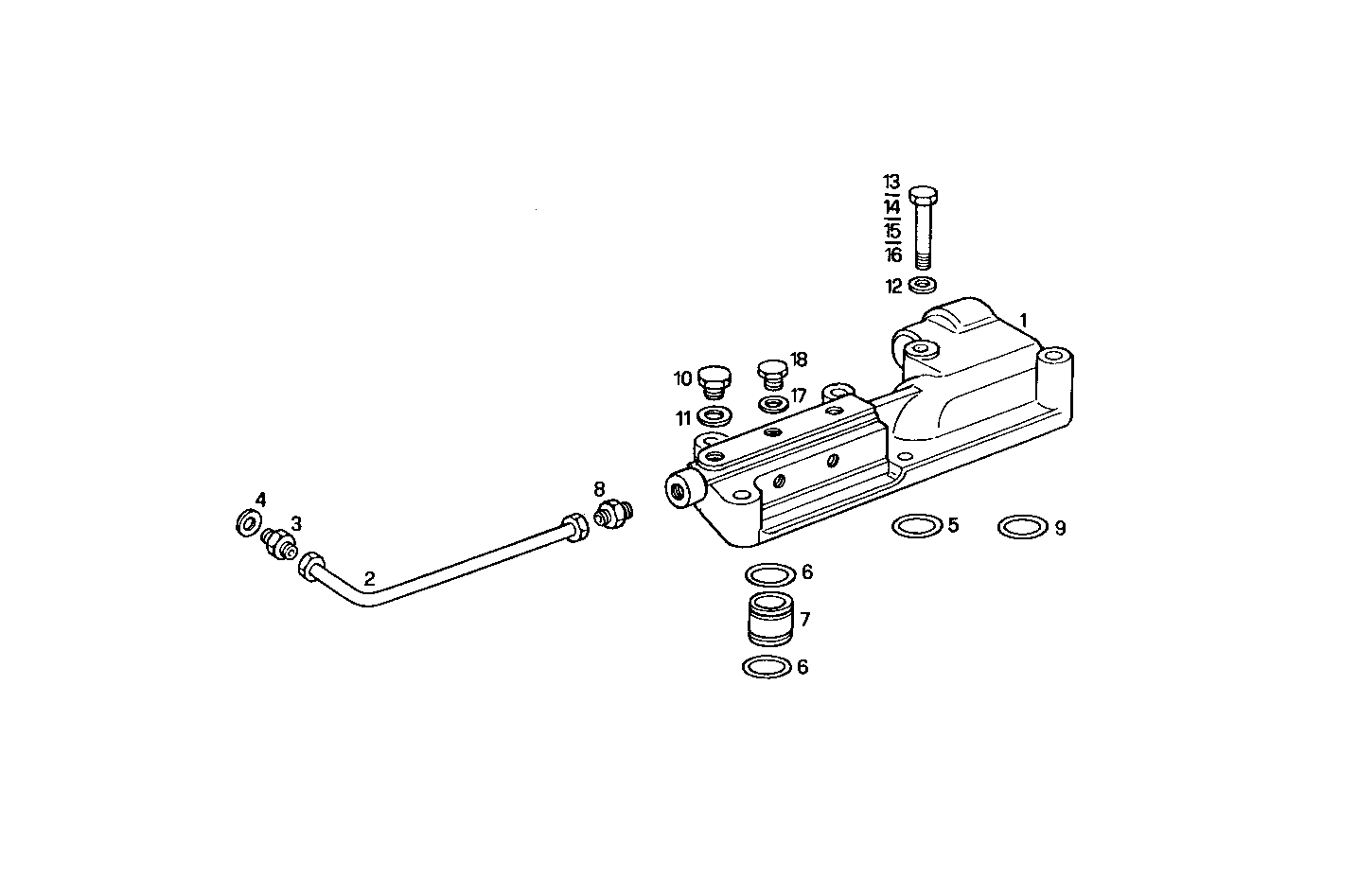

3030.042 OIL PRESSURE VALVE

Iveco/FPT OIL PRESSURE VALVE

Item Part number Description
1 8024521 DISTRIBUTOR
2 8025033 OIL LINE
3 16500214 THREADED UNION M14X1,5/M16X1,5
4 4858608 SEAL GASKET dia.14x19,5x1,5
5 17282781 O-RING Ø31,42 MM SP=2,62 MM
6 17289181 O-RING 3,53x32,92
7 8026313 CONNECTOR SLEEVE
8 8017989 THREADED UNION
9 17282581 O-RING Ø28,24 MM SP=2,62 MM
10 16992211 THREADED PLUG M12X1,5
11 4858607 WASHER Ø12X17 MM SP=1,5 MM
12 17089574 WASHER Ø8X16 MM
13 16606524 HEXAGON BOLT M8X70 MM
14 16605524 HEXAGON BOLT M8X20 MM
15 16606224 HEXAGON BOLT M8X55 MM
16 16606324 HEXAGON BOLT M8X60 MM
17 4858606 GASKET Ø10X14X1 MM
18 16992111 THREADED PLUG M10X1
