8281SRM70.12

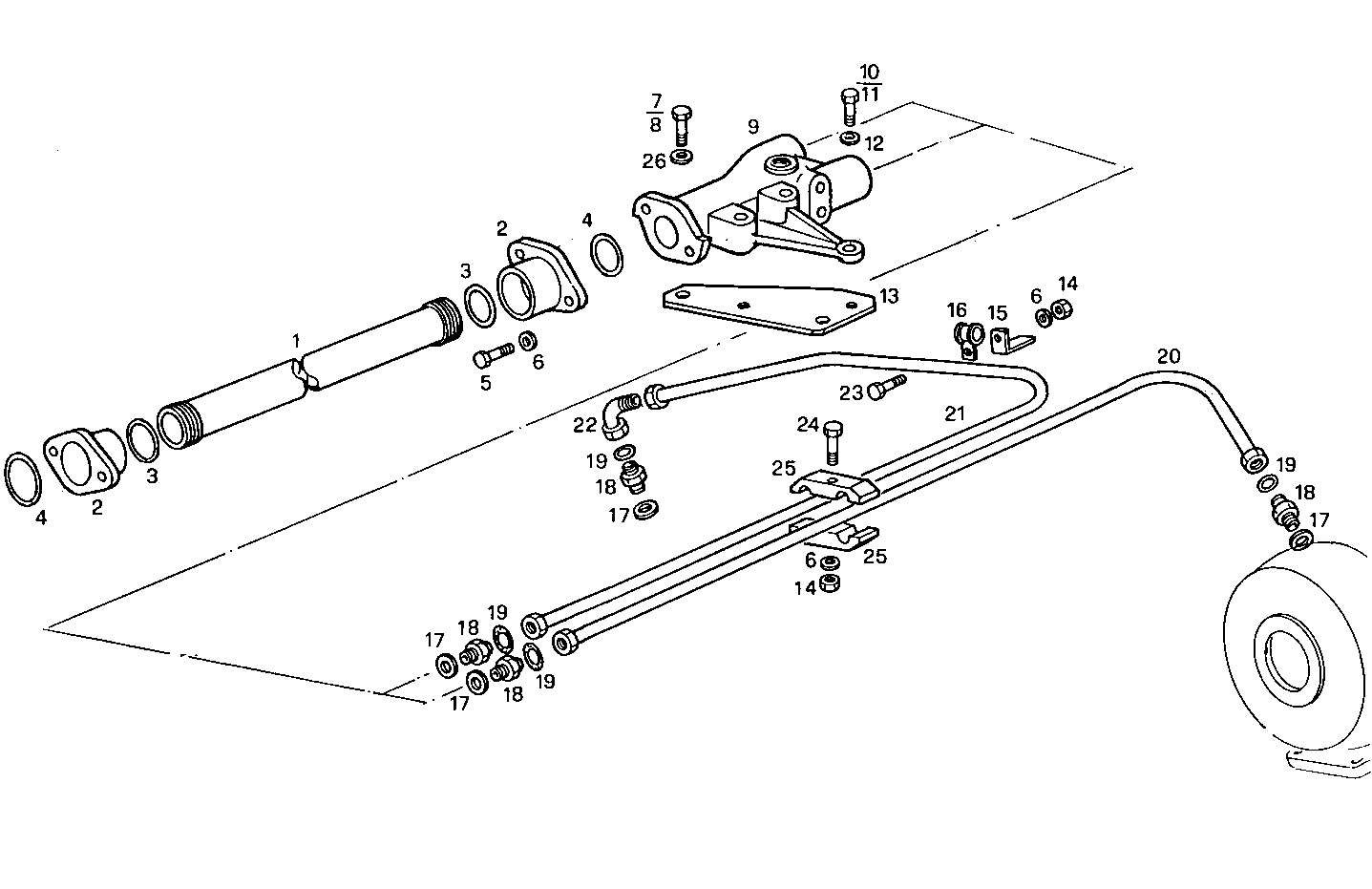

3210.164/03 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8025224 WATER PIPE
2 8020582 FLANGE
3 17283381 O-RING Ø40,94X2,62 MM
4 17289481 O-RING Ø37,69 MM SP=3,53 MM
5 16606124 HEXAGON BOLT M8X50 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 16607624 SCREW M10X25
8 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
9 8020580 WATER PIPE
10 15540321 HEXAGON BOLT M12X1,25X25 MM
11 15541421 HEXAGON BOLT M12X1,25X80 MM
12 17091074 WASHER Ø12X24X2,8 MM
13 8025211 RETAINER
14 17037931 HEXAGON NUT M8X1,25
15 8100819 RETAINER
16 8111710 CLIP
17 98429282 SEAL GASKET Ø26X33 MM SP=1,5 MM
18 8110943 PIPE SOCKET M30X1,5/M25X1,5
19 8024652 O-RING Ø15 MM
20 8025222 WATER PIPE
21 8025223 WATER PIPE
22 16526514 ELBOW COUPLING
23 16605524 HEXAGON BOLT M8X20 MM
24 16605624 HEXAGON BOLT M8X25 MM (8.8)
25 8008215 CLAMP
26 17090174 SPRING WASHER Ø10X20 MM
