8281SRM70.12

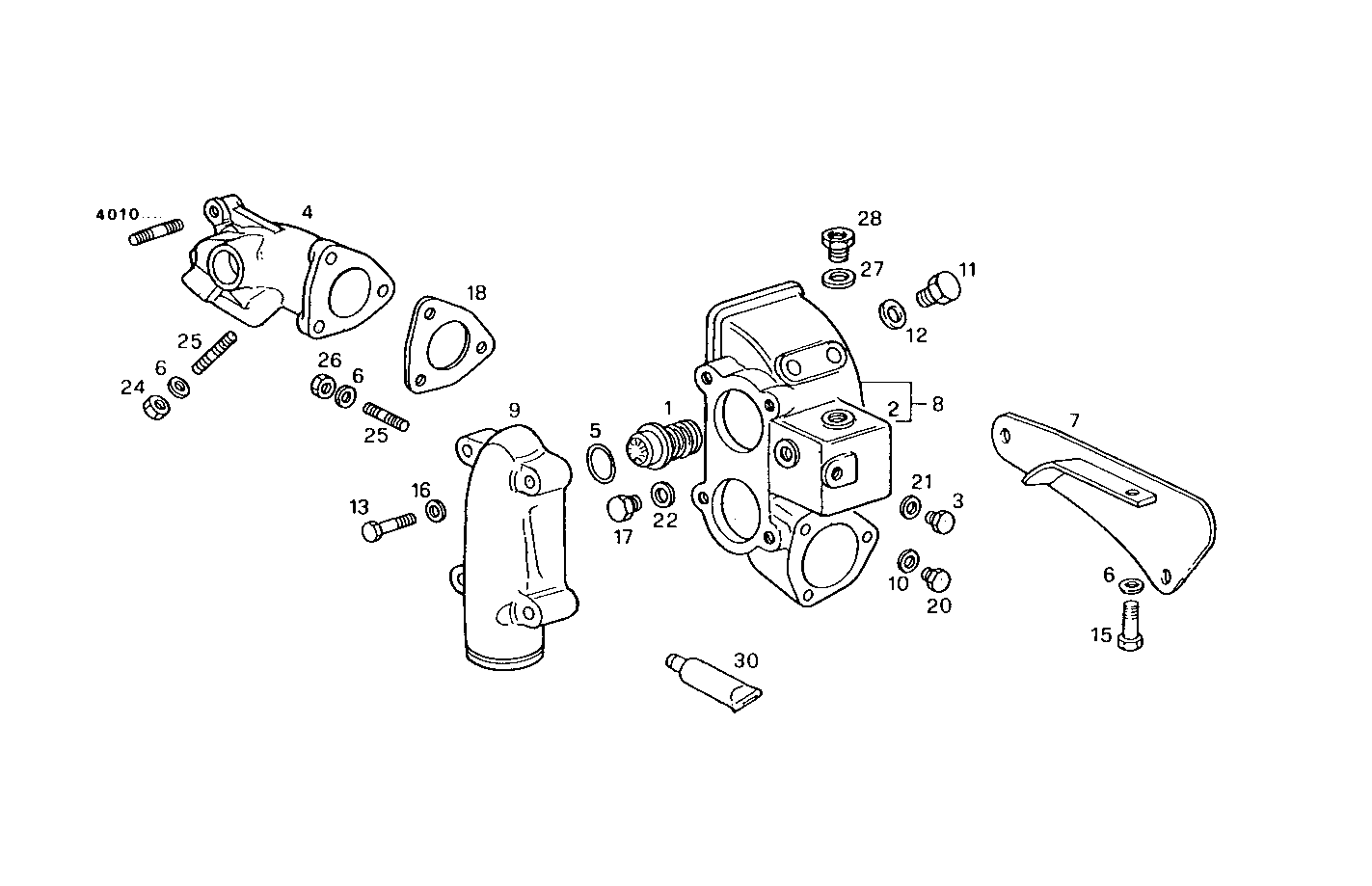

3220.084 THERMOSTAT

Iveco/FPT THERMOSTAT

Item Part number Description
1 98439346 THERMOSTAT
2 8025676 CHOCK
3 11903240 PLUG M12
4 8024503 WATER PIPE
5 98465113 O-RING Ø60 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 4800743 RETAINER
8 8025225 THERMOSTAT BODY
9 8104949 WATER PIPE
10 4858608 SEAL GASKET dia.14x19,5x1,5
11 16992440 THREADED PLUG M16X1,5
12 4858609 WASHER Ø16X22 MM SP=1,5 MM
13 11288021 HEXAGON BOLT M10X1,25X60 MM
15 16605524 HEXAGON BOLT M8X20 MM
16 17090474 SPRING WASHER Ø10X27 MM SP=2,5
17 16992640 PLUG M22X1,5
18 4863488 GASKET
20 16993240 PLUG M14X1,5
21 4858607 WASHER Ø12X17 MM SP=1,5 MM
22 10263460 WASHER Ø22X28X1,5 MM
24 17037931 HEXAGON NUT M8X1,25
25 16729324 STUD M8X12X20 MM
26 16979431 NUT M8
27 98474316 WASHER Ø16X36 MM SP=1,5 MM
28 8012859 PIPE SOCKET
30 1905685 ADHESIVE/STICKER LOCTITE
