8281SRM70.12

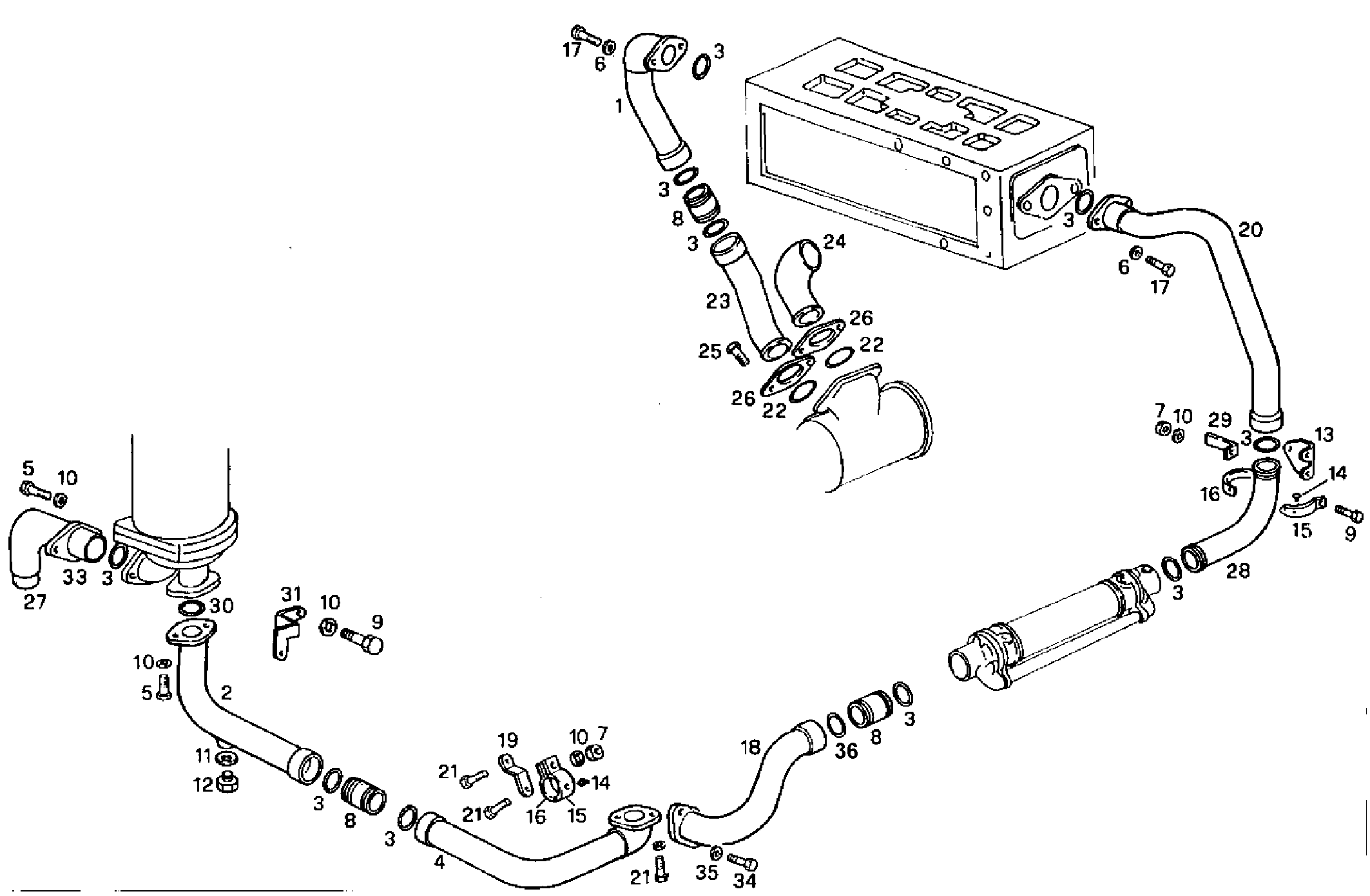

3390.051 SEA WATER LINES

Iveco/FPT SEA WATER LINES

Item Part number Description
1 8111560 WATER PIPE
2 8025090 WATER PIPE
3 17289981 O-RING Ø53,57X3,53 MM
4 8025081 WATER PIPE
5 16605624 HEXAGON BOLT M8X25 MM (8.8)
6 17091071 SPRING WASHER Ø12X24 SP=2,8 MM
7 17037931 HEXAGON NUT M8X1,25
8 8026324 CONNECTOR SLEEVE
9 16605524 HEXAGON BOLT M8X20 MM
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 4858606 GASKET Ø10X14X1 MM
12 16992111 THREADED PLUG M10X1
13 8007518 RETAINER
14 1366290 RUBBER LUG
15 8113295 CLAMP Ø50 MM
16 8113296 CLAMP Ø50 MM
17 16609824 HEXAGON BOLT M12X1,75X25 MM
18 8025363 WATER PIPE
19 8025089 RETAINER
20 8007488 WATER PIPE
21 16690524 SCREW M8X20 MM (8.8)
22 17290281 O-RING Ø63,09 MM SP=3,53 MM
23 8111432 WATER PIPE
24 8111431 WATER PIPE INLET
25 16587121 SCREW
26 8111433 FLANGE
27 8026482 WATER PIPE
28 8027108 WATER PIPE
29 4849425 RETAINER
30 17289881 O-RING Ø50,3 MM SP=3,5 MM
31 8025286 RETAINER
33 8022237 FLANGE
34 14331121 CYLIND-HEAD SCREW M12X30 MM
35 17495034 SPRING WASHER M12X1,75X25
36 17290081 O-RING Ø56,74 MM SP=3,53 MM
