8281SRM70.12

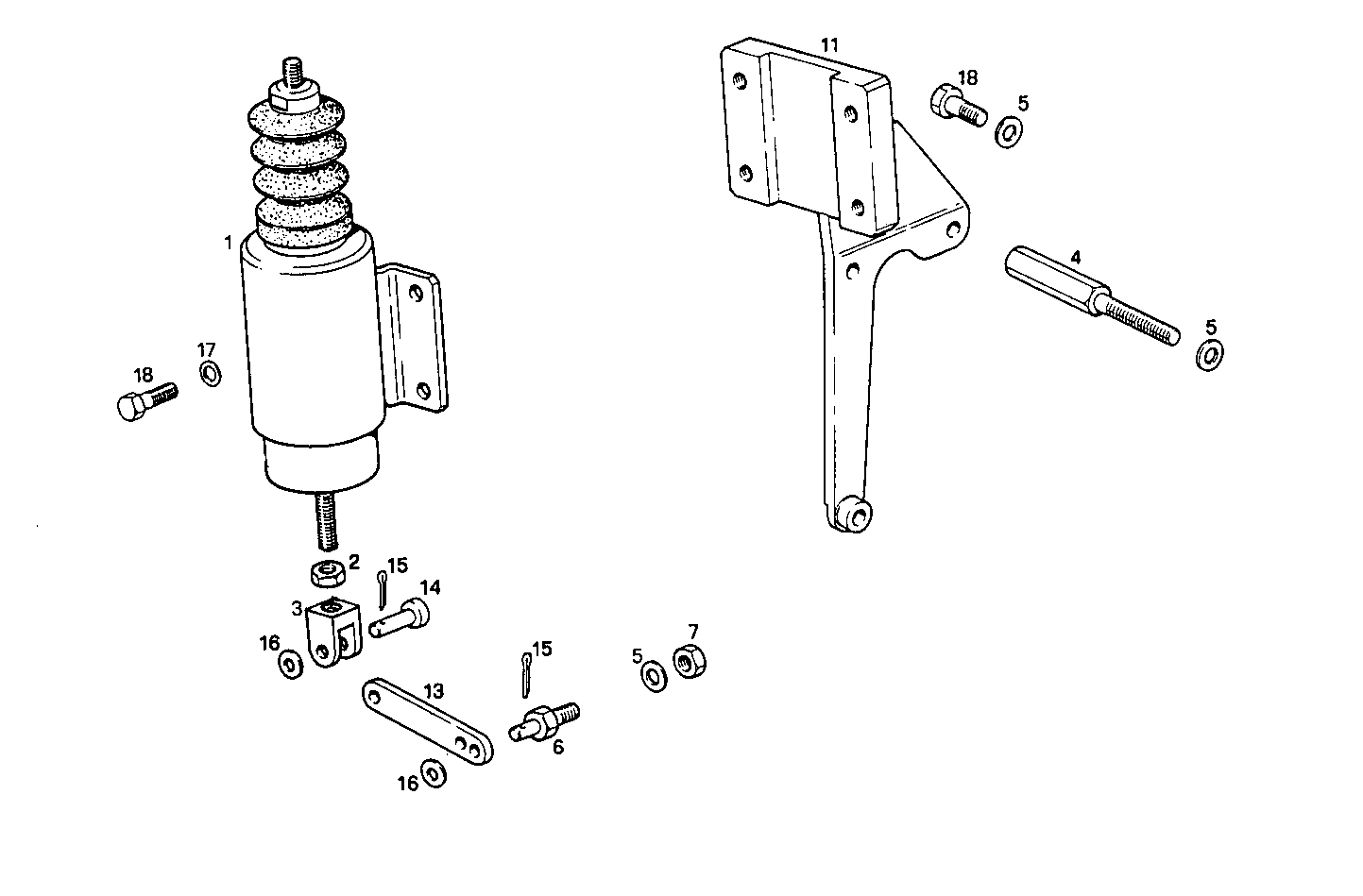

5650.037/01 ELECTRIC STOP ENGINE
| Item | Part number | Description |
|---|---|---|
| 1 | 8105568 | SOLENOID |
| 2 | 15896211 | HEXAGON NUT M6 |
| 3 | 8109159 | CLEVIS M6X40 |
| 4 | 8012958 | SPACING BAR |
| 5 | 17094714 | WASHER Ø6,4X12 MM |
| 6 | 8012959 | PIN |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 11 | 8012956 | SUPPORT |
| 13 | 8012882 | CLEVIS |
| 14 | 17718411 | PIN Ø5 MM |
| 15 | 16852501 | SPLIT PIN Ø1,6X12 MM |
| 16 | 17094504 | WASHER Ø5,3X10 MM |
| 17 | 17088474 | WASHER Ø6X12 MM |
| 18 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
