8281SRM70.30

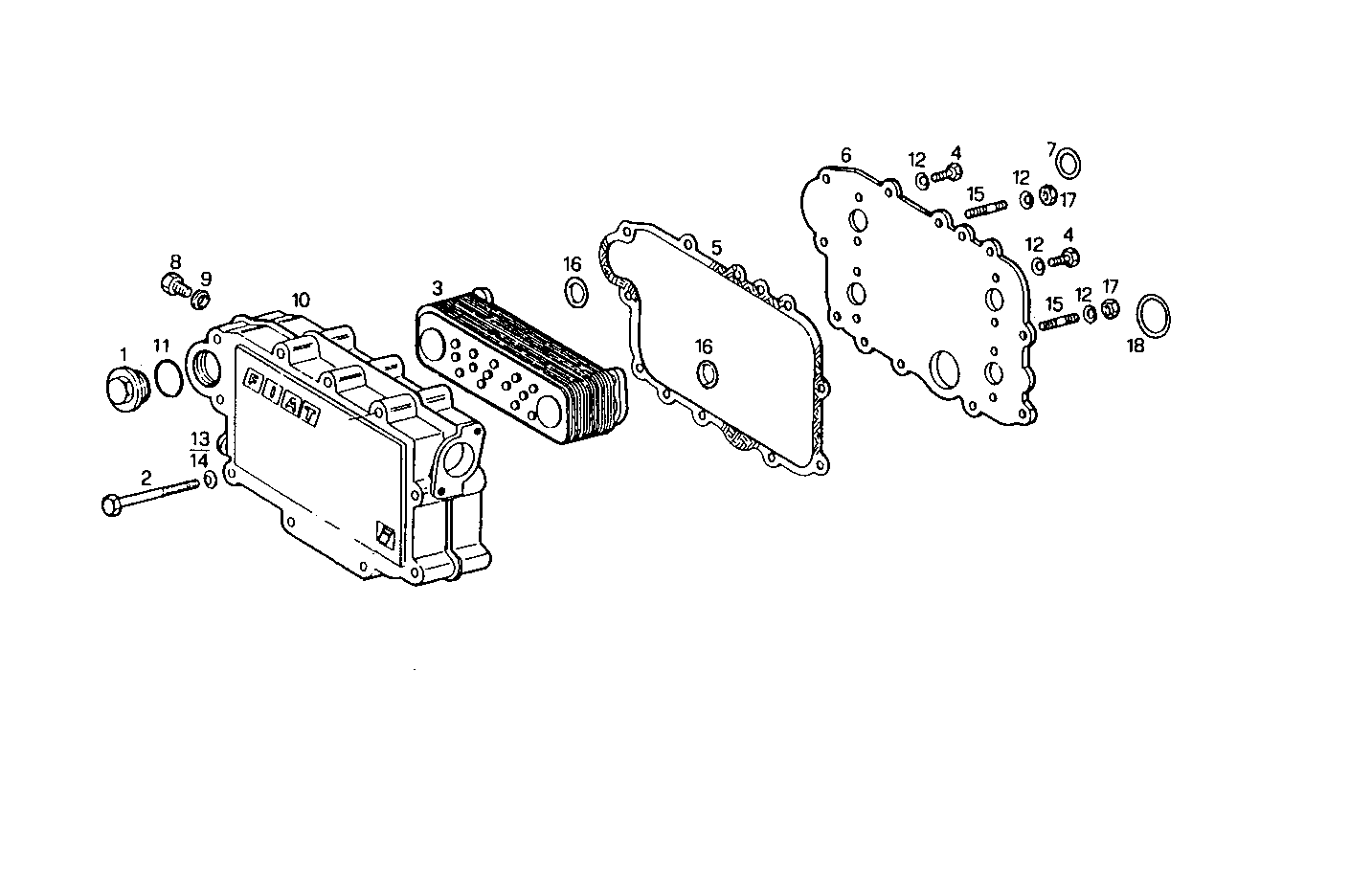

3100.063 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 4651357 THREADED PLUG
2 16045421 HEXAGON BOLT M8X110 MM
3 98415302 OIL COOLER
4 16043221 HEXAGON BOLT M8X16 MM
5 4863522 FLAT ENGINE GASKET
6 4718688 HEAT EXCHANG.COVER
7 17282781 O-RING Ø31,42 MM SP=2,62 MM
8 4753563 PLUG M10X1,5
9 4712006 SEAL GASKET Ø10X15 MM
10 4807761 HEAT EXANGER BODY
11 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
12 11198071 SPRING WASHER Ø8X15 SP=1,4 MM
13 12646721 WASHER Ø8X20 MM
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 13543121 STUD M8X16 MM
16 17283581 O-RING Ø44,12 MM SP=2,62 MM
17 17037931 HEXAGON NUT M8X1,25
18 17283981 O-RING Ø50,4 MM SP=2,6 MM
