8281SRM70.30

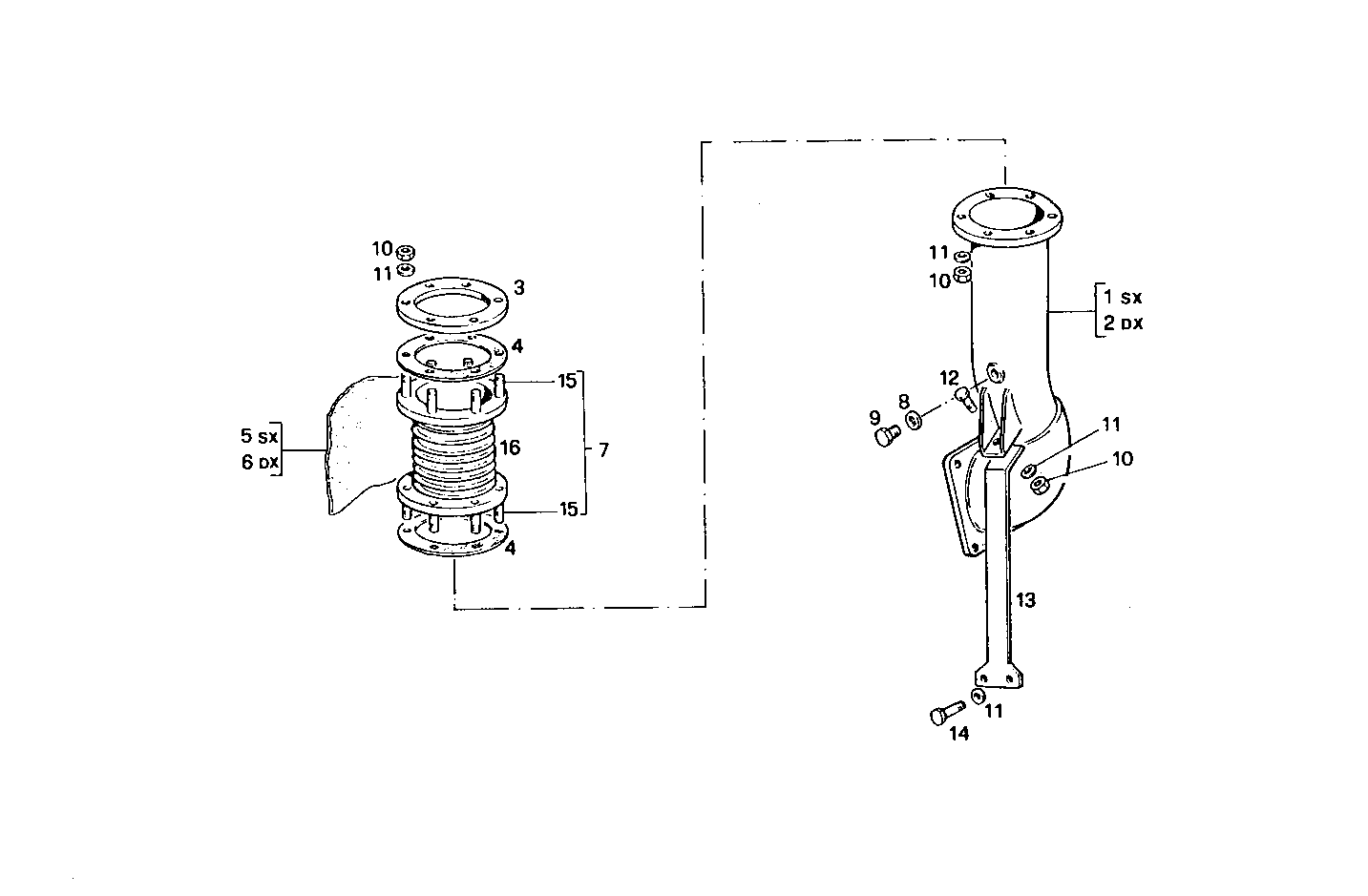

A40030009 UPWARD REAR EXHAUST ELBOW
| Item | Part number | Description |
|---|---|---|
| 1 | 8110580 | EXHAUST ELBOW LEFT |
| 2 | 8110581 | EXHAUST ELBOW RIGHT |
| 3 | 8103591 | FLANGE |
| 4 | 8009600 | GASKET |
| 5 | 8104111 | PROTECTION LEFT |
| 6 | 8104112 | PROTECTION RIGHT |
| 7 | 8024909 | EXHAUST BELLOWS ASSY |
| 8 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 9 | 16992211 | THREADED PLUG M12X1,5 |
| 10 | 17038121 | HEXAGON NUT M10 |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 13 | 8106127 | RETAINER |
| 14 | 15970621 | SCREW M10X1,25X22 |
| 15 | 16731234 | STUD M10X1,5X25 |
| 16 | 8024880 | EXHAUST BELLOWS |
