8291SRG75.10A500

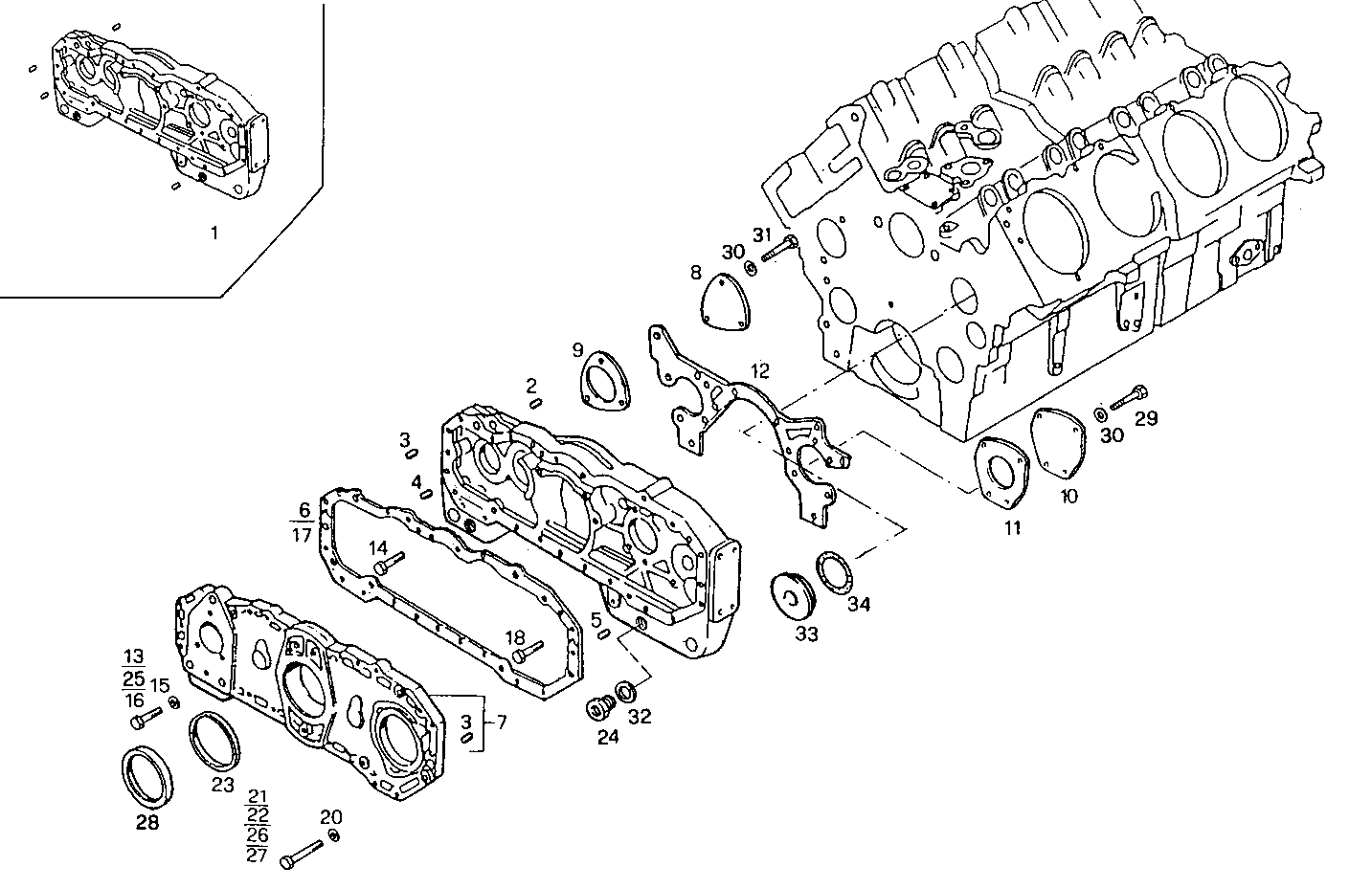

0430.161/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 8012832 TIMINGGEAR HOUSIN ASSY
2 17873271 THREADED INSERT M8
3 17873371 THREADED INSERT M10X1,5
4 17873971 THREADED INSERT M16
5 17873471 THREADED INSERT
6 8012836 GASKET TOP
7 8012833 COVER ASSY
8 8009678 COVER
9 8009679 GASKET
10 4695673 COVER
11 4863515 FLAT ENGINE GASKET
12 8012838 GASKET
13 16605734 HEXAGON BOLT M8X30 MM
14 16690724 CYLIND-HEAD SCREW M8X30 MM
15 17094914 WASHER 8x16
16 16606924 SCREW M8X110
17 8012837 GASKET BOTTOM
18 14307521 CYLIND-HEAD SCREW M10X1,25X30 MM
20 17095104 WASHER Ø10X21X2 MM
21 15971821 SCREW M10X1,25X100
22 15972221 SCREW M10X1,25X120
23 4882668 OIL RETAINER
24 8012859 PIPE SOCKET
25 16605924 SCREW M8X40 MM
26 15972021 HEXAGON BOLT M10X1,25X110 MM
27 16608124 HEXAGON BOLT M10X1,5X50 MM
28 40101481 OIL RETAINER
29 16607924 HEXAGON BOLT M10X1,5X40 MM
30 17090174 SPRING WASHER Ø10X20 MM
31 16607624 SCREW M10X25
32 98429282 SEAL GASKET Ø26X33 MM SP=1,5 MM
33 8015440 COVER
34 17292381 O-RING Ø129,8 MM SP=3,53 MM
